5 Using the KD

5.1.10 If a Communication Error Occurs

If a communication error occurs, the error screen shown in Figure 5-11 appears. In that

case, click the “OK” button and check the following two points. When you finished

checking, restart the KD.

Check1: Is the power source supply selector on the USB Monitor Board set to USB

side?

Check2: Are the USB Cable and Flat Cable are firmly inserted into position?

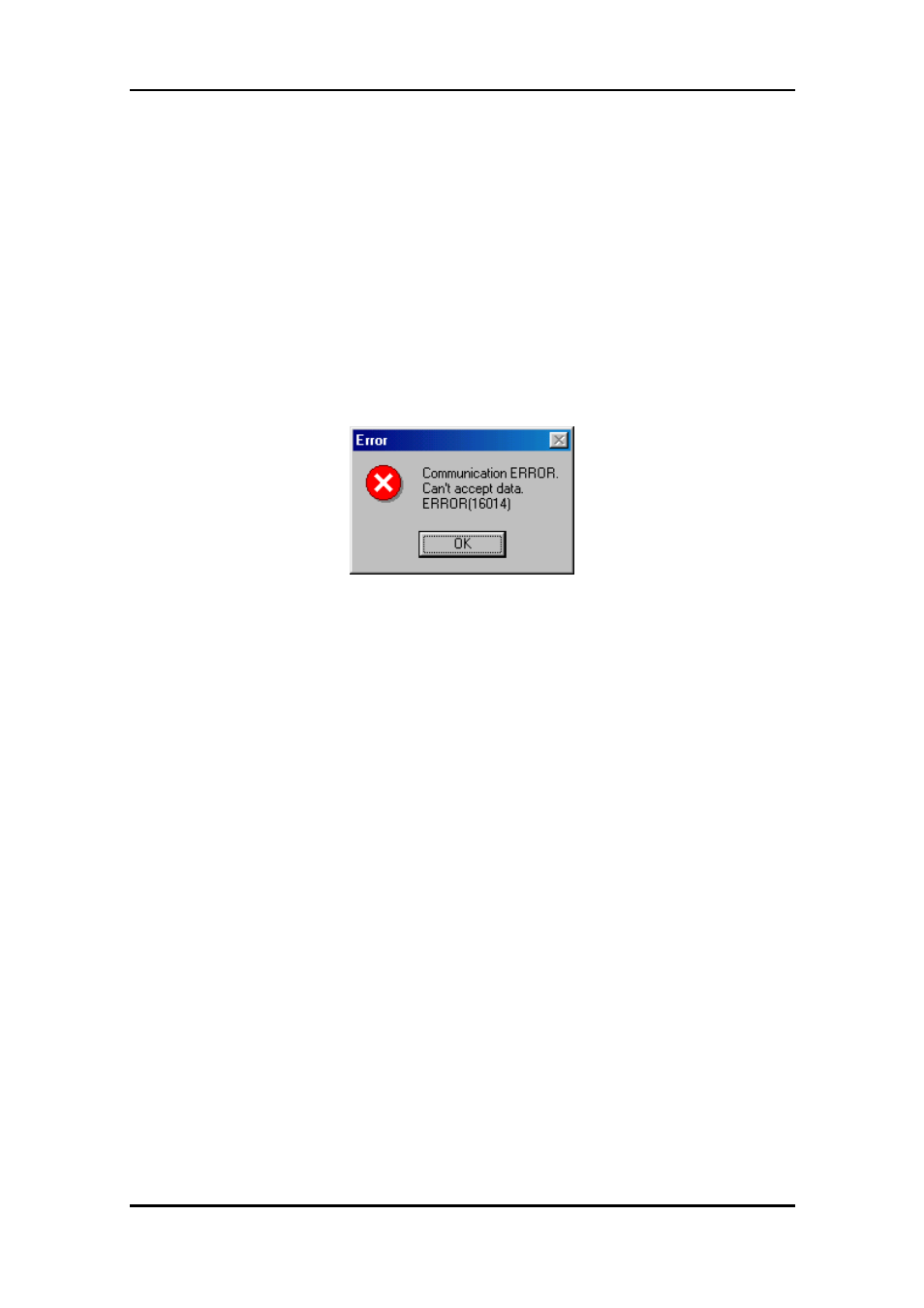

Figure 5-11 Communication Error screen

5.1.11 Error Except a Communication Error Occurs

If an error except a communication error occurs, refer to the KD online help.

5.1.12 Operation Method

When operating except specifying above, refer to the KD online help.
