5 Using the KD
(b) Then an example to which the Emulation Memory does not overlap the User
Program is shown. In this example, the User Program is allocated from F00000h and
the Emulation Memory is allocated from E00000h (set E0 to the bank address).
Since the Emulation Memory does not overlap the User Program, contents of the
User Program and assemble codes are matched.

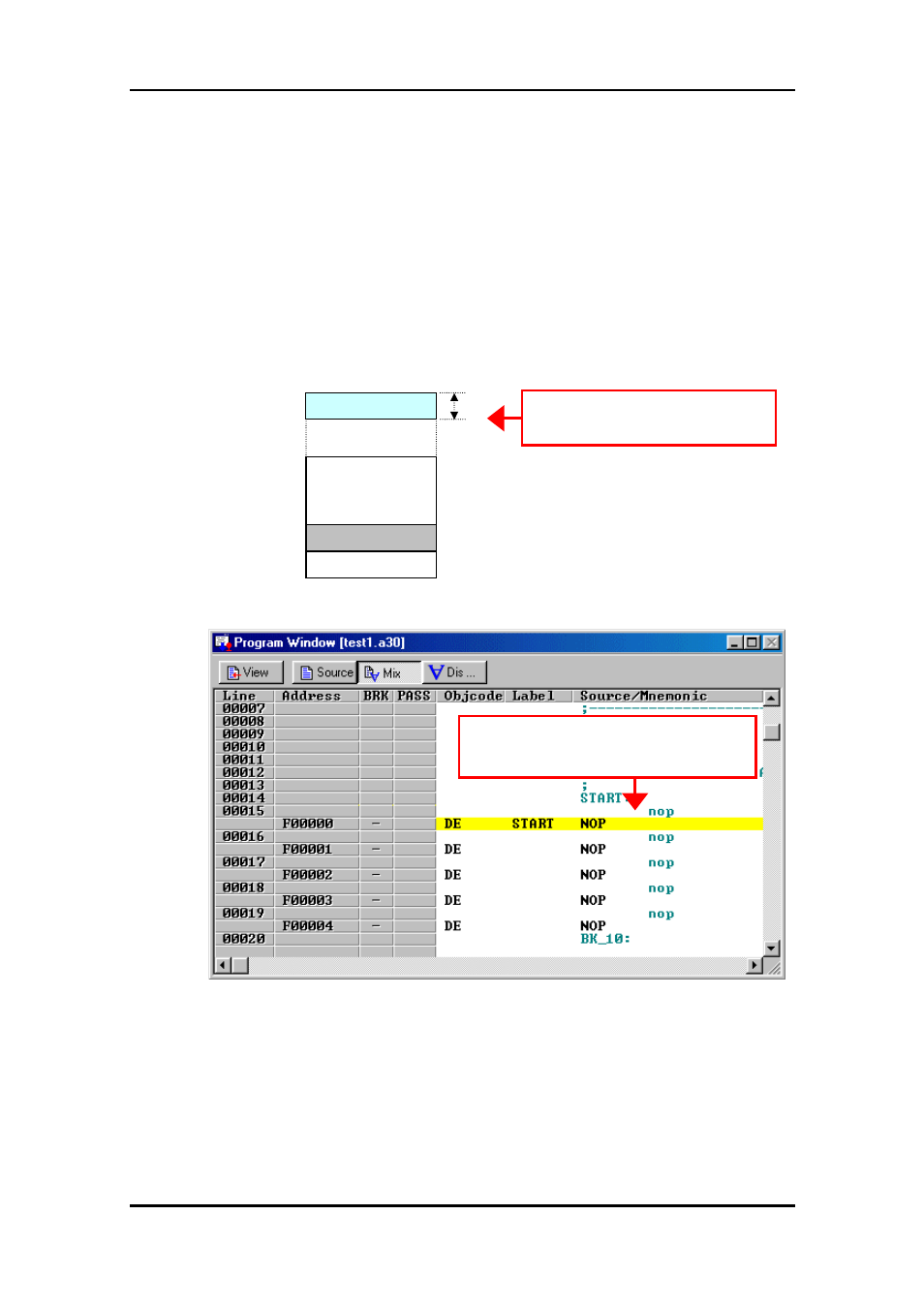

Bank Address
64KB Emulation Memory
Fixed Vector Table
Monitor Area
User Area
The Emulation Memory does not
overlap the user program.
E0 0000h
E10000h
F00000h
FFF900h
FFFEFFh
FFFFFFh
The user program code (NOP) and
assemble code (NOP) are matched.
Note: The setting contents on the Emem screen will be continued to the upcoming
KD3083. Therefore, it is not necessary to set evry time the KD3083 starts.
