Renesas M16C FAMILY User Manual

Page 49

4 Using the FoUSB

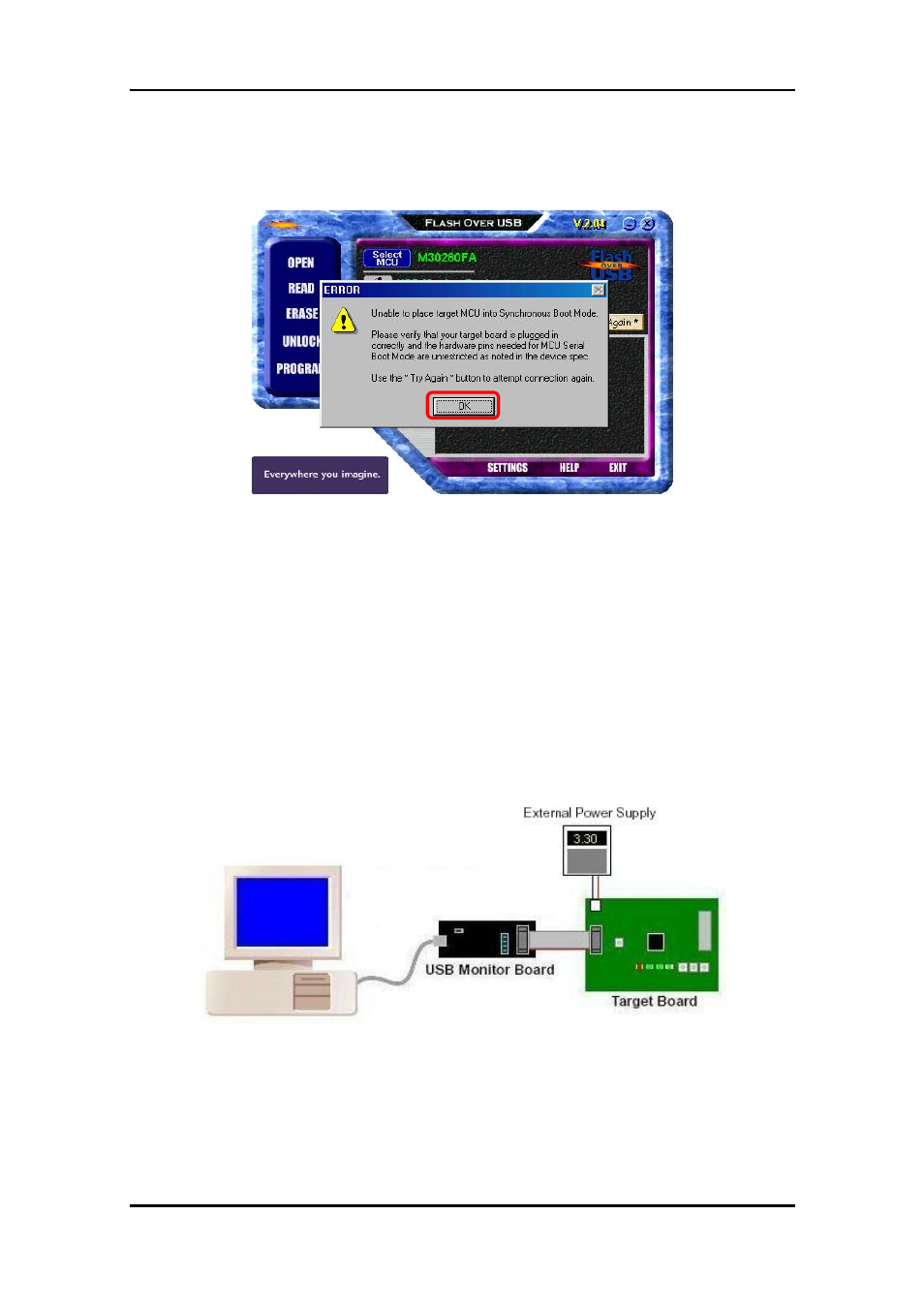

c) Start FoUSB. At this time, although the following error screen is displayed, ignore the

error and click the button.

Figure 4-25 Error screen

d) Click the “Select MCU” button and download the firmware to the USB Monitor Board.

(Refer to 2) to 5) of this section for details)

e) When the download of the firmware is completed, Figure 4-25 will be displayed again.

Ignore the error and click the button. Finish FoUSB.

f) Remove the USB Monitor Board from host computer (PC), and set the power source

supply selector (S1: Power Mode) on the USB Monitor Board to the

TARGET

side.

(Refer to Figure 4-3)

g) Connect the PC, USB Monitor Board and Target Board.

h) Input 3.3V to the Target Board and USB Monitor Board from the external power.

FoUSB (KD30/KD3083 are included) can be used in 3.3V operation with the above

procedure.
