7 Appendix

7.2 Installation of a USB Driver, and recognition of USB Monitor

Board (Manual setup)

7.2.1 For USBMON Driver

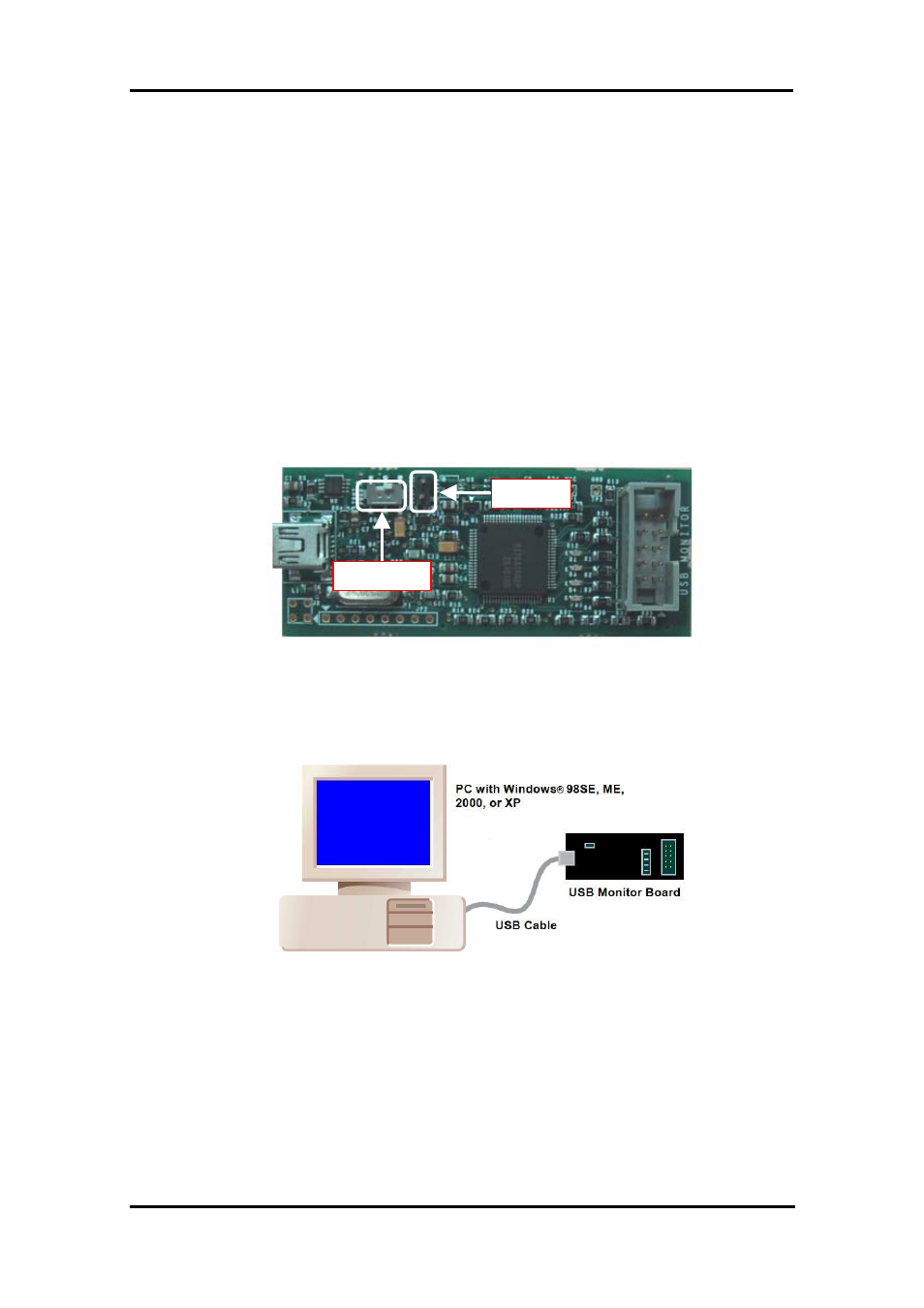

1) Remove the cover of USB Monitor Board and make a USB Monitor Board (Board) the

following setup, before installing USBMON Driver. If a setup is completed, attach a cover in a

USB Monitor Board (Board).

Power Source Supply Selector (S1: Power Mode): USB side

MCU Mode Pin (JP1: MCU Mode): Open

Open

USB side

2) Connect the USB Monitor Board included with package to the USB port of your host

computer (PC). The Power indicator (D1: Power) of USB Monitor Board lights, and a Status

indicator (D4: Status) blinks.

3) Windows system recognizes new hardware. The following installation methods are the

examples which used Windows 98SE. Although the installation methods difer a little for every

operating system, it is installable by the almost same operation.

88
