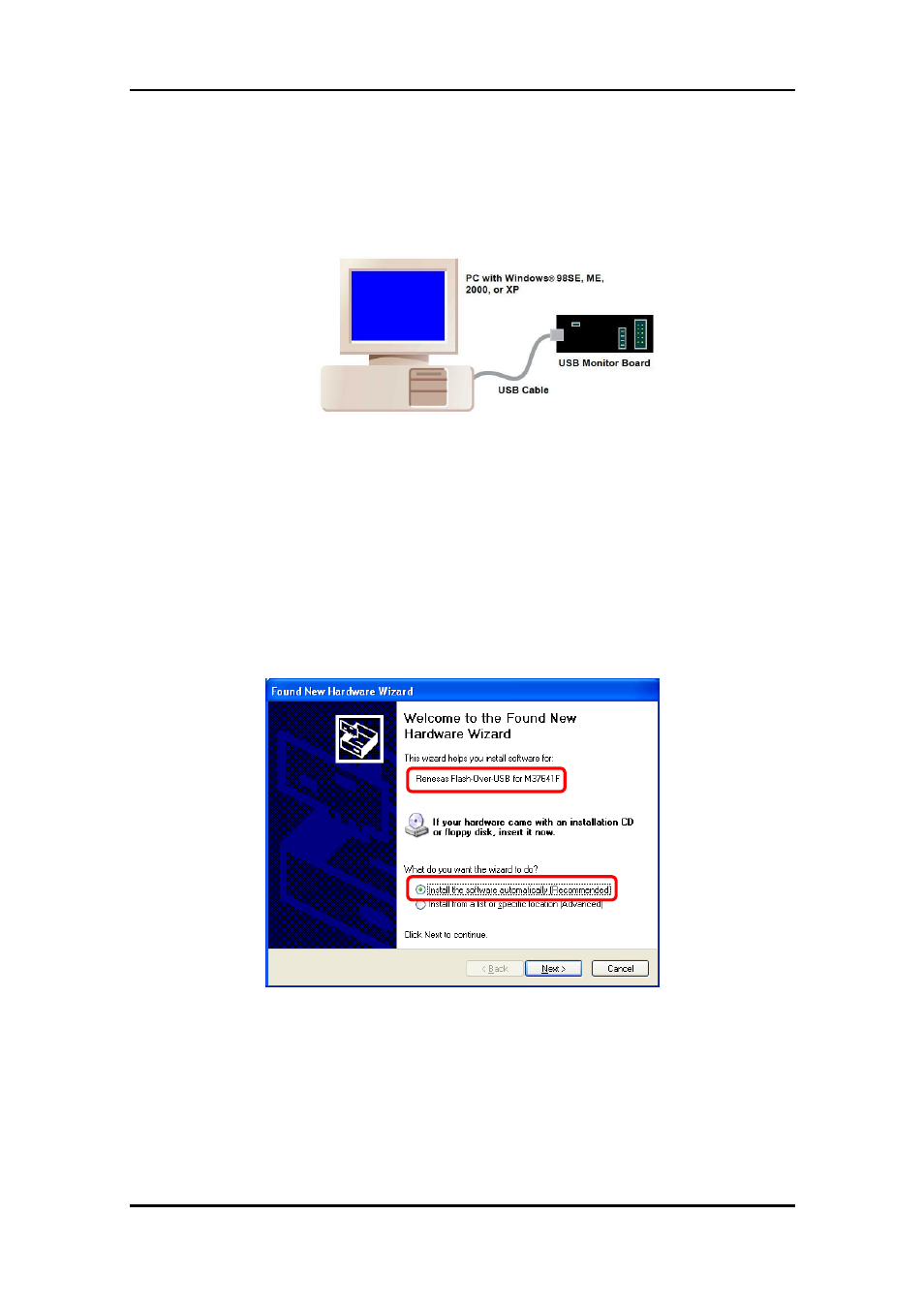

Renesas M16C FAMILY User Manual
Page 24
3 Installing
2) Connect the USB Monitor Board included with the package to the USB port of PC. The Power
indicator (D1: Power) of USB Monitor Board lights.
Figure 3-4 USB Monitor Board connectivity
3) When an operating system is
WIndows 98SE/ME/2000
, Windows system detect USB Driver
automatically and recognizes USB Monitor Board. Recognition of USB Monitor Board for
USBMON Driver is completion.
Please skip to 7).
4) When an operating system is Windows XP, Windows system displays the Found New
Hardware Wizard screen. Then, choose “Install the software automatically” and click the
button.
21
