4 Using the FoUSB

4.1.6 Monitor Information

1) Monitor Firmware

The version of the firmware currently written in the USB Monitor Board is indicated

here.

2) MMI Loaded

The name of the firmware currently written in the USB Monitor Board is indicated here.

3) Serial Boot Code

The boot version written in the MCU is indicated here.

4.1.7 Detailed File Information

1) DETAILS button

Shows details of the downloaded data (program size, ID code, blocks and sections

used).

2) SECTIONS button

Shows the address area in which the downloaded data are written.

3) MAP button

Shows the block area in which the downloaded data are written.

4.1.8 Details of Main Button 2

1) SETTINGS button

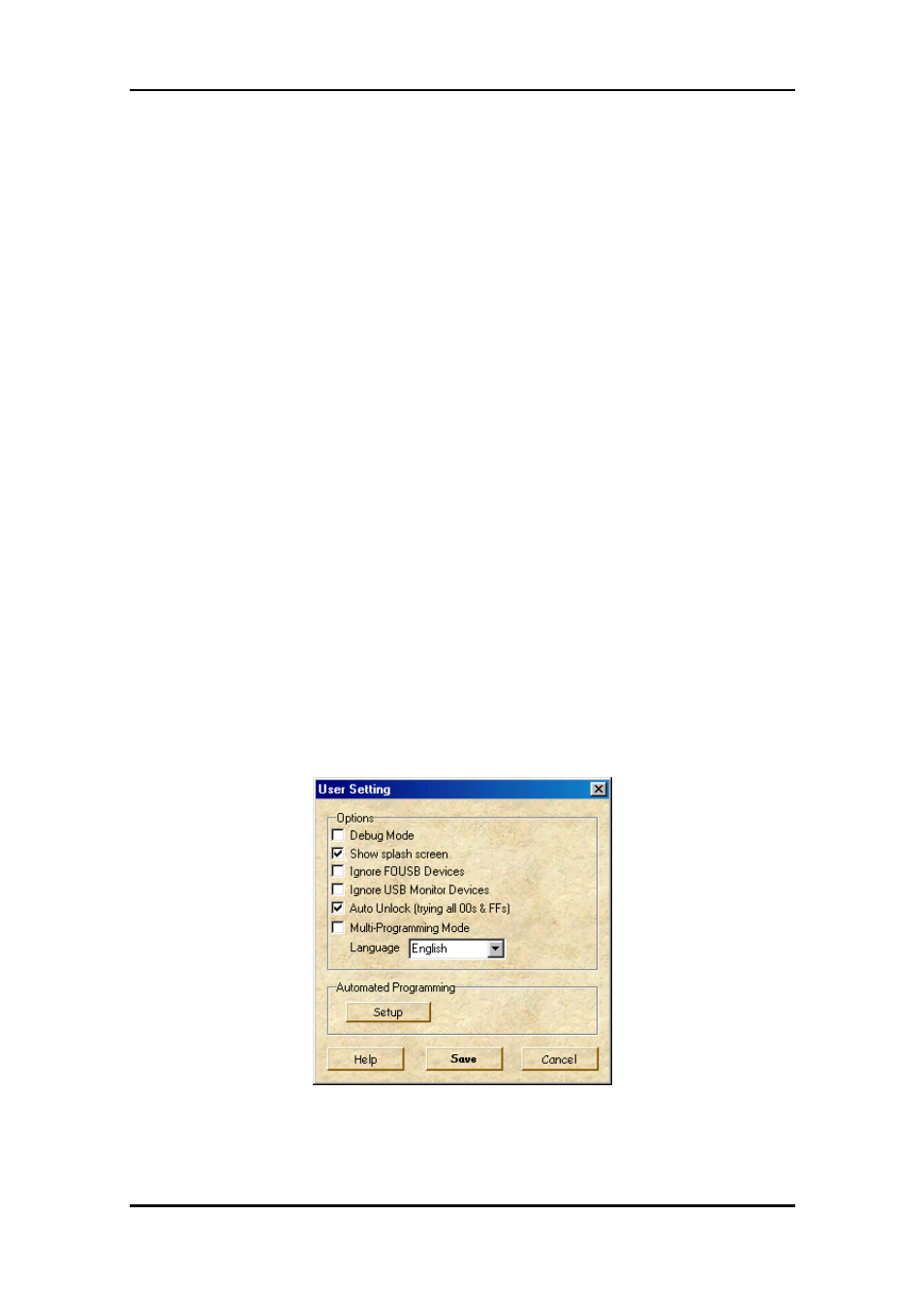

When you click the “SETTINGS” button, the screen shown in Figure 4-26 appears,

allowing you to customize FoUSB.

Figure 4-26 User Setteing screen
