O P E R A T I O N S
Testing Outputs
350-7951 Quadra User’s Guide 31
.
. .
.
.
6. Review the list in detail, and note the timing parameters that most
closely match the specifications of your monitor.
7. Load the timing parameters for the selected output. Type:
OPTMLOAD Enter
8. Verify that the parameters are loaded by querying the command and
the output. Type:
OPTM Enter
9. Repeat from step 1 to set up additional outputs.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
T E S T I N G O U T P U T S
This section provides instructions for using the “ TestPattern ” command. For a
selected output channel, you can enable a variety of internal test patterns and
quickly check your Quadra’s outputs.
Use the following steps to test each output:
1. Ensure that the display(s) that you want to test are connected to
Quadra outputs, and that their output formats have been set as outlined
in the “
Setting Output Format ” section.
2. Request help text for the command. Type:
H TP Enter
This action displays the command’s parameters and variables.

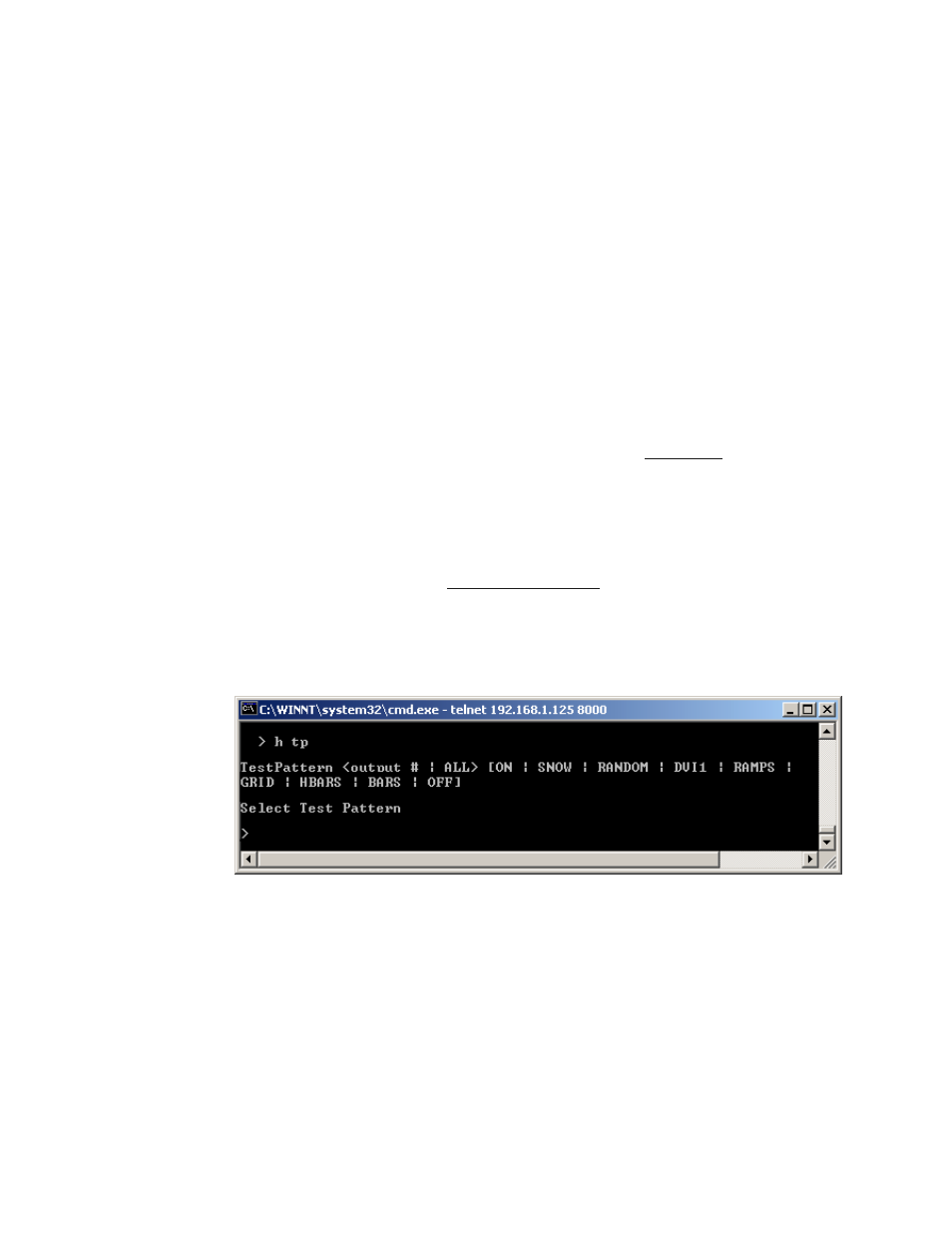

Figure 3-4. Help Text — Test Pattern Command
3. To test a single output, type:
TP [test pattern] Enter
S
Example: To display color bars on output 2, type:
TP 2 BARS Enter
4. To test all outputs, type:
TP ALL [test pattern] Enter
S
Example: To display the grid on all outputs, type:
