C O M M U N I C A T I O N S S E T U P
Launching a Hyperterminal Window
350-7951 Quadra User’s Guide 92
.
. .
.
.
4. Click OK to display the COM Properties Dialog.

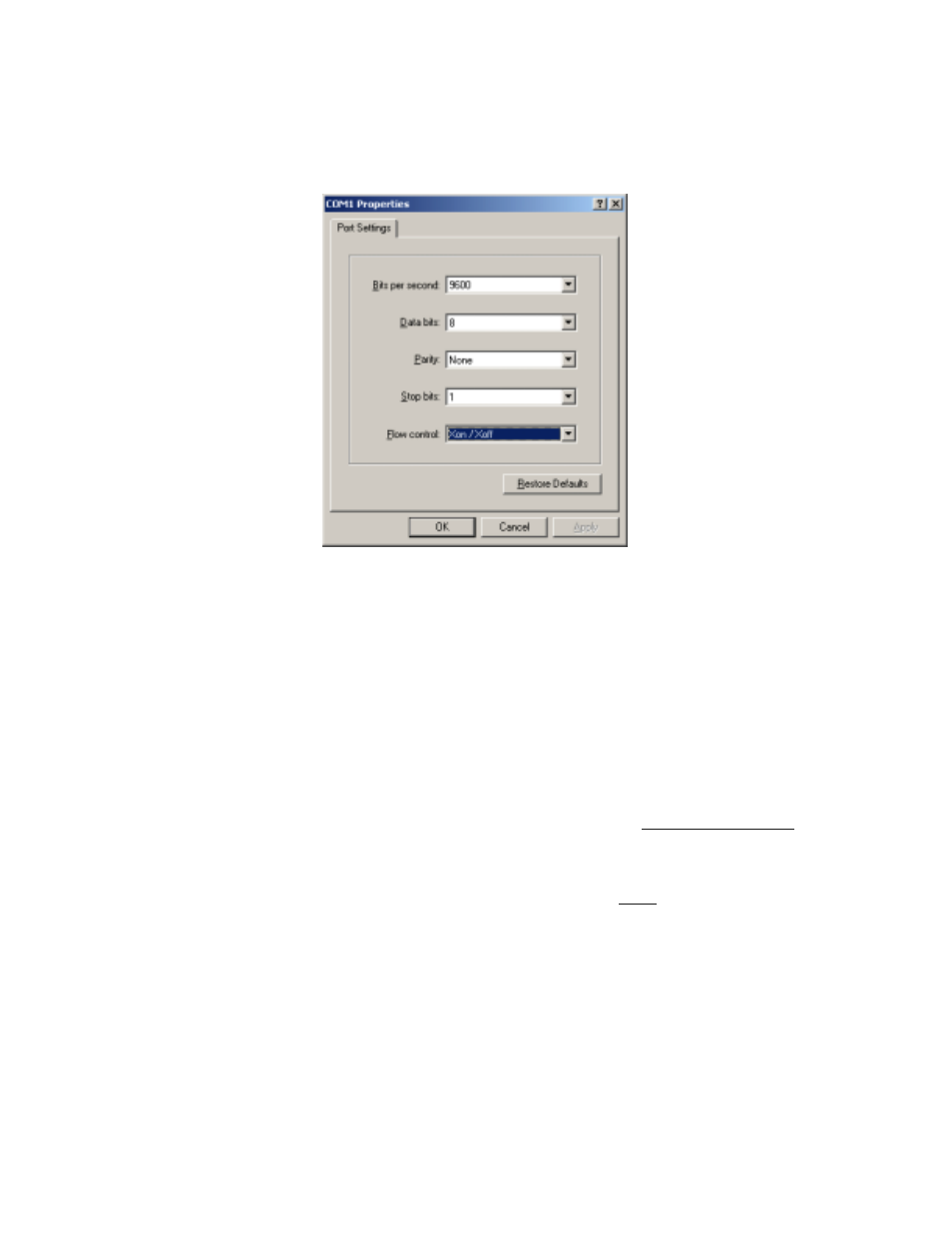

Figure B-4. COM Properties Dialog (Sample)
5. Configure your PC to match Quadra’s pre-configured factory settings,
as follows:
~ Bits per second (baud): 9600
~ Data bits: 8
~ Parity: None
~ Stop bits: 1
~ Flow control: XOn / XOff
Quadra can be configured to operate at baud rates from 9600 baud to
115 kbaud. In Chapter 4, refer to the “
Serial Port Commands ”
section for details about changing baud rates.
6. Click OK to display the Hyperterminal window.
7. In Chapter 2, please continue with step 5 in the “RS-232 Serial
Control Setup” section.
