C O N N E C T O R TY P E S
Ethernet Connector
350-7951 Quadra User’s Guide 104
.
. .
.
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
E T H E R N E T C O N N E C T O R
CONNECTOR TYPE
. . . . . . . . . AND PINOUTS
The Ethernet connector is a standard RJ-45 type connector.

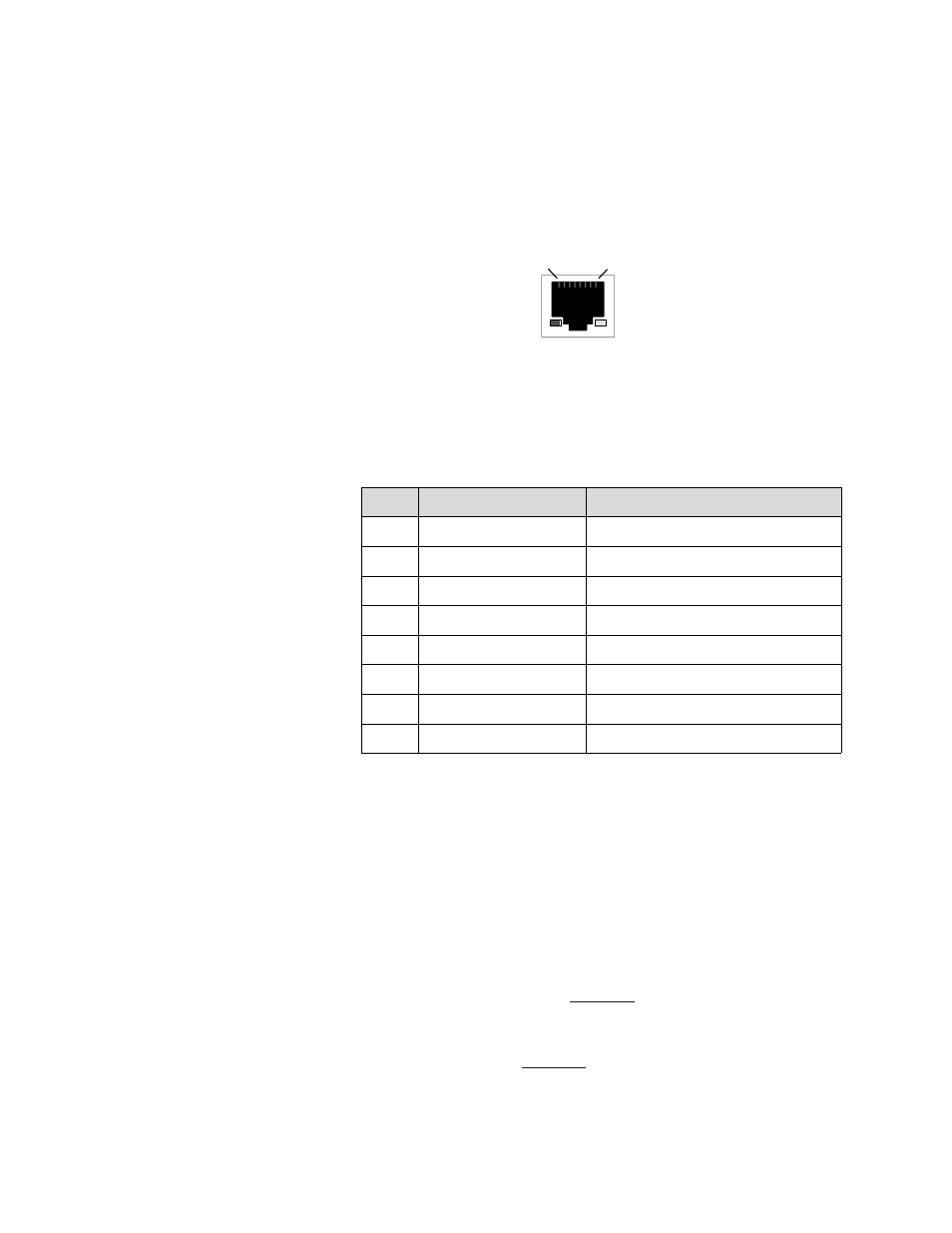

Figure C-5. Ethernet connector (viewed from rear of chassis)
The 8-pin RJ-45 Ethernet connector has the following signals:.
STANDARD
. . . . . . . . . ETHERNET CABLES
Standard Ethernet cables are available commercially in different lengths. The
standard cable is wired pin for pin (straight through), meaning that pin 1 of the
connector at one cable end is wired to pin 1 of the connector at the opposite end.
This type of cable is used to connect Quadra directly to the network, typically
using an Ethernet hub or switch. To connect directly from a PC to the Quadra,
a crossover cable must be used (see the following section for details).
CROSSOVER
. . . . . . . . . CABLES
To connect directly from a PC or laptop to Quadra without connecting to the
network, an Ethernet “crossover” cable must be used. Crossover cables are
available commercially. In a crossover cable, one end of the cable is wired
using the pin assignments shown in
Table C-5 . At the other end, the TX and
RX connections are exchanged (crossed over).
Ethernet uses balanced differential signals on twisted pairs of conductors.
Standard pairs are shown in
Table C-5 . For each pair, one wire has a solid
color. The other wire is white with a colored stripe matching the first wire’s
color (e.g., Orange and White/Orange).
Table C-5. Ethernet Connector Pinouts
Pin Signal Wire Color
1 TX Data + White/Orange
2 TX Data - Orange
3 RX Data+ White/Green
4 Blue
5 White/Blue
6 RX Data- Green
7 White/Brown
8 Brown
1 8
