I N S T A L L A T I O N A N D S E T U P
System Control Setup
350-7951
Quadra User’s Guide
17
.
. .
.
.
~
Data bits: 8
~
Parity: None
~
Stop bits: 1
~
Flow control: XOn / XOff
Quadra can be configured to operate at baud rates from 9600 baud to
115 kbaud. In Chapter 4, refer to the “
”
section for details about changing baud rates.
4.
Click
OK
to display the Hyperterminal window.
5.
Select the “phone” icon to connect the PC to the Quadra.
6.
When the window is open, press
ENTER
.

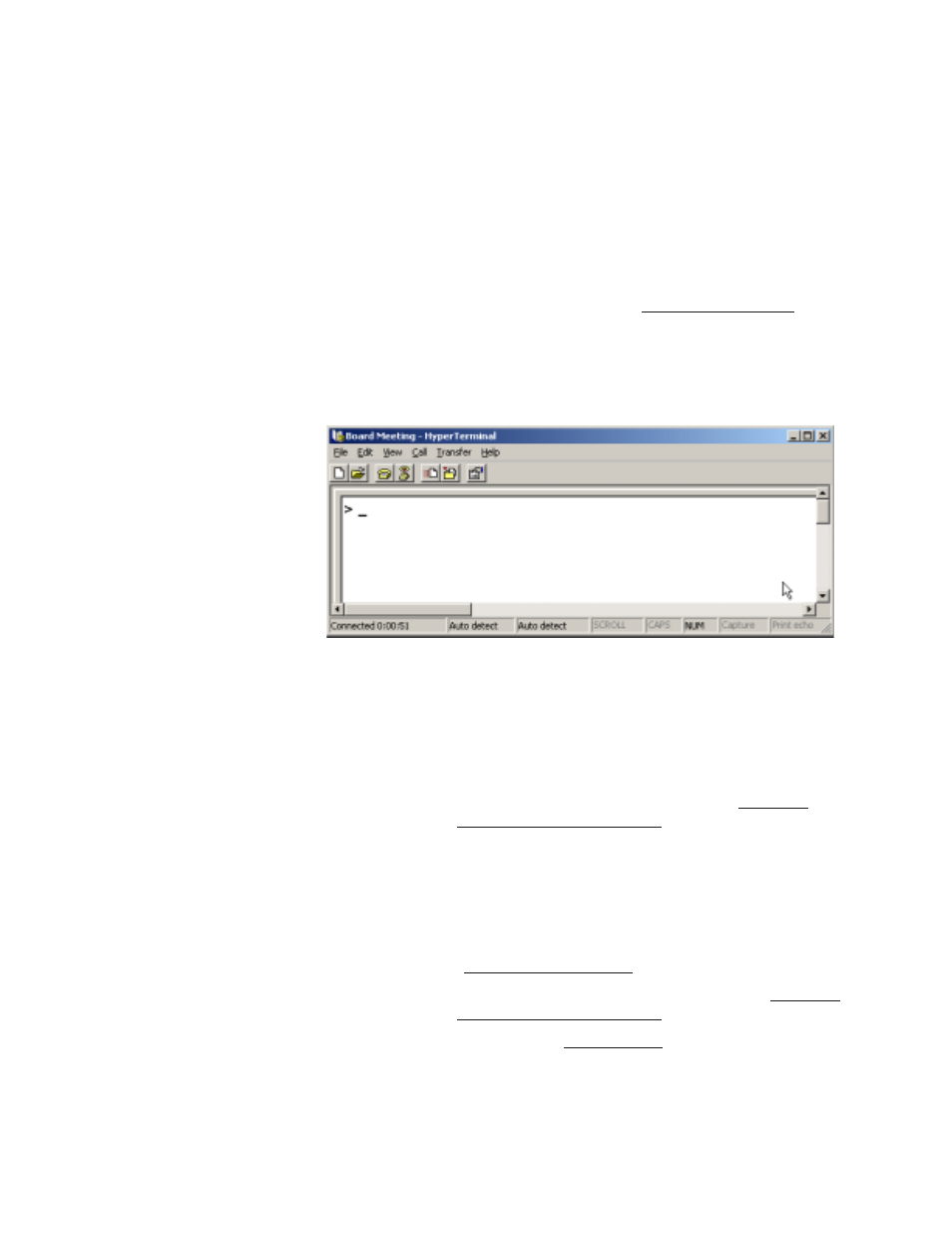

Figure 2-4.
Hyperterminal Window (Sample)
Please note:
~
If a prompt is displayed in the window (as shown above),
your PC is successfully connected to Quadra.
~
If you do not see a prompt (or any characters), there is a
connection problem. Refer to Appendix D, “
” for troubleshooting steps.
7.
If a prompt is displayed, you can test out the system. Type:
HELP
…
and press
Enter
.
~
If communications have been set up correctly, Quadra
responds with a list of commands. Refer to Chapter 4,
“
” for details.
~
If Quadra does not respond, refer to Appendix D, “
” for instructions.
8.
Please continue with the “
” section.
