I N S T A L L A T I O N A N D S E T U P
Front Panel
350-7951
Quadra User’s Guide
10
.
. .
.
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
F R O N T P A N E L

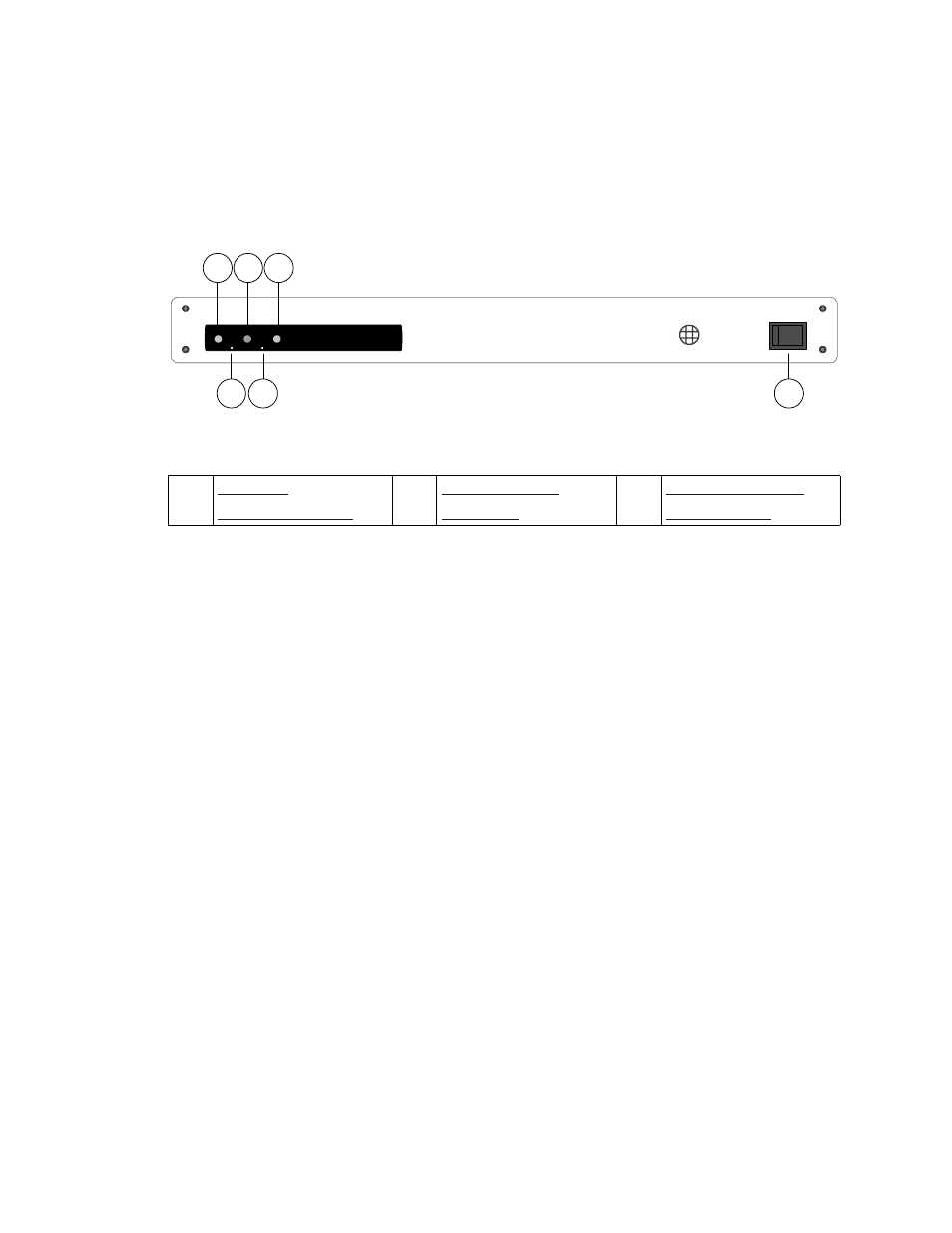

The figure below illustrates a front panel view of the Quadra.
Figure 2-1.
Quadra
Front Panel View
Descriptions of each control and indicator are provided below:
1)
Alarm LED
The
Alarm LED
glows solid amber when the Quadra’s internal
electronics have exceeded the maximum internal temperature of 60
degrees Celsius. Note that this is a warning only, and users should
take corrective action to avoid damage to the unit.
2)
Ethernet Activity LED
The
Ethernet Activity LED
blinks green when there is data traffic
over the Quadra’s Ethernet connection.
3)
Ethernet Link LED
The
Ethernet Link LED
glows solid green when there is a valid
Ethernet connection between Quadra and another Ethernet device.
Note that if an RS-232 connection only is used, this LED will be off.
4)
Reset Button
Press the
Reset Button
to perform a hard reset. Use an unfolded
paper clip to press the button, which is located inside the small access
hole. When pressed, systems parameters are unchanged (this is
equivalent to cycling the power).
5)
Comms Default Button
Press the
Communications Default Button
to reset the IP address
to the factory default (
192.168.1.200
) and reset the RS-232 serial
port to 9600 baud (use and unfolded paper clip to actuate the switch).
6)
AC Power Switch
Use the
AC Power Switch
to turn the Quadra on and off. When the
unit is on, the LED inside the switch glows red.
Alarm
Activity
Link
O
I
3
4
5
6
Quadra
1
2
R G B
SPECTRUM
1)
3)
5)
2)
4)
6)
