Page 161

Chapter 3 Using the console interface
161
Using the BayStack 420 10/100/1000 Switch
Spanning Tree Switch Settings screen
The Spanning Tree Switch Settings screen (
) allows you to view
spanning tree parameter values for the BayStack 420 Switch.
To open the Spanning Tree Switch Settings screen:

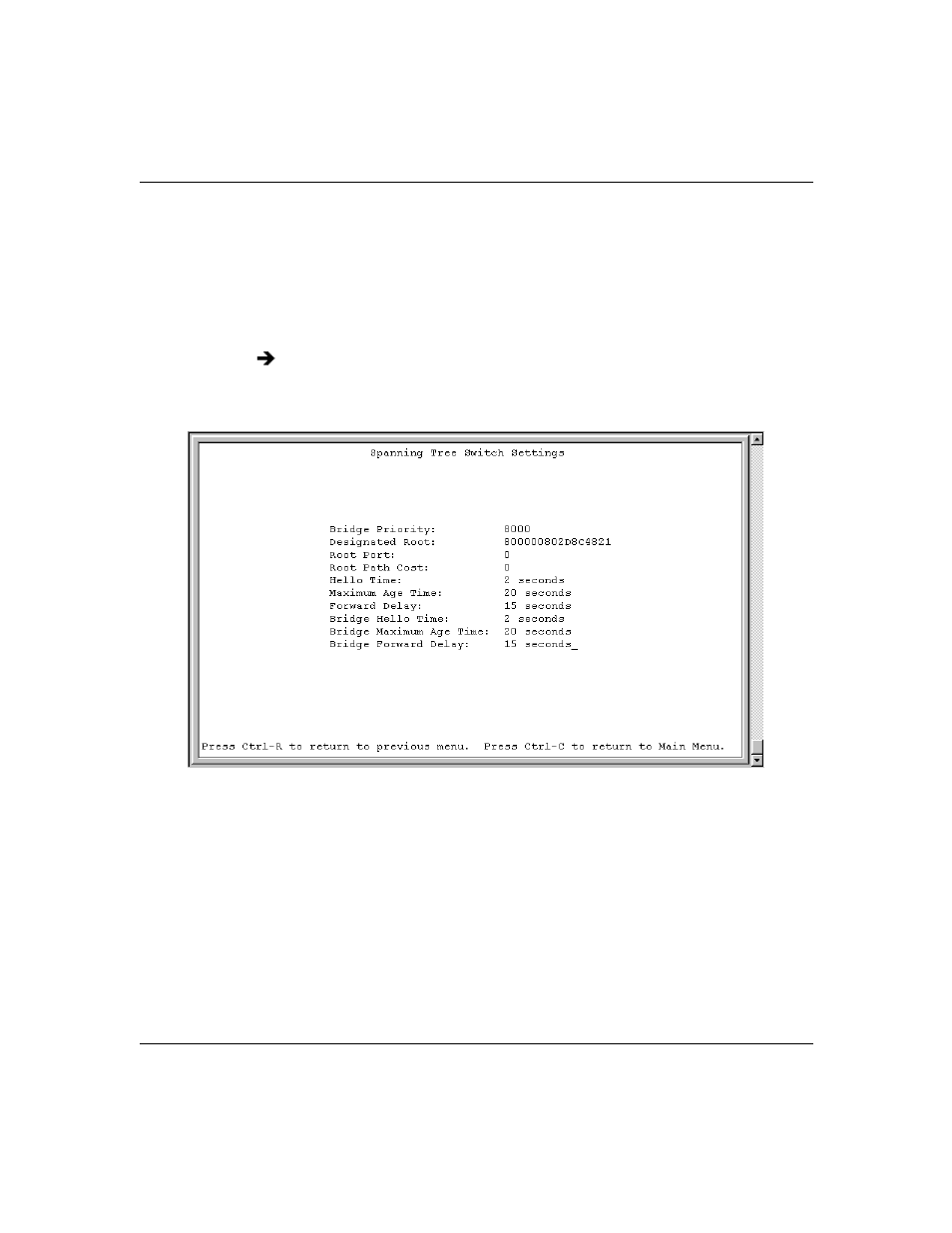

Figure 74
Spanning Tree Switch Settings screen
Choose Display Spanning Tree Switch Settings (or press d) from the
Spanning Tree Configuration Menu screen.
