ProSafe Dual Band Wireless Access Point WNDAP330 Reference Manual
Basic Installation and Configuration 2-5
v1.0, May 2008
2. Enter admin
for the user name and password for the password, both in lower case letters as
shown in Figure 2-2 .
3. Click Login. The main menu of the WNDAP330 will display as shown in Figure 2-3 .
• When the wireless access point is connected to the Internet, under the Support tab, select
Documentation to view the documentation for the wireless access point.
• On the top-right of the screen, select Logout to exit the WNDAP330 setup screens. (You
will automatically be logged out of the wireless access point after 5 minutes of no
activity.)

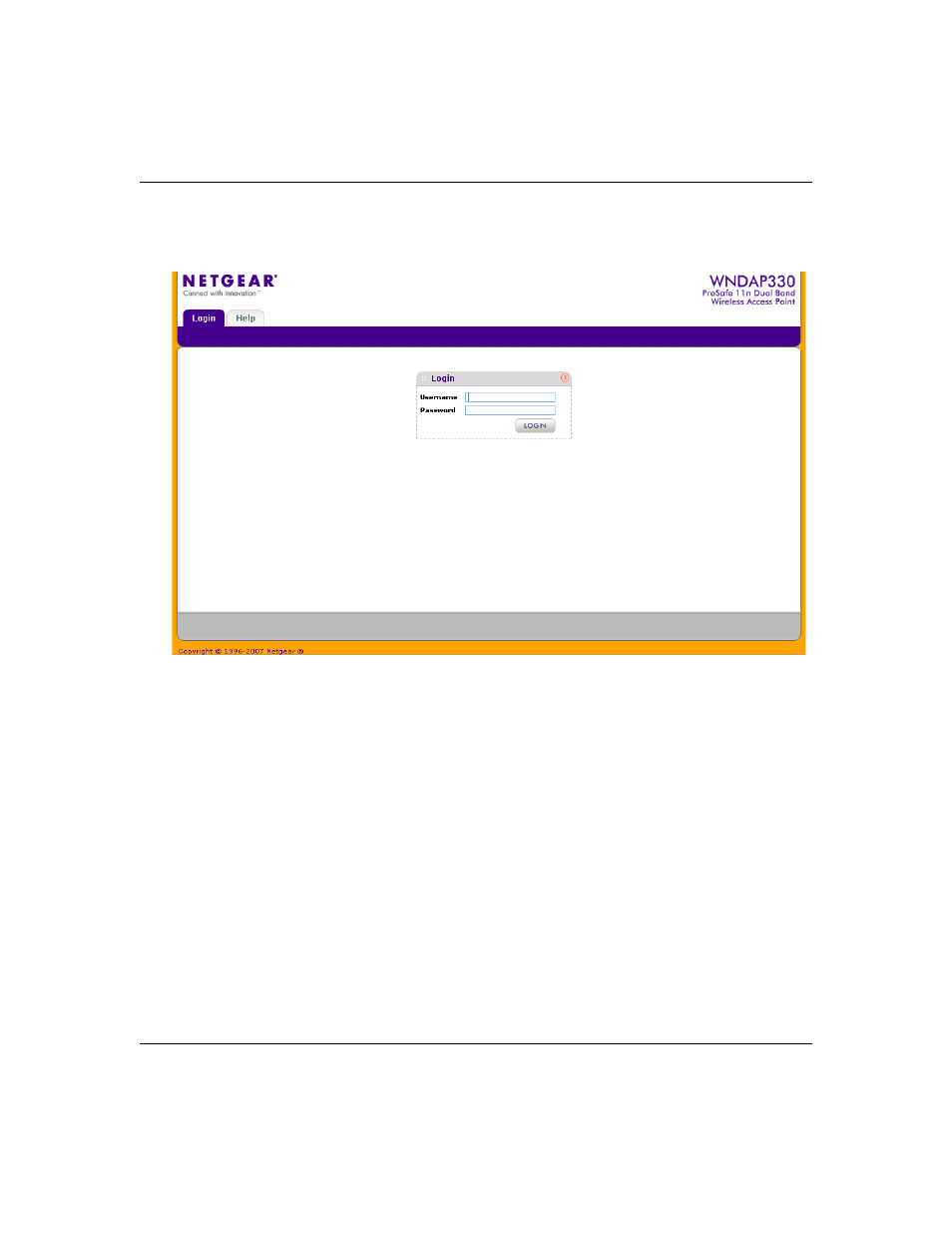

Figure 2-2
