ProSafe Dual Band Wireless Access Point WNDAP330 Reference Manual
Advanced Configuration 4-15
v1.0, May 2008
3. Configure the WNDAP330 (AP2) on LAN Segment 2 in Point-to-Point Bridge mode.
AP1 must have AP2’s MAC address in its Remote MAC Address field and AP2 must have
AP1’s MAC address in its Remote MAC Address field.
4. Configure and verify the following parameters for both access points:
• Verify that the LAN network configuration of the WNDAP330 Wireless Access Points
both are configured to operate in the same LAN network address range as the LAN
devices
• Both use the same ESSID, Channel, authentication mode, if any, and security settings if
security is in use.

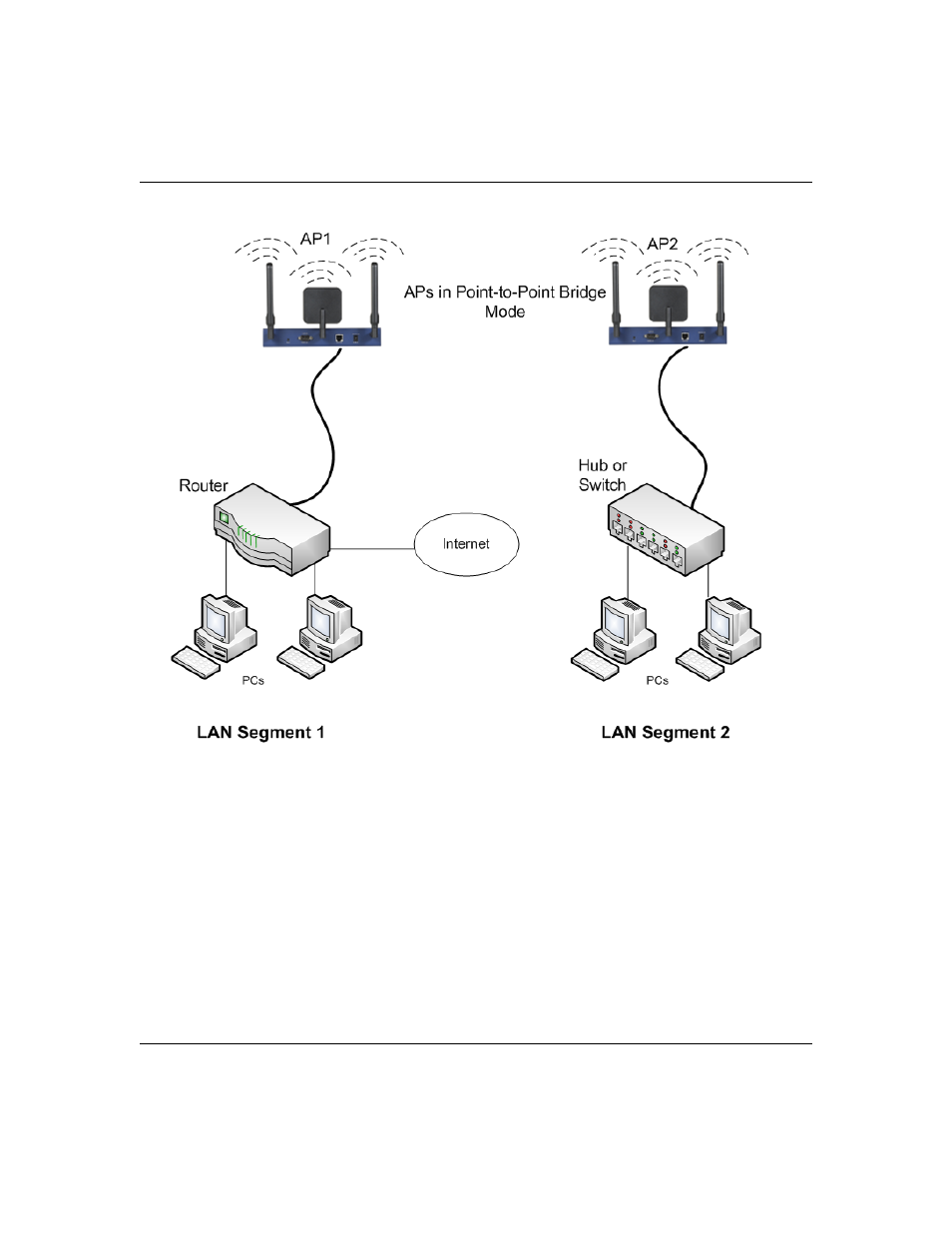

Figure 4-8
