ACCULINK 317x E1 DSU/CSU
4-24 December 1996 3170-A2-GB20-20

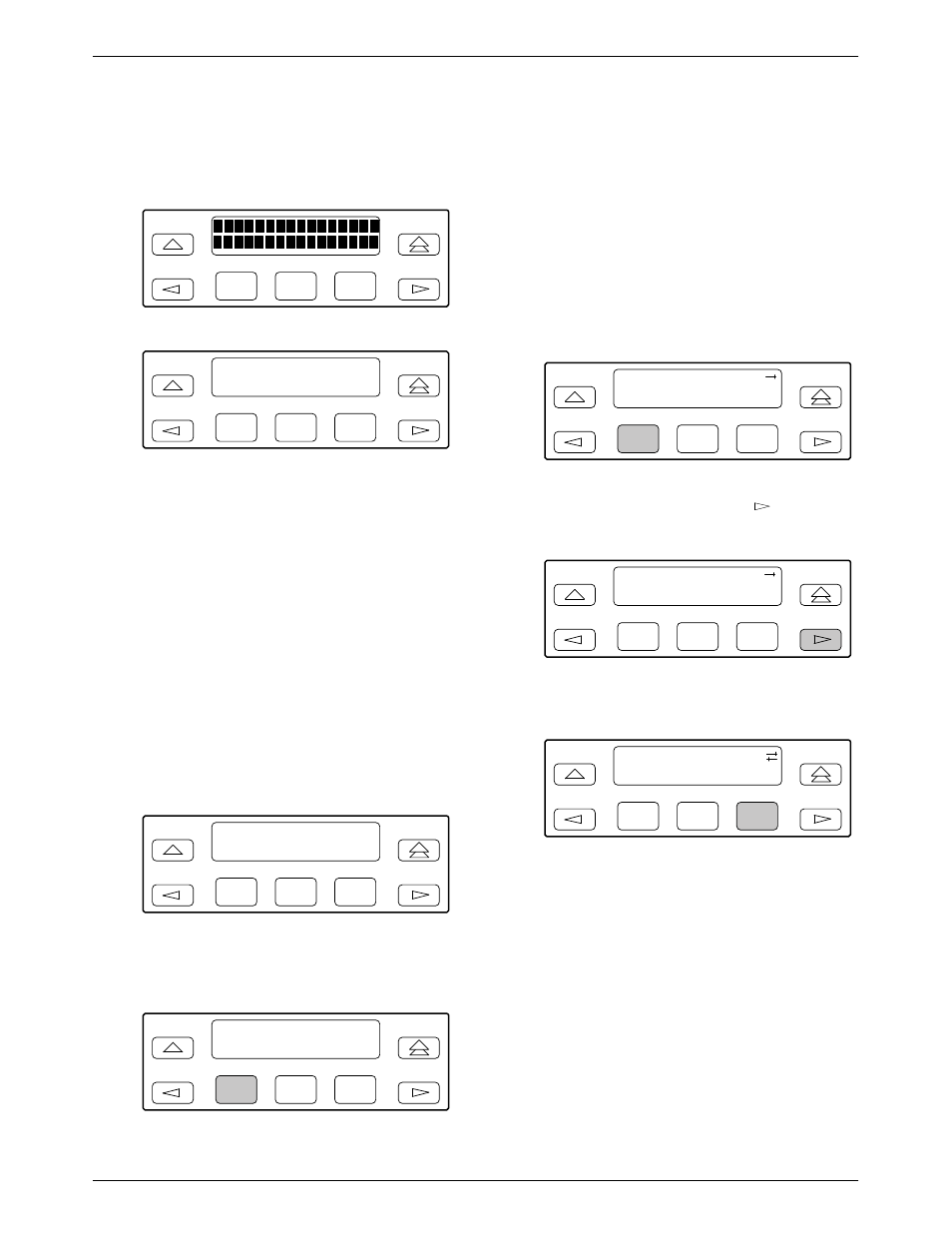

5. The following screens alternately appear on the
LCD until you press a Function key to return to
the Lamp Test screen. In addition, all LEDs blink.
F1 F2 F3
F1
0123456789 : ; < = > ?
@ABCDEFGHIJKLMNO
F2 F3
6. When you are satisfied that all LEDs are lighting
and the LCD is functioning properly, abort the
Lamp test from the Lamp Test screen. The Device
Health and Status screen appears automatically if
there is no activity on the E1 DSU/CSU front
panel for five minutes. However, the Lamp test
remains active until it is aborted.
Aborting a Lamp Test
To abort the Lamp test,
1. Display the Lamp Test screen. To do this when the
LCD is alternating the Lamp test screens, press
any Function key. Otherwise, follow Steps 1
through 3 for starting a Lamp test.
F1
Lamp Test:
Abort
Start
F2 F3
2. From the Lamp Test screen, press F1 to select
Abort.
F1
Lamp Test:
Abort
Start
F2 F3
Displaying E1 DSU/CSU
Test Status
Use the Test Status command to display the active tests
for the E1 DSU/CSU. Status messages that can display on
the front panel LCD are listed in Table 4-10.
To display test status,
1. Press F1 to select Stat from the top-level menu
screen.
F1
DSU E1 CEPT
Stat
Test Cnfig
F2 F3
2. From the Status screen, press the key once to
display the TStat selection.
F1
Status:
DevHS STest
Perf
F2 F3
3. Press F3 to select TStat.
F1
Status:
STest
Perf TStat
F2 F3
The Test Status screen appears showing you what
tests are active for the E1 DSU/CSU.
