ACCULINK 317x E1 DSU/CSU
D-14 December 1996 3170-A2-GB20-20
Power Input Connector
The input power connector leads are shown in
Table D-9.
Table D-9
DC Power Connector
Signal Pin Number
– 48 Vdc Return 1, 2
– 48 Vdc A 6
– 48 Vdc B 5
+24 Vdc 5
+24 Vdc Return 4
Chassis Ground 3
Optional DC Power Cable
The power cable is a 14.5-foot, 18 AWG stranded
cable. The connector is terminated at one end with a
6-position connector. The other end of the cable is
terminated with a bare wire that should be connected to a
dc power source. Figure D-8 shows the wire colors. The
power source can be either a single source of +24 Vdc or
up to two sources of –48 Vdc (A and B). You cannot
connect +24 Vdc and – 48 Vdc to the same unit. See the
installation instructions in Chapter 2, Installation.

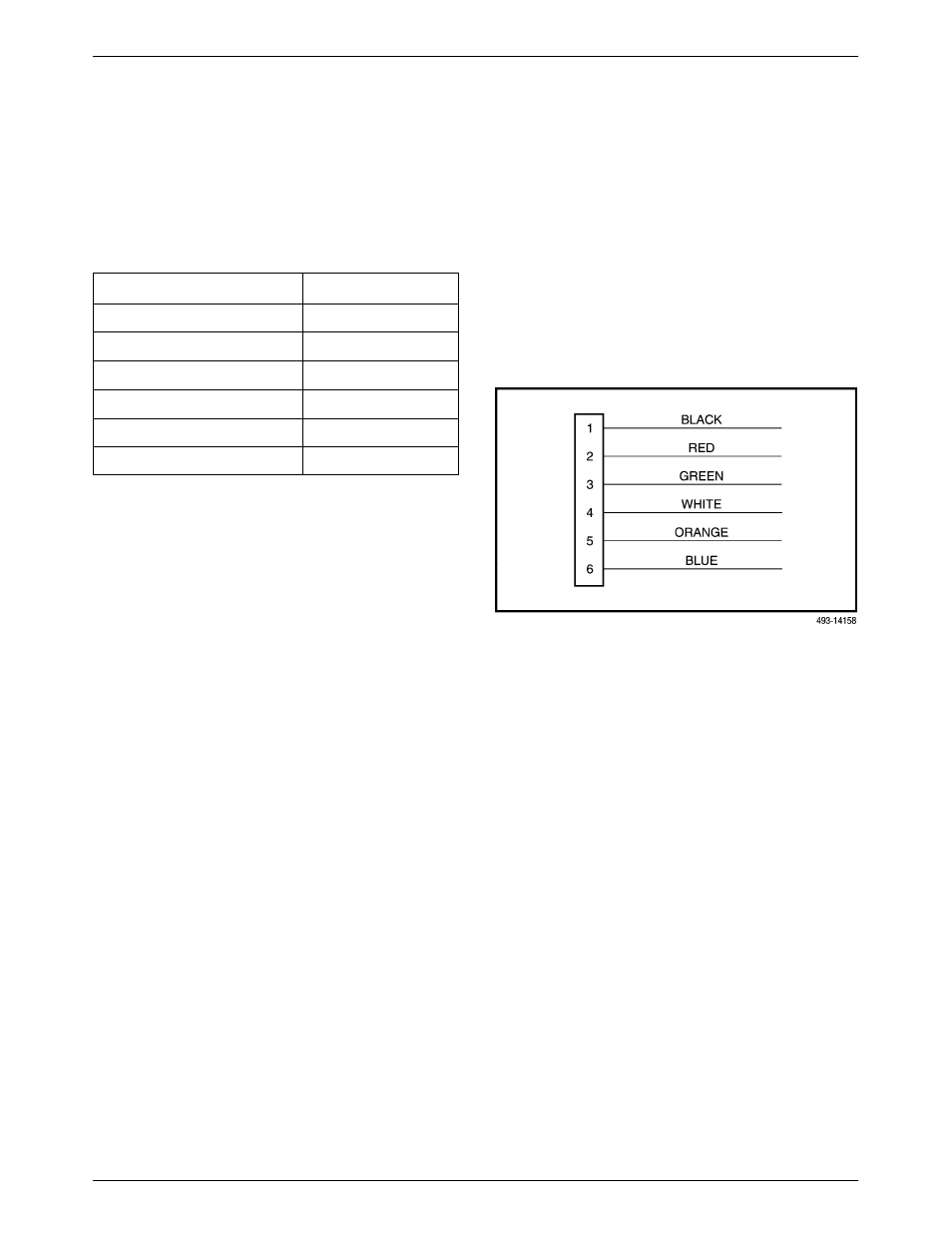

Figure D-8. DC Power Cable
