2-1 3170-A2-GB20-20 December 1996
Installation
Overview 2-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Application Examples 2-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SNMP Connection Examples 2-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Important Instructions 2-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Optional Power Sources 2-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the +24 Vdc Power Supply 2-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Single – 48 Vdc Power Supply 2-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Redundant – 48 Vdc Power Supply 2-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cabling Examples 2-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power-Up Self-Test 2-9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overview
This chapter contains information for installing your
E1 DSU/CSU. It includes application examples, cabling,
and power-up information.
Application Examples
The E1 DSU/CSU is designed to provide an interface
between the E1 digital network and the customer premises
equipment. The E1 DSU/CSU is connected to the
customer premises equipment through one of the
synchronous data ports (PORTs 1– 4) or the DTE
Drop/Insert port (DTE). It is connected to the network
through the Network interface (NETWORK). The most
common applications for the E1 DSU/CSU are:
•
Point-to-Point LAN interconnection (Figure 2-1).
•
Shared access to network-based services
(Figure 2-2).
•
Fractional E1 network applications (Figure 2-3).
•
Wireless/DACS (Digital Access and Cross-connect
System) applications (Figure 2-4).
Both voice and data applications are supported.
NETWORK
496-14296a-02
DSU/CSU DSU/CSU LAN
ROUTER
LAN
ROUTER

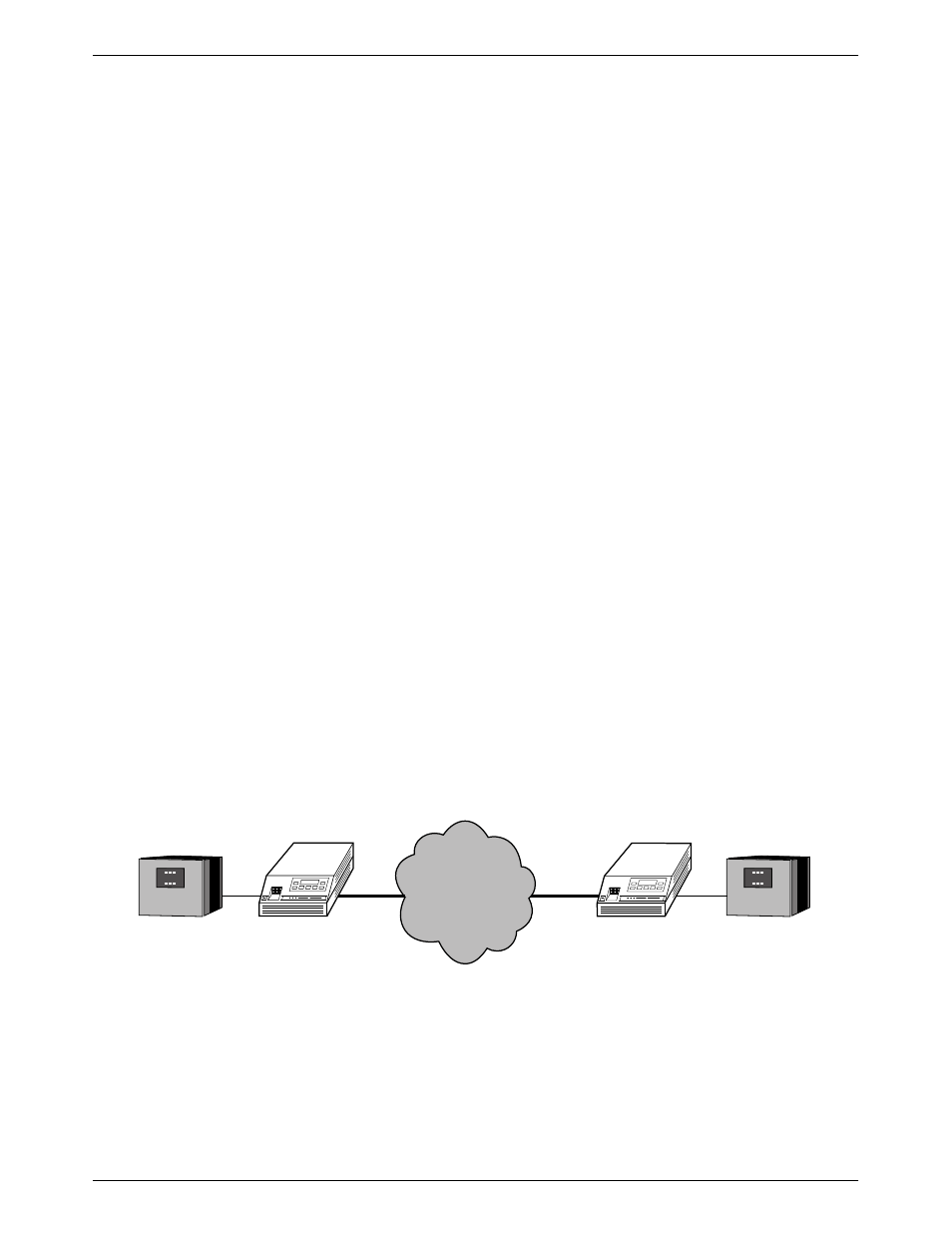

Figure 2-1. Point-to-Point Application Example
2
