ACCULINK 317x E1 DSU/CSU

3-36

December 1996

3170-A2-GB20-20

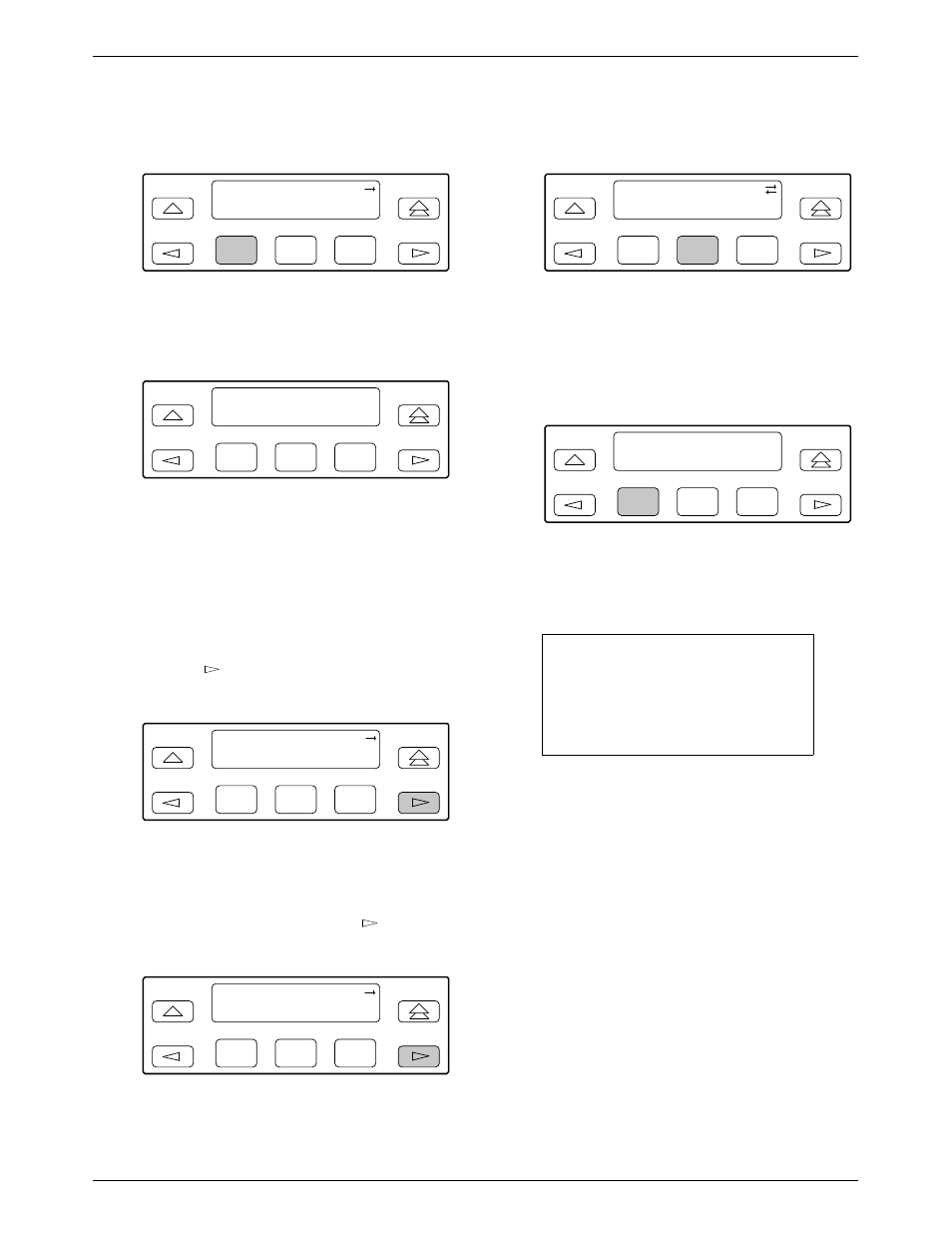

3. From the Control screen, select Rel (Release).

F1

Control:
Rel

LED

ClrReg

F2

F3

The active user interface is released. A screen with
this message appears. No user interface is active
until input is received from a user interface.

F1

Ft. Panel:
Released

F2

F3

Resetting the E1 DSU/CSU

Use the Reset command to perform a power-on reset of

the E1 DSU/CSU.

To reset the E1 DSU/CSU,

1. Press the

key once to display the Ctrl

selection on the top-level menu screen.

F1

DSU E1 CEPT
Stat

Test

Cnfig

F2

F3

2. Press F3 to select Ctrl from the top-level menu

screen.

3. From the Control screen, press the

key until

the Reset selection appears on the screen.

F1

Control:
Rel

LED

ClrReg

F2

F3

4. Select Reset.

F1

Control:
ClrReg Reset

F2

F3

5. From the Device Reset screen, press F1 to initiate

a reset of the E1 DSU/CSU (the power-up
sequence screen appears). Press F2 instead to
return to the Control screen without initiating a
reset.

F1

Device Reset:
Yes

No

F2

F3

Download Operations

NOTE

The Download command is for
use by service personnel only.
Loss of primary data could result
from improper use.
