ACCULINK 317x E1 DSU/CSU
3-30 December 1996 3170-A2-GB20-20

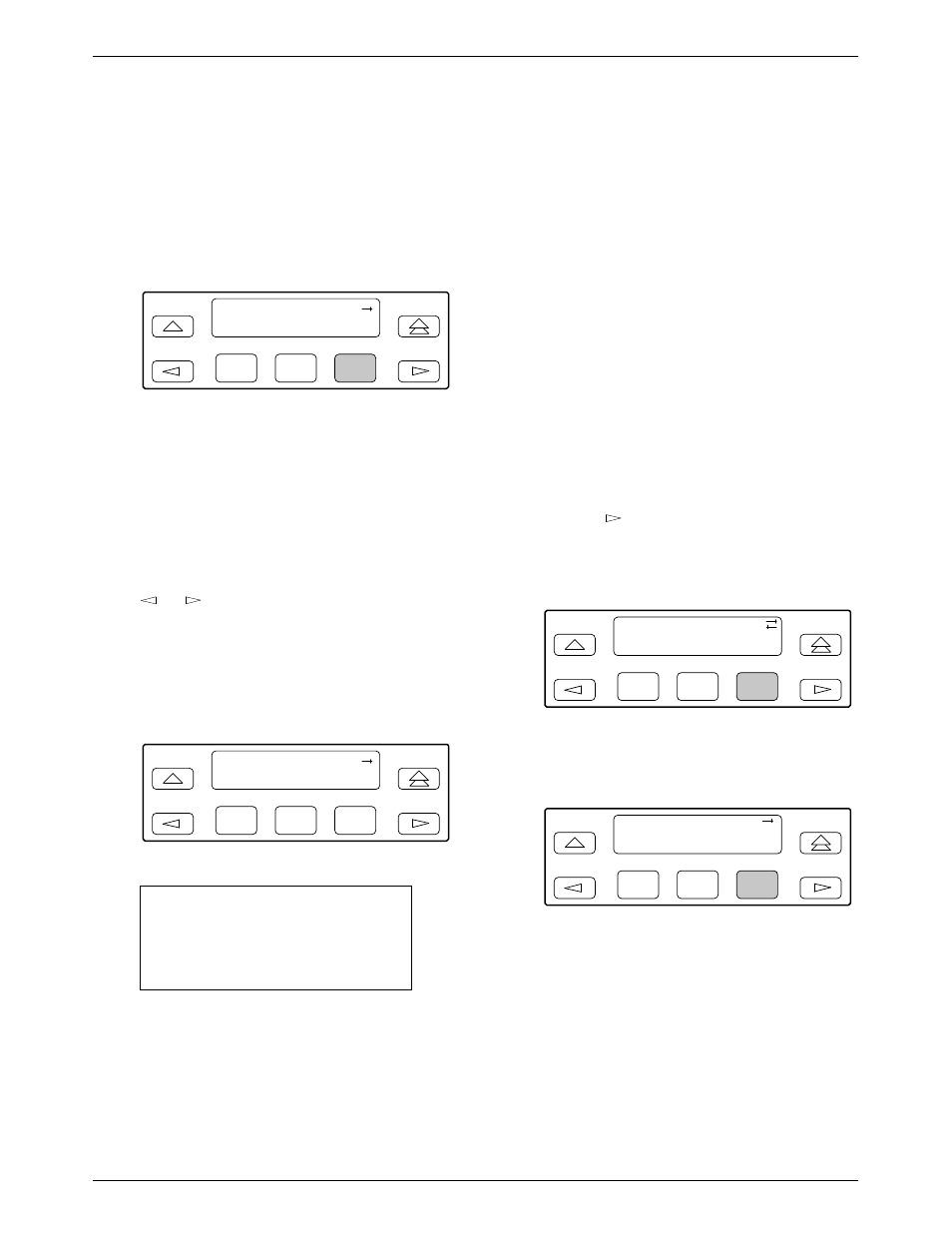

Individual Channel Assignment Method
The Assign By configuration option screen appears
after you select a port.
To assign by the individual channel method,
1. Press F3 (Chan).
F1
Assign By:
Next Block
Chan
F2 F3
2. Press F1 (Next) to display the next configuration
option (channel allocation).
3. Line 1 displays the 31 channels for the Network
E1 interface or the DTE Drop/Insert interface,
depending on which destination was chosen. This
example assumes that the Network E1 interface is
the destination. Line 2 displays what is allocated
to the DS0 channel shown in Line 1. Pressing the
or key scrolls the channels onto the screen
in groups of three. Select the channel by pressing
the Function key under the desired number. Portn
appears. The port is assigned to that channel. To
deallocate a port, press the Function key under
that port number. Pressing the Function key under
channels assigned to other ports has no effect.
F1
N1 N2
Next Prt1 Prt2
F2 F3
NOTE
N16 will not appear if time-slot 16
(TS16) is reserved for signaling.
(This is the default for TS16.)
Allocating DS0 Channels from the
Drop/Insert Interface to the Network
Interface
You can allocate DS0 channels from the DTE
Drop/Insert interface to the Network interface and specify
whether time-slot 16 (TS16) is reserved for signaling
information.
To allocate DS0 channels from the DTE Drop/Insert
interface to the Network interface,
1. Press F3 to select Cnfig from the top-level menu
screen.
2. Select the configuration option set to be copied
into the Edit area by using the appropriate
Function key. Use the scroll keys, if necessary.
3. Press F1 to select Edit.
4. Press the key from the Edit screen to display
the Chan selection.
5. Select Chan.
F1
Edit:
Port
NET Chan
F2 F3
6. From the Channel Config screen, press F3 to
select DTE.
F1
Channel Config:
Dsply
Clear DTE
F2 F3
