ACCULINK 317x E1 DSU/CSU
4-22 December 1996 3170-A2-GB20-20

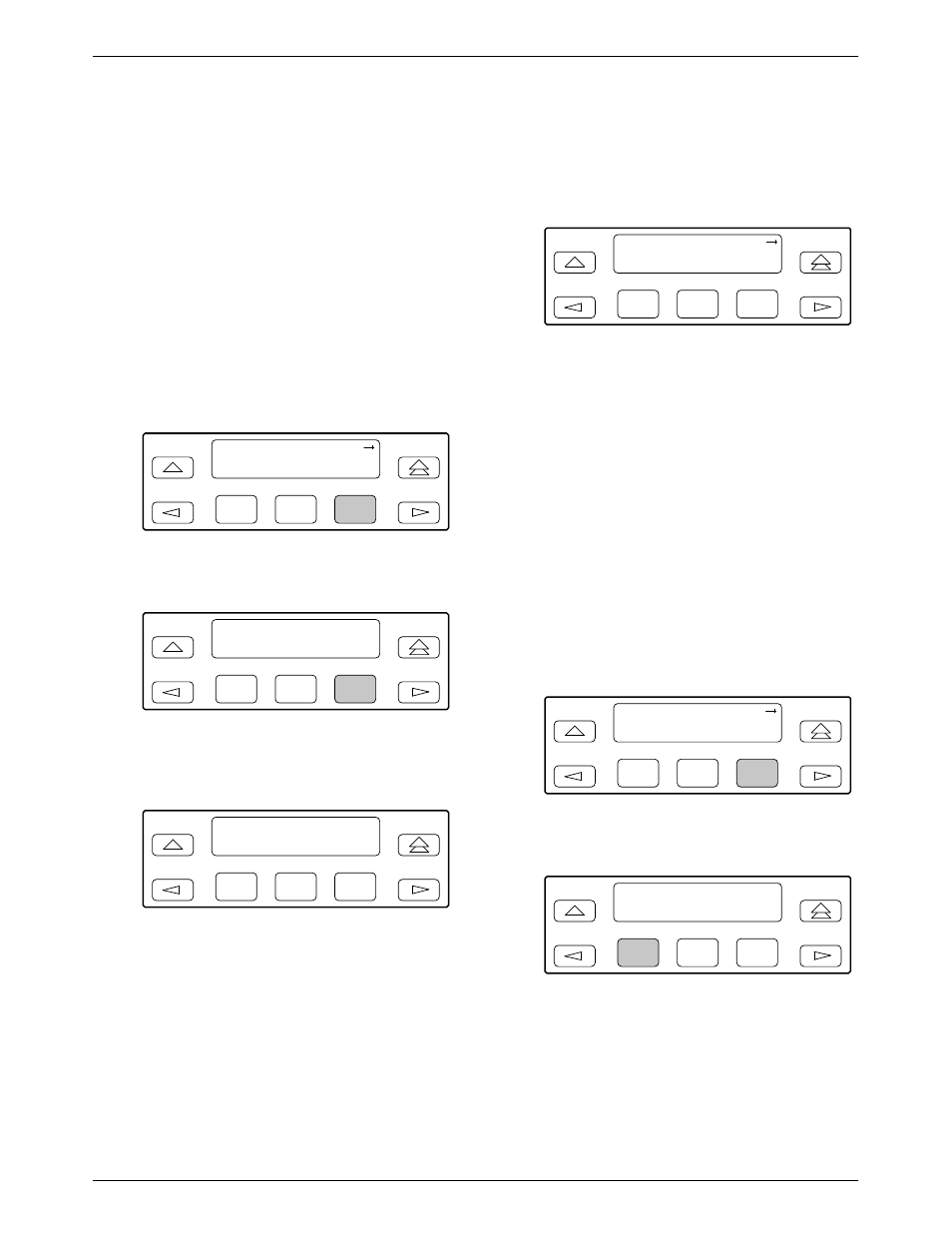

Monitoring Test Patterns
on Individual Data Ports
Use the Monitor command to monitor QRSS or 511
test patterns on the channels allocated to an individual
data port.
This command provides the number of errors detected
in the test pattern (5 digits, maximum 99999).
To monitor a QRSS or 511 test pattern,
1. Press F2 to select Test from the top-level menu
screen.
2. From the Test screen, press F3 to select Ptrns.
F1
Test:
Rlpbk Lpbk
Ptrns
F2 F3
3. From the Patterns screen, press F3 to select Mon.
F1
Patterns:
Abort
Send Mon
F2 F3
4. From the Patterns Mon screen, press F1 for QRSS
or F2 for 511.
F1
Patterns: Mon
QRSS 511
F2 F3
5. From the Monitor screen, press the Function key
that corresponds to the port for which you want to
monitor a test pattern. Use the scroll keys, if
necessary.
F1
Monitor: Name
Prt1 Prt2 Prt3
F2 F3
The Monitor screen appears with the error count.
If the maximum of 99999 is exceeded, OvrFlw
appears instead of the count. If the receiver loses
synchronization while the monitor is active, No
Sync appears.
Aborting Test Patterns
Use the Abort command to stop all test patterns or any
selected test pattern active on the E1 DSU/CSU.
To abort test patterns,
1. Press F2 to select Test from the top-level menu
screen.
2. From the Test screen, press F3 to select Ptrns.
F1
Test:
Rlpbk Lpbk
Ptrns
F2 F3
3. From the Patterns screen, press F1 to select Abort.
F1
Patterns:
Abort
Send Mon
F2 F3
