ACCULINK 317x E1 DSU/CSU
3-34 December 1996 3170-A2-GB20-20

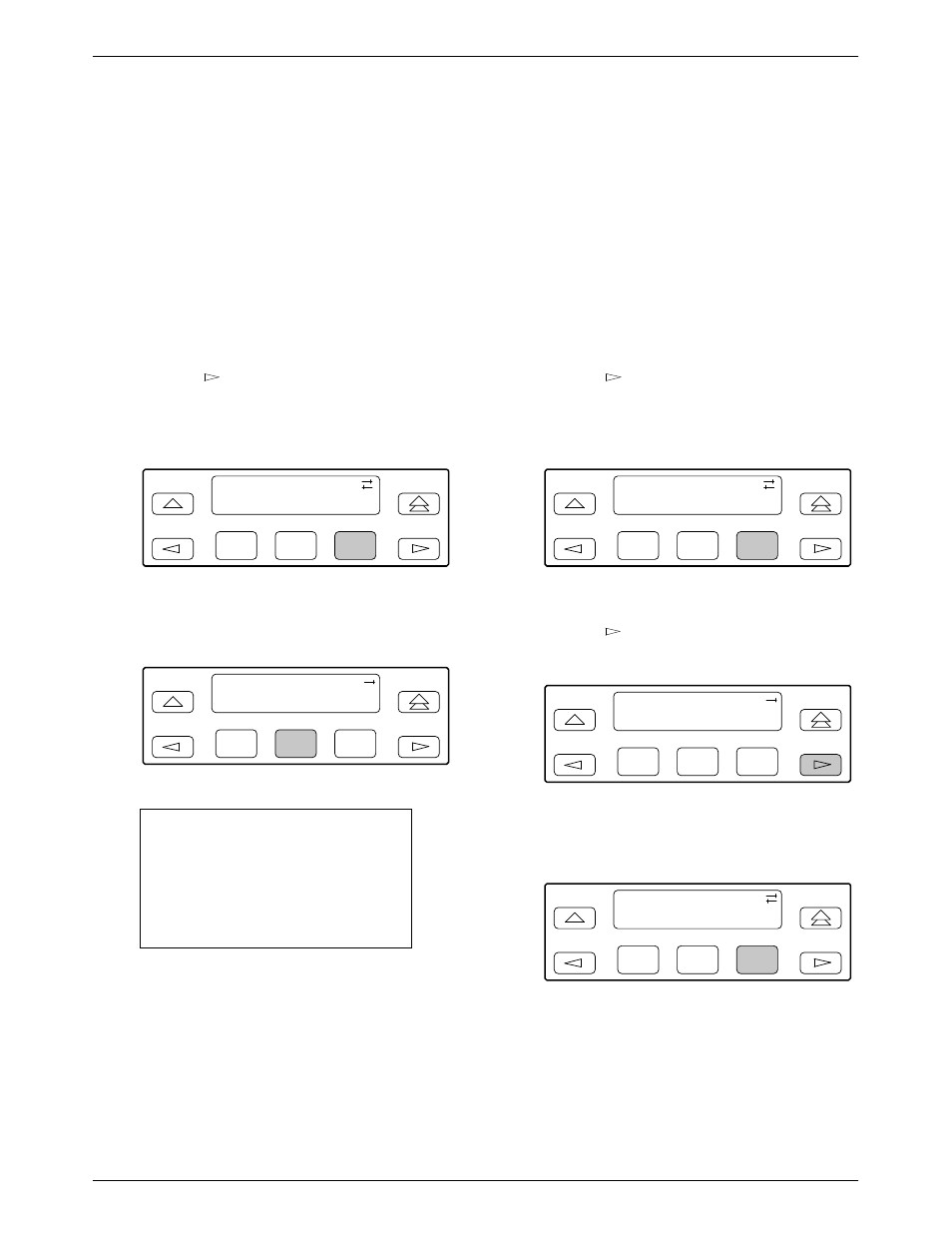

Configuring for Network Timing
To configure for network timing,
1. Press F3 to select Cnfig from the top-level menu
screen.
2. Select the configuration option set to be copied
into the Edit area by using the appropriate
Function key. Use the scroll keys, if necessary.
3. Press F1 to select Edit.
4. Press the key from the Edit screen to display
the Gen selection.
5. Select Gen for the general configuration options.
F1
Edit:
NET
Chan Gen
F2 F3
6. Select the primary clock source. For network,
press F2 (note that network is also the default).
F1
Pri Clk Src:NET
Next
NET DTE
F2 F3
NOTE
The procedure for configuring the
secondary clock source is similar
to the example shown above. For
more information on configuration
options, refer to Appendix C.
Configuring for External Timing
To configure the E1 DSU/CSU for external timing,
1. Press F3 to select Cnfig from the top-level menu
screen.
2. Select the configuration option set to be copied
into the Edit area by using the appropriate
Function key. Use the scroll keys, if necessary.
3. Press F1 to select Edit.
4. Press the key from the Edit screen to display
the Gen selection.
5. Select Gen for the general configuration options.
F1
Edit:
NET
Chan Gen
F2 F3
6. Select the primary clock source. For external,
press the key until the Ext selection scrolls
onto the screen.
F1
Pri Clk Src:NET
Next
NET DTE
F2 F3
7. Press the appropriate Function key to select
external timing.
F1
Pri Clk Src:NET
Prt
n Int Ext
F2 F3
8. Select the appropriate external clock rate by
pressing the corresponding Function key. This step
is mandatory if you have chosen external clocking.
