ACCULINK 317x E1 DSU/CSU
4-6 December 1996 3170-A2-GB20-20

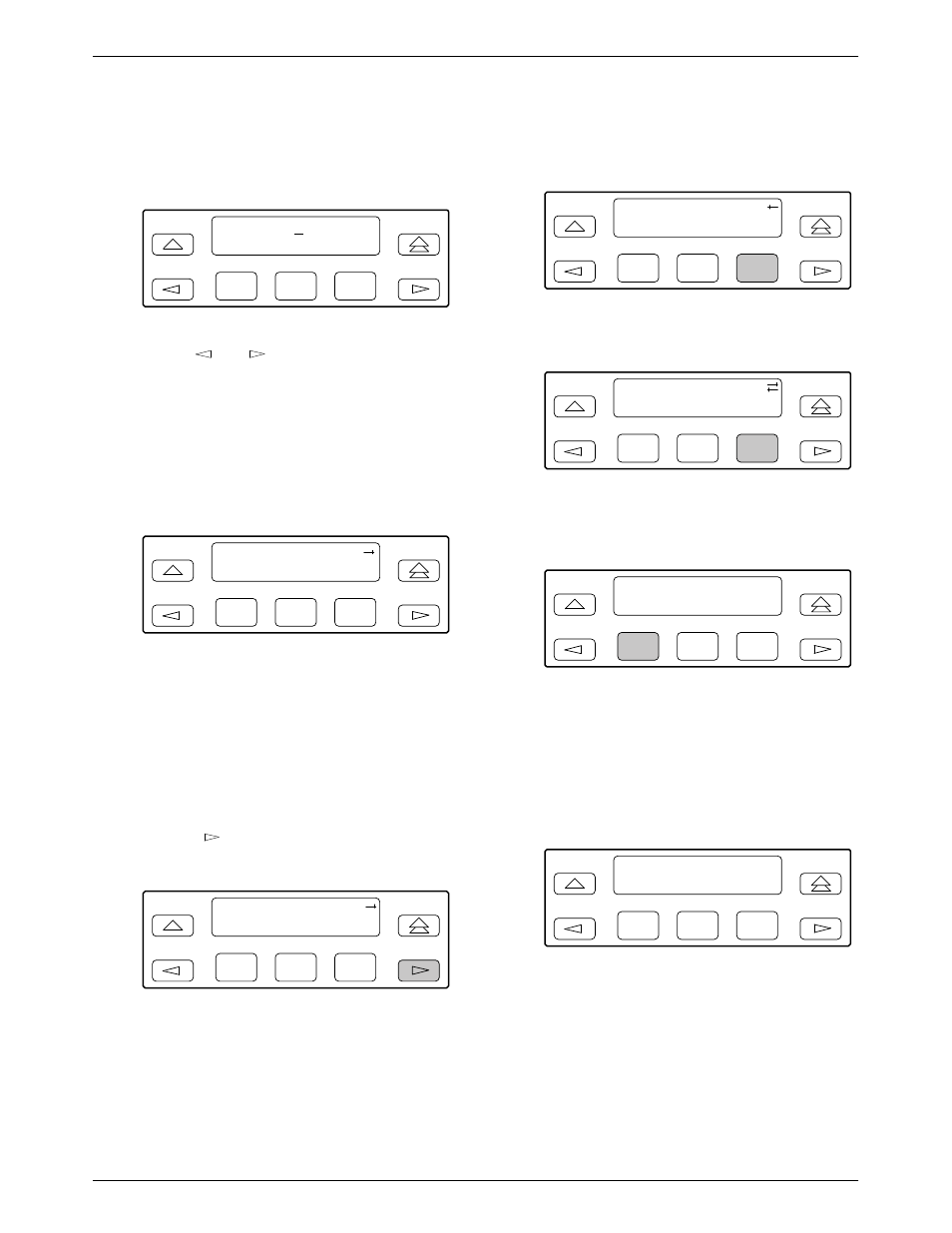

7. When you press F3 from the NET Registers
screen, the interval screen appears. Use this screen
to choose the specific 15-minute interval.
F1
NET Intvl: 01
Up
Down Dsply
F2 F3
8. Use the and keys to position the cursor
under the first or second digit in the interval
number displayed, then use the F1 (Up) and
F2 (Down) keys to increment/decrement the
number.
9. When you have selected the number of the interval
you want to display, press F3 (Dsply) to display
the registers for the interval selected.
F1
NET Intvl: nn
ES=xxx
F2 F3
10. Use the scroll keys to view additional register
information.
You can reset the network registers from the E1
DSU/CSU via the ClrReg command in the Control branch
of the front panel menu.
To clear the user performance registers,
1. Press the key on the top-level menu screen to
bring the Ctrl branch onto the front panel LCD.
F1
DSU E1 CEPT
Stat
Test Cnfig
F2 F3
2. Press F3 to select Ctrl from the top-level display
screen.
F1
DSU E1 CEPT
Test
Cnfig Ctrl
F2 F3
3. Select ClrReg.
F1
Control:
Rel
LED ClrReg
F2 F3
4. From the Clear Prf Regs screen, press F1 to clear
the NET registers.
F1
Clear Prf Regs:
NET
Prt1 Prt2
F2 F3
If you selected NET, the network performance
registers are cleared. All accumulators are reset to
zero and all status registers are cleared, and the
current interval timer, the number of valid
intervals count and the total 24-hour counts are
reset to zero. The Command Complete screen then
appears.
F1
Clear NETRegs:
Command Complete
F2 F3
