80
ADJUSTMENTS
2.BEFORE ADJUSTMENTS
(1) Convergence adjustment memory
The MPJ incorporates four convergence adjustment memories. These can broadly be divided into the adjust-
able memory (Memories 1 to 3) and dedicated memory for reading adjustment values set at shipment (FAC-
TORY).

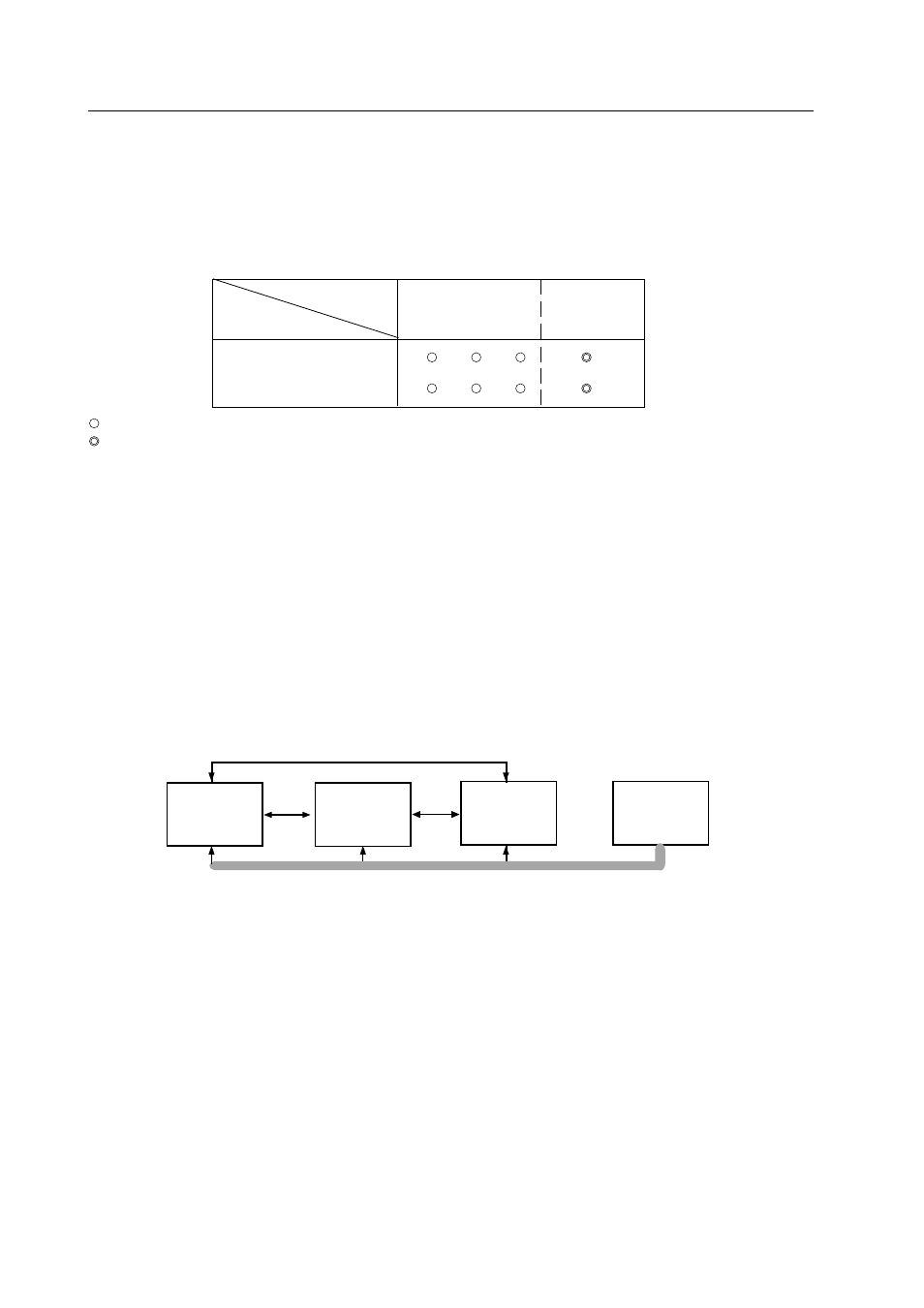

Input Signal
: Enable to select.
: Disable to select. Only possible to read out to the memory area enable to select.
The following adjustment data are input to each memory area at shipment.
MEMO-1 : For NTSC signals
MEMO-2 : For PAL signals
MEMO-3 : For NTSC signals (Same data as MEMO-1) --- for RM-V2550BU
: For PAL signals (Same data as MEMO-2) ---- for RM-V2550E
FACTORY: For NTSC signals (Same data as MEMO-1) --- for RM-V2550BU
: For PAL signals (Same data as MEMO-2) ---- for RM-V2550E
For some input signals, NTSC and PAL are selected automatically.
When a NTSC signal is input : MEMO-1
When a PAL signal is input
: MEMO-2
Copying the convergence memory
The convergence memory can be copied by the remote control unit or PC. (See figure below.)
MEMO-2 MEMO-1 MEMO-3 FACTORY
When data is copied, the memory into which the data is copied will lose its original data. (For example, when
data is copied from MEMO-1 to MEMO-2, MEMO-2 will becomes the memory for the NTSC signal, and lose the
PAL signal.)
When the data has been copied into the selected convergence memory area, this can be known by the display
[COPY END] on the screen. In that case, the data of the convergence has been changed into new data. If the data
is not same,the convergence will change as well.
Example : When MEMO-1 is selected
MEMO-1
= Copy to other memories : Completed when [COPY END] is displayed on the screen.
MEMO-1 + Copy to other memories : Completed when [COPY END] is displayed on the screen and at the
same time convergence deviates.
Condition : MEMO-1 data
≠
MEMO-2 data
1 2 3 FACTORY
Memory Area
NTSC
PAL
