Page 32
22
GENERAL SPECIFICATIONS

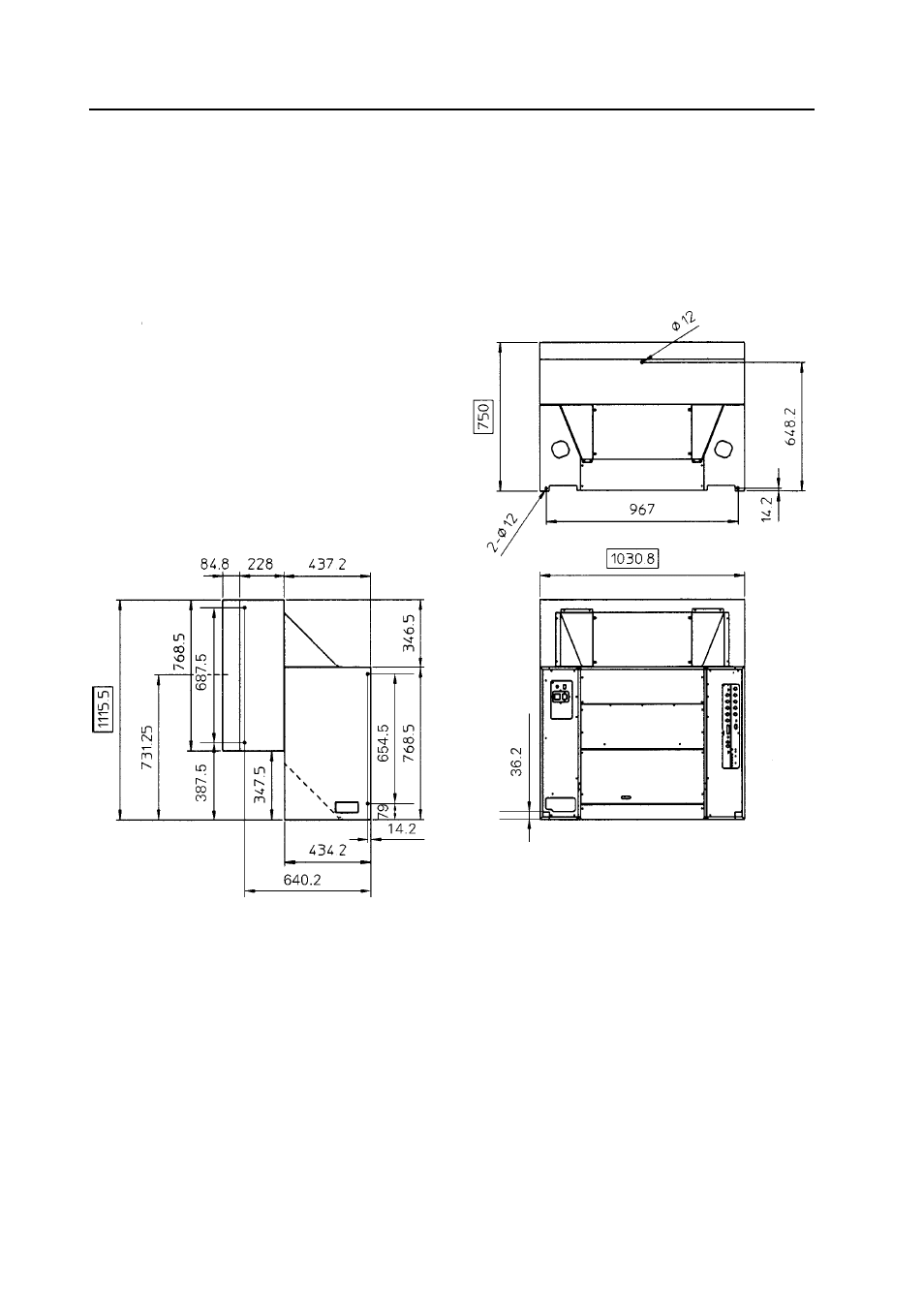

2. Diagram of system dimensions
* For the detailed system dimensions, please refer to chapter 3.
* External dimensions do not include protuberances such as screw heads etc.
(1) Single panel
RM-V2550BU, RM-V2550E + (RM-V2550S, RM-V2550S2)
unit: mm
[Fig. 2-2-1]
(Bolt mounting
hole pitch)
(Surface)
