58
INSTALLATION AND ASSEMBLY

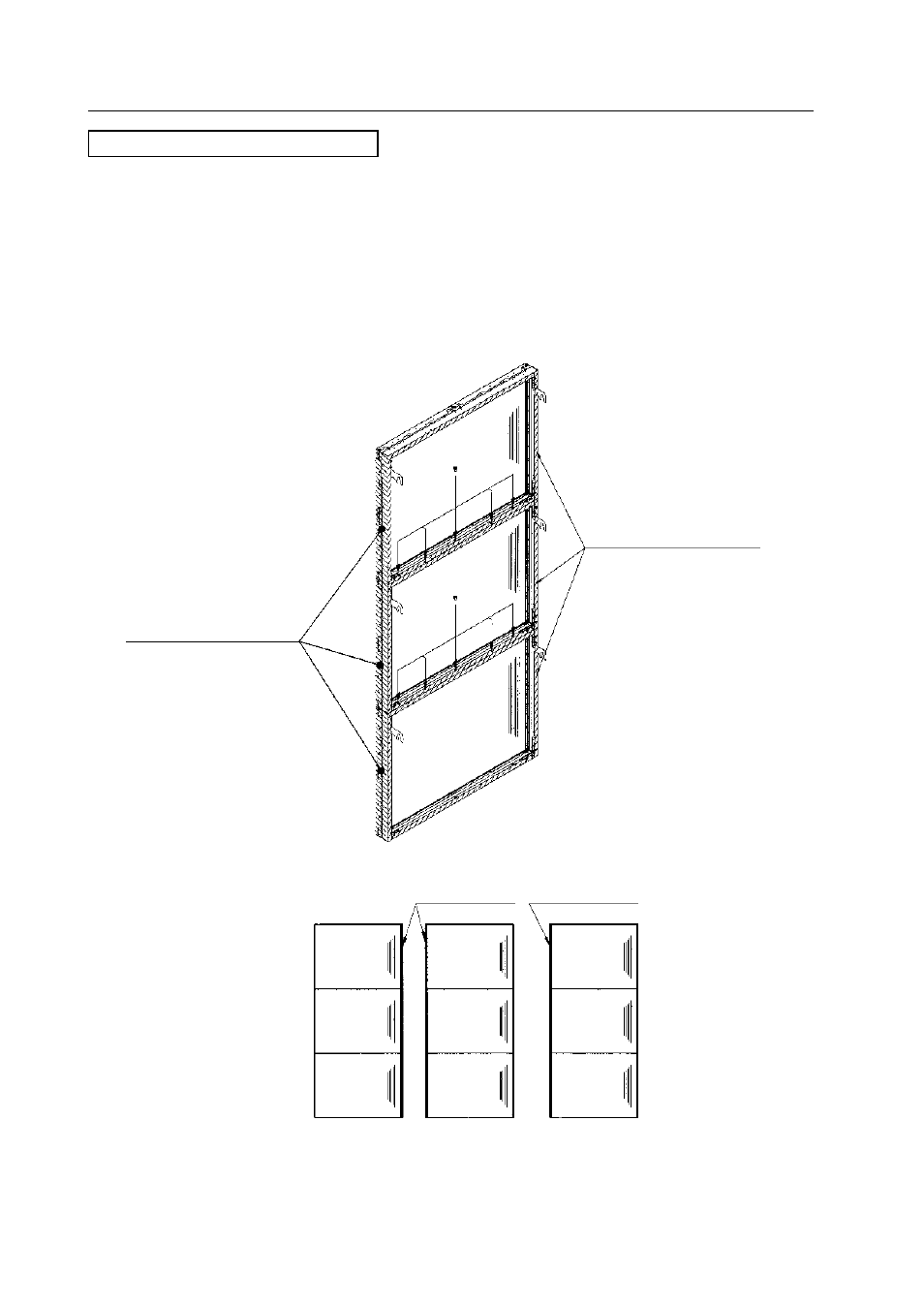

[Fig. 3-4-24]
Installing the screen frame ass’ies
[1] Attach hooking brackets (L) (R) onto all of the screen frames to be used. [Fig. 3-4-12]
NOTE) Be sure to stand the screen frames vertically during work.
[2] Connect three screen frames vertically to form screen frame ass’ies. [Fig. 3-4-24]
Adjust their positioning before attaching using screws.
¶ Front/rear positioning:
Make the rear surfaces flush.
¶ Left/right positioning:
Align the left vertically-connected screens with reference to their right side edges, the central vertically-
connected screens with reference to their left side edges, and the right vertically-connected screens with
reference to their left side edges.
Make rear surfaces flush.
Make side surfaces flush.
x 5 points
x 5 points
Left screens Central screens Right screens
Make side
surfaces flush. Make side
surfaces flush.
