35
INSTALLATION AND ASSEMBLY

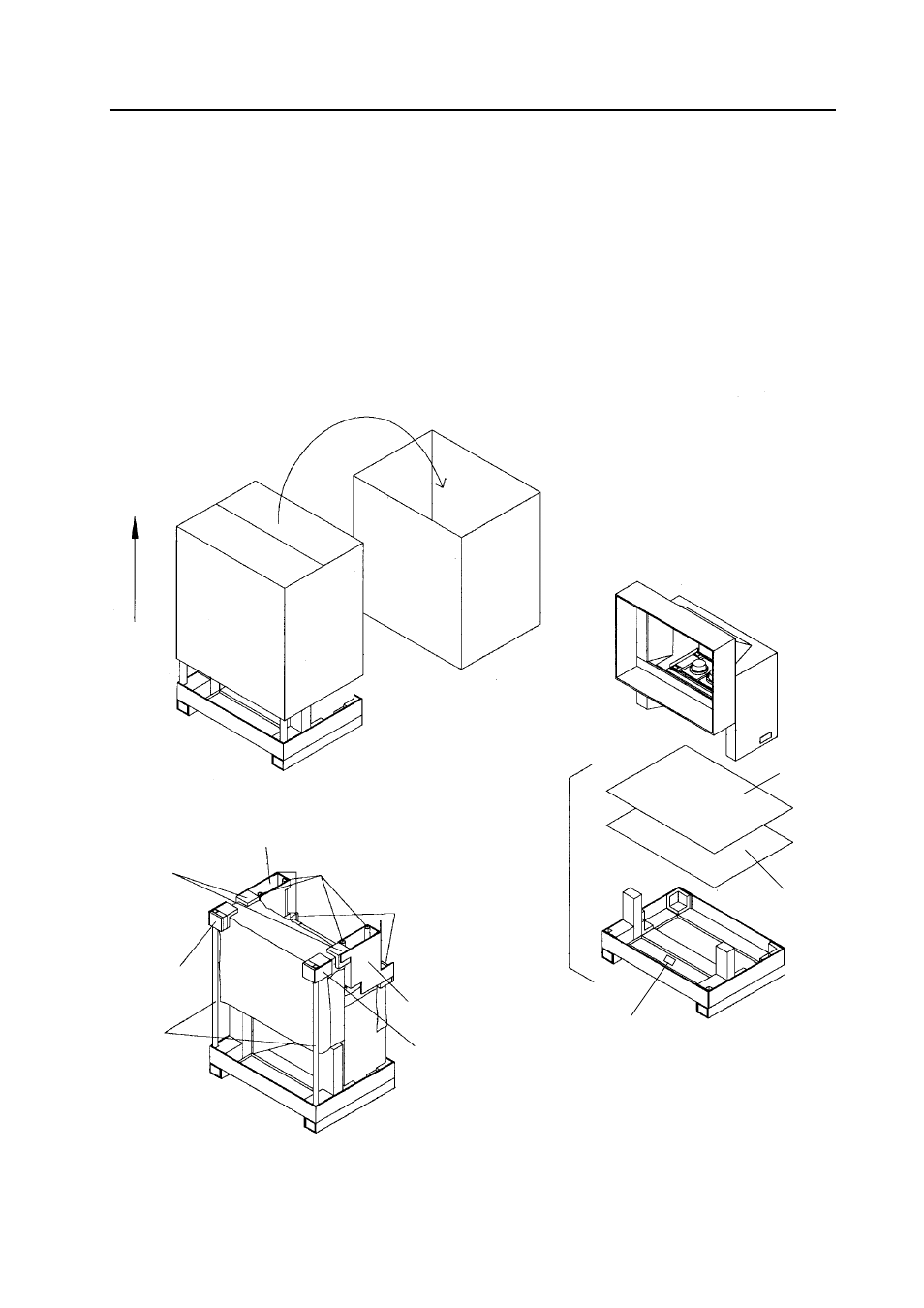

3 RM-V2550BU's cabinet and RM-V2550E unpacking procedure [Fig. 3-2-1]
[1] Remove the upper carton and place it upside down.
[2] Remove the pads C - Upper (L) (R), paper pipes A (x 2), corner pads (x 2), paper pads B (x 4), cardboard pads
(L) (R), pads D (x 2) and mirror mats (front x 1, rear x 2), and put them in the upper carton.
[3] Take the cabinet out of the under-carton.
NOTE) 1. The accessories are attached on the under-carton.
NOTE) 2. After taking out the cabinet, place it on the stand or set and fix using bolts.
(Do not leave the cabinet standing alone. Otherwise it may tumble down when someone touches
it.)
[Fig. 3-2-1]
Mirror mat
Upside down
Removal direction
Cardboard pad (L)
Corner pads
Pad C-Upper (L)
Paper pipes A
Pad C-Upper (R)
Cardboard pad (R)
Pad D
Paper pipes (B)
Under-carton
Vinyl sheet
[1]
[2]
[3]
Accessory parts
