55
INSTALLATION AND ASSEMBLY

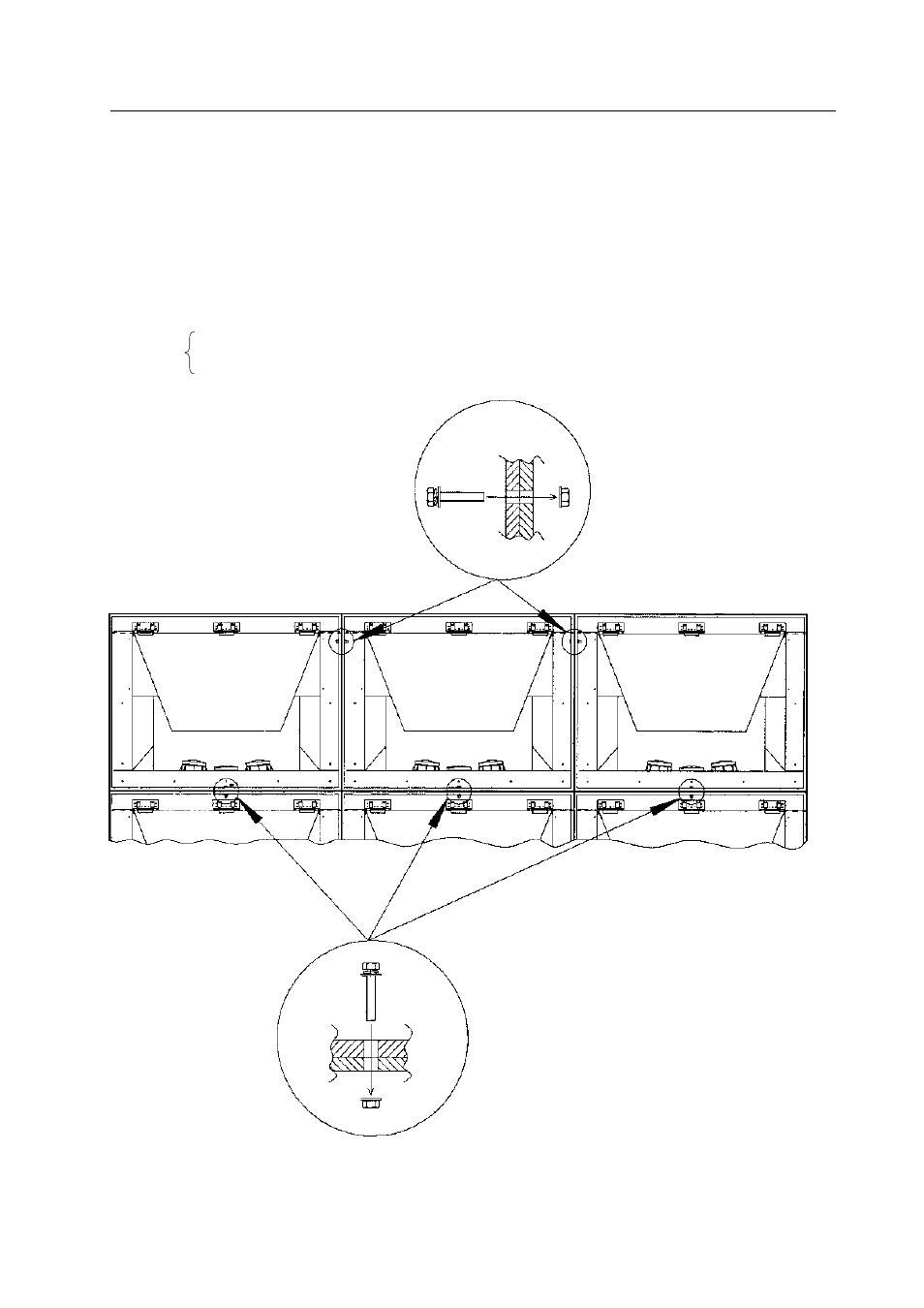

[Fig. 3-4-21]
[6] Place the cabinet of the second stage on that of the first stage. [Fig. 3-4-7]
NOTE) 1. To prevent hazard, never mount on a cabinet.
NOTE) 2. Always carry each cabinet with more than one person. (If three persons are available, two of them
should carry each cabinet from both sides and the third person should support the rear where the
center of gravity comes.)
[7] Adjust the positioning of the cabinets. [Fig. 3-4-8]
(Front/rear)
Line up the wood surfaces of the front of the cabinets.
(Left/right)
Form a cross on the center point where the 4 screens meet.
[8] Fix the connections between cabinets using bolts. [Fig. 3-4-21, 3-4-22]
Front
M8x45
x 5 (provided with cabinets)
Rear
M8x65
x 6 (provided with cabinets)
M8x45
x 2 (provided with cabinets)
(Front view)
M8x45 (x 3)
M8x45 (x 2)
* Please do not use 65mm bolts as these
may block the light path.e light path.
