5. Adjustment Mode
¶ NTSC Input Board Adjustment Mode:
Mode in which the adjustment commands of the NTSC input board can be executed.
(Adjustment items of the output board can be executed when desired)
To end the adjustment mode, input AJN.
Operation mode
AJYC Enables the NTSC input board to be adjusted.
AJN
Adjustment mode end
Power ON
Normal mode
Operation mode

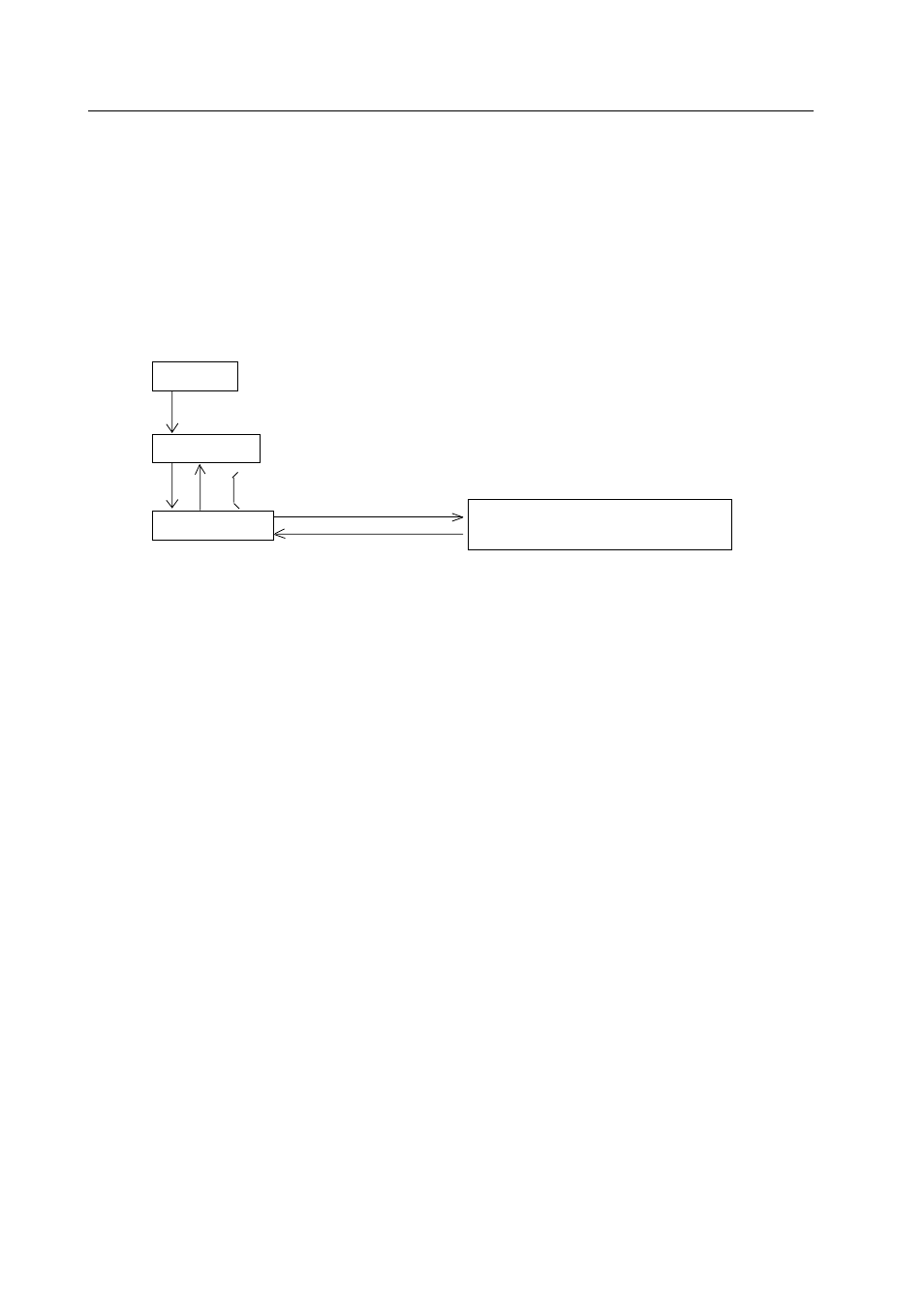

@h
NTSC input board adjustment mode
AJYC
AJN
¶ Variable scan board adjustment mode:
This is the mode for enabling communications with the optional variable scan board.
In this mode only the variable scan board adjustment commands are accepted. The
switches on the front panel will also not function.
Note that the image output will be disturbed in particular when the Mode switch is oper-
ated. Set the switch properly after the communications mode is exited.
In the operation mode:
: A Mode for communications (adjustment) with the variable scan board set.
: Variable scan board adjustment mode exited.
!
