Pioneer RM V2550BU User Manual
Page 64
54
INSTALLATION AND ASSEMBLY

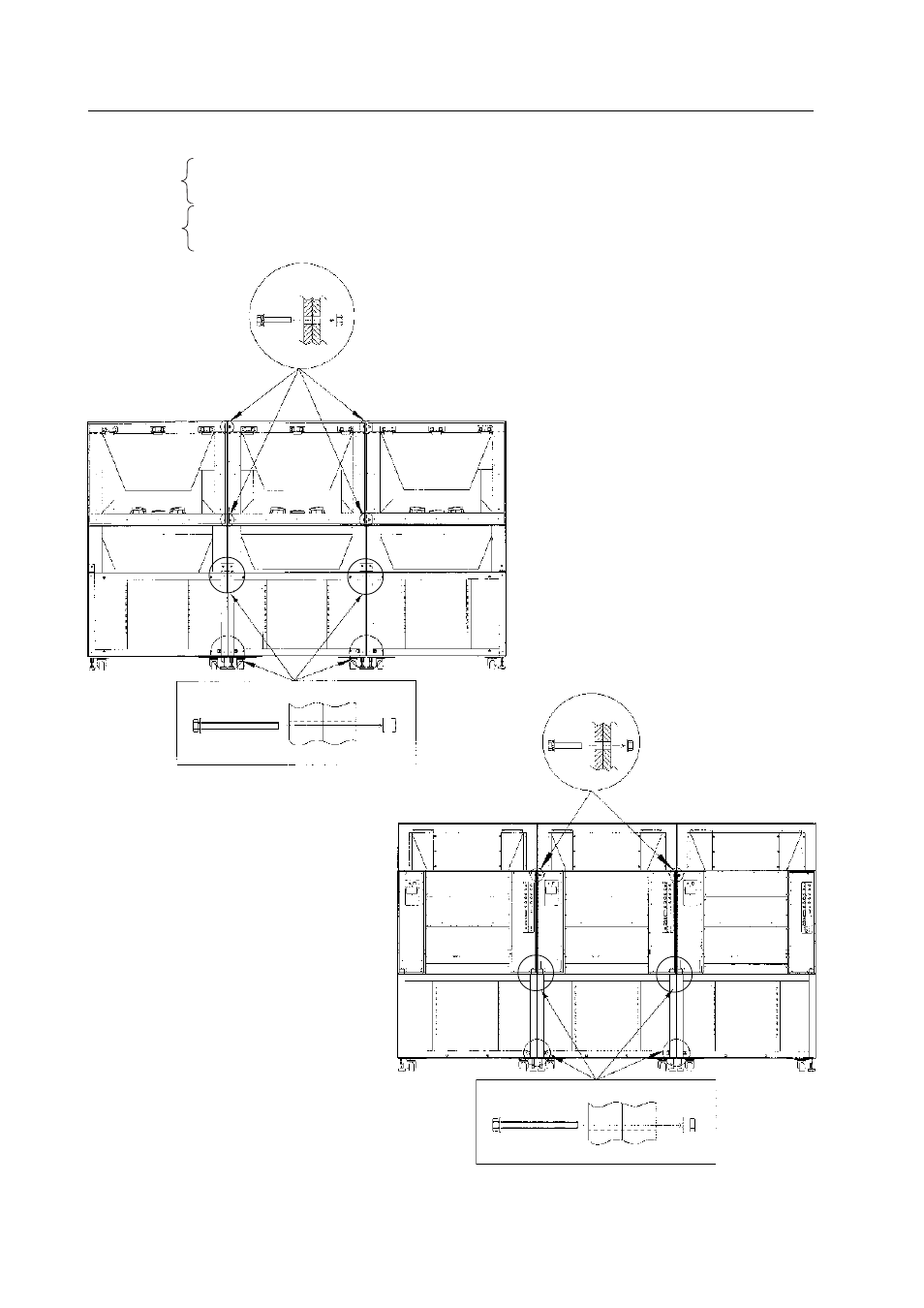

[Fig. 3-4-20]
[5] Fix the cabinets and stands using bolts. [Fig. 3-4-20]
Front M8x45
x 4 (provided with each cabinet)
Cabinets
Rear M8x45
x 2 (provided with each cabinet)
Front M10x120 x 4 (provided with each stand)
Stands
Rear M10x120 x 4 (provided with each stand)
M10x120 (x 4)
(Front view)
(Rear view)
M8x45 (x 4)
M10x120 (x 4)
M8x45 (x 2)
* Please do not use 65mm bolts as these
may block the light path.e light path.
