ADJUSTMENTS

3 Center adjustment

Set to only green and adjust the center with
V STATIC GH STATIC␣ .

Note) Please to not move the center more than

2.5cm from the initial setting (128) in the
upward, downward or left and right direc-
tions. If the center needs to be moved more
than this, this could cause malfunctioning of
the multi projection unit or harmful effects
from magnetism.

2 Adjustment signal input

For adjusting size ..................................................... Frame size picture(EX.LD Test disc GGT1072, FRAME No.

5941),Monoscope, etc.

For screen joining, linearity, color adjustment. ..... Use adjustment signals such as , cross-hatch, etc. (EX. LD

Test disc GGT1072, FRAME No. 7081,etc.)

(Note)
For the particulars about the FRAME No.,etc. of LD Test disc GGT1072,refer to the disc manual differently.

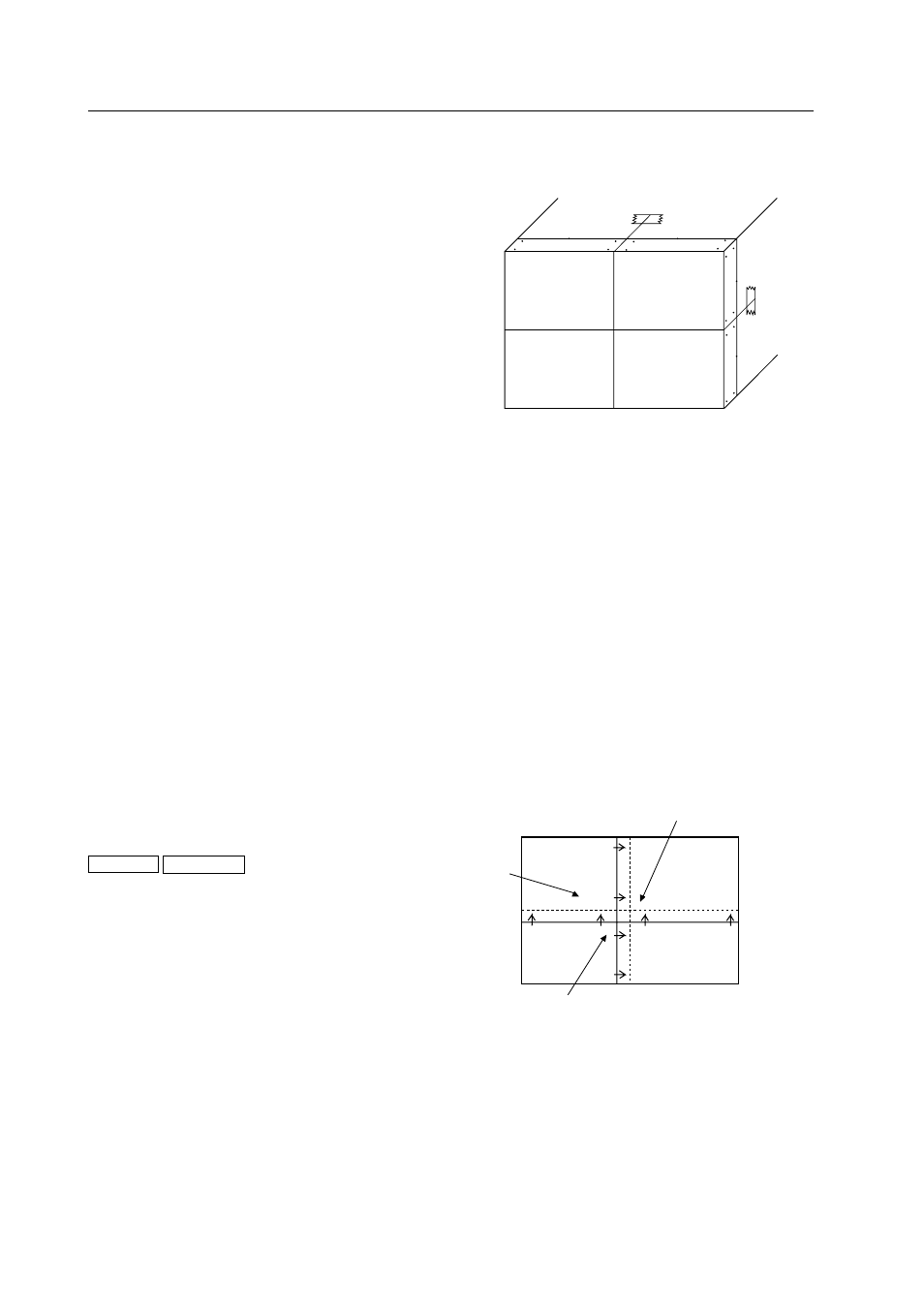

1 Measurement of screen center

The center can be found easily by pasting threads in
the spaces of the protection panels at the screen
frame.

Center

V STATIC

GH STATIC

(3) Convergence adjustment contents

The

numbers correspond to the numbers in the flow-chart.
