67
INSTALLATION AND ASSEMBLY
Notes

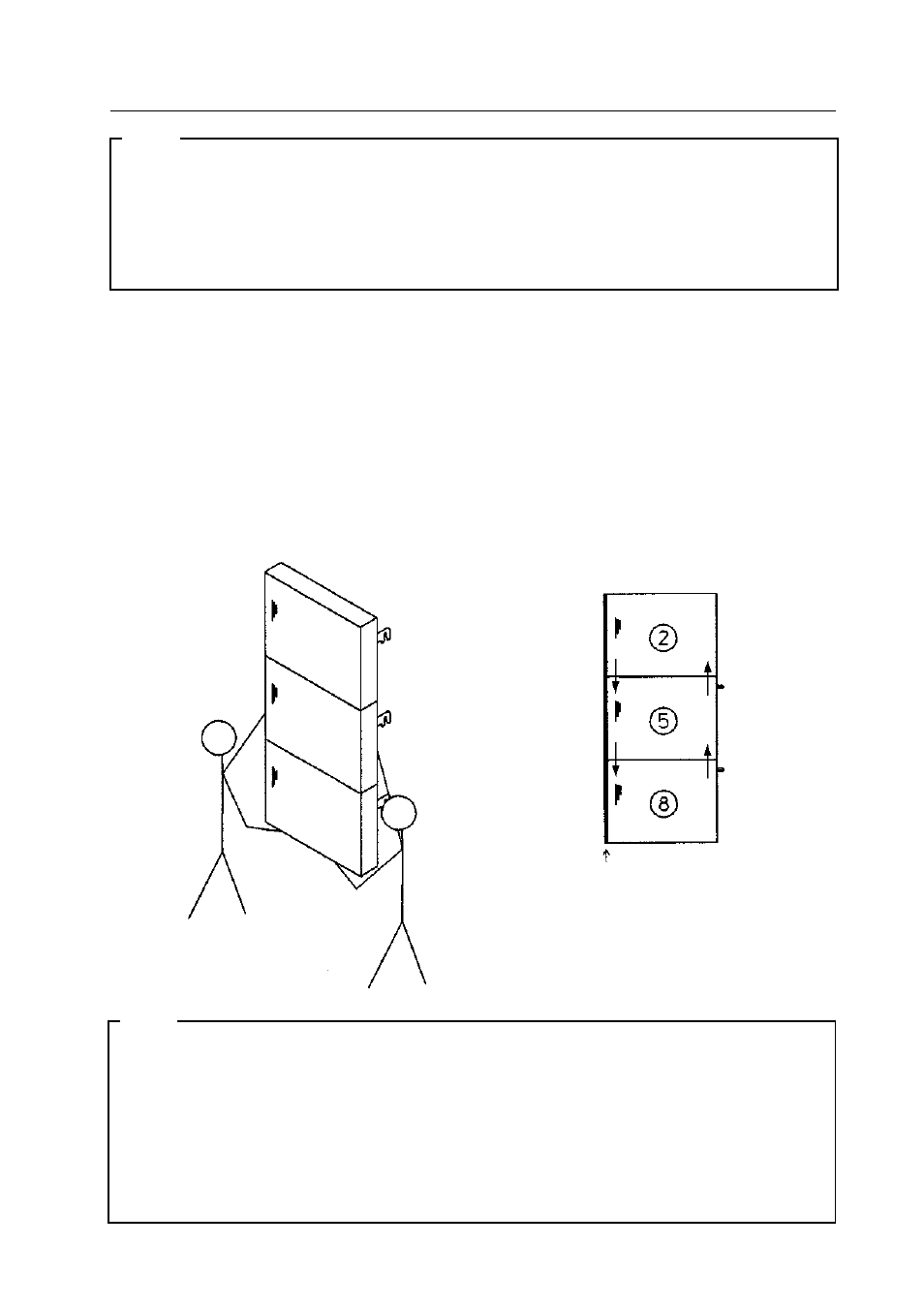

* When carrying the group of 3 vertically connected screens, make sure that 2 people hold the screen, with
one person holding each edge as in Fig. 3-4-41, and that a third person supports the top.
* Before mounting the screens on the cabinet, check that there is no dirt on the screens. If there is dirt on the
screens, wipe them clean with a soft cloth. In particular, you will not be able to clean the Fresnel surface
after mounting on the cabinet.
* For small pieces of dirt on the joints, do not use a dry cloth, but rather wipe clean with a cloth that you have
moistened with water and then wrung out well.
Notes
* There should be a position-determining pin in each of screens 4 and 7 (which have already been
mounted on a cabinet).
Since these pins protrude about 6mm, when you mount the vertically connected group of screens 2, 5
and 8, you should at first leave a gap of at least around 10mm between this group and the right-hand side
of the already mounted group (screens 2, 5 and 8) (Fig. 3-4-43a).
You should then push the group of screens 2, 5 and 8 to the left until the vertical joints come together.
When doing this, you should make sure that the pins go into the holes in the left-hand sides of the frames
of screens 5 and 8 as in Fig. 3-4-43b.
You will then be able to line up the heights of the vertical joints on the two groups of screens.
You should not carry out the fixing work yet.
3) Vertically connect screens 2, 5 and 8 (Fig. 3-4-42).
You should connect in the order 8+5, 85 +2.
Fix in a total of 4 places (left and right)
Screws:
Cross-recessed small screws (nominal diameter 4, length 25) (included as accessories)
Alignment
Left/right alignment: Align so that the joints on the left sides of screens 2, 5 and
8 form a straight line (Fig. 3-4-42).
Forward/backward alignment: Align so that the screen surfaces (wrench surfaces) are at the
same height.
4) Mount the group consisting of the 3 vertically connected screens 2, 5 and 8 on the central cabinet.
(as for RM-V2550S - see P50 [3])
(Fig. 3-4-41)
(Fig. 3-4-42)
Align so as to form a straight line
