Introduction
1
Di2510/Di3010/Di3510 1-11

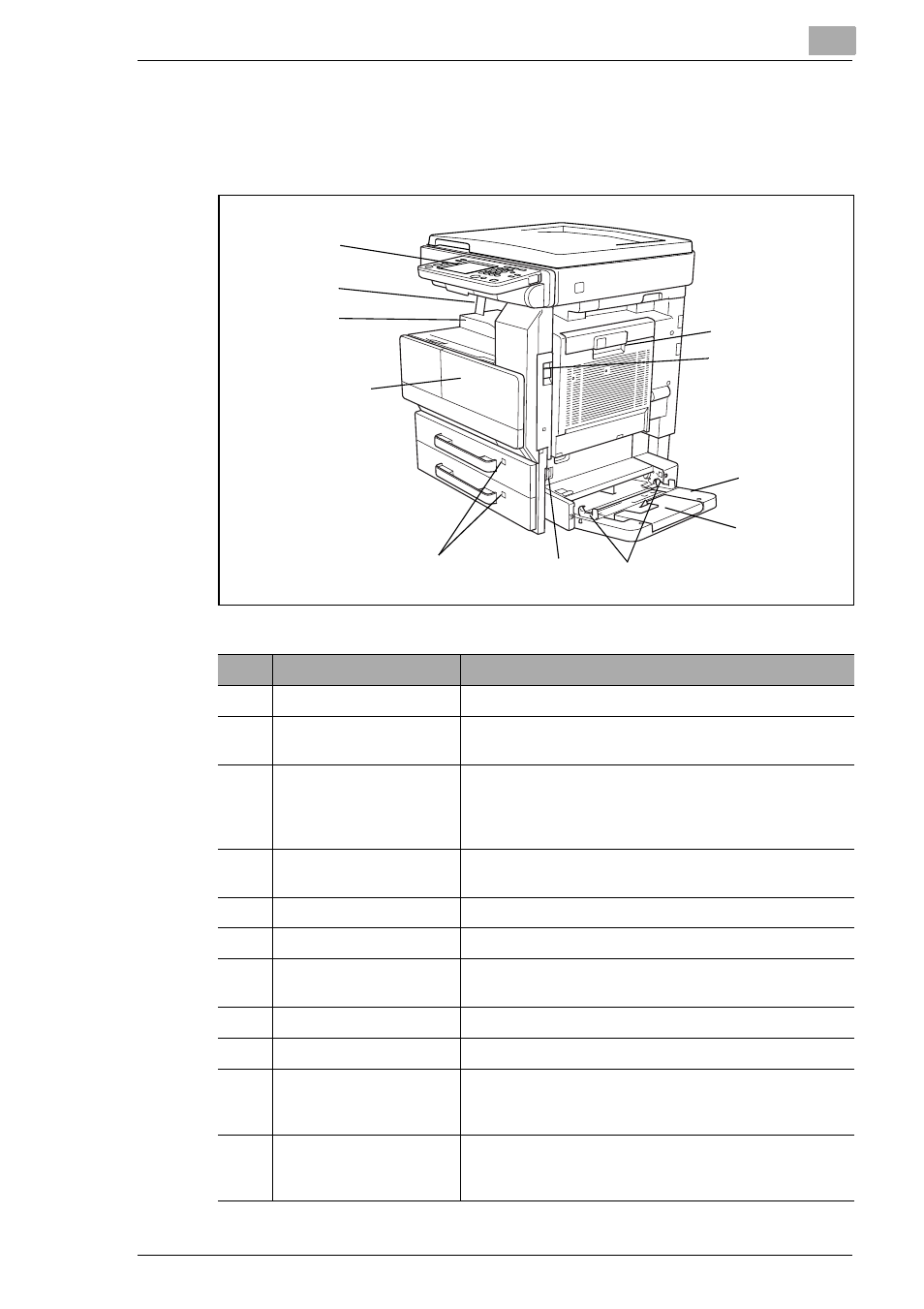

1.6 Part Names and Their Functions
Copier
9
8
6
3
1
2
4
10
5
11
7
No. Part Name Description
1 Right-side door Opened when clearing paper misfeeds.
2 Right-side door release
lever Used to open the right-side door.
3 Multiple bypass tray Used for manual feeding paper for making copies and
printouts.
Can be loaded with 150 sheets of paper.
Can be loaded with special paper, see page 9-10
4 Tray extension Open the tray extension when loading large-sized
paper.
5 Paper guide Adjust to the width of the paper.
6 Release lever Opened when clearing paper misfeeds.
7 Paper supply indicator As the amount of paper in the paper drawer decreases,
the area that appears in red increases.
8 Front door Opened when replacing the toner bottle, see page 12-2
9 Paper output tray Collects printed pages fed out of the copier facing down.
10 Paper stopper Prevents printed pages from falling out of the paper
output tray
Used when the optional sorter is installed.
11 Touch panel Liquid crystal display in the control panel.
Used to specify various copy settings and program or
change functions.
