1-11
Chapter 1 Before using this device

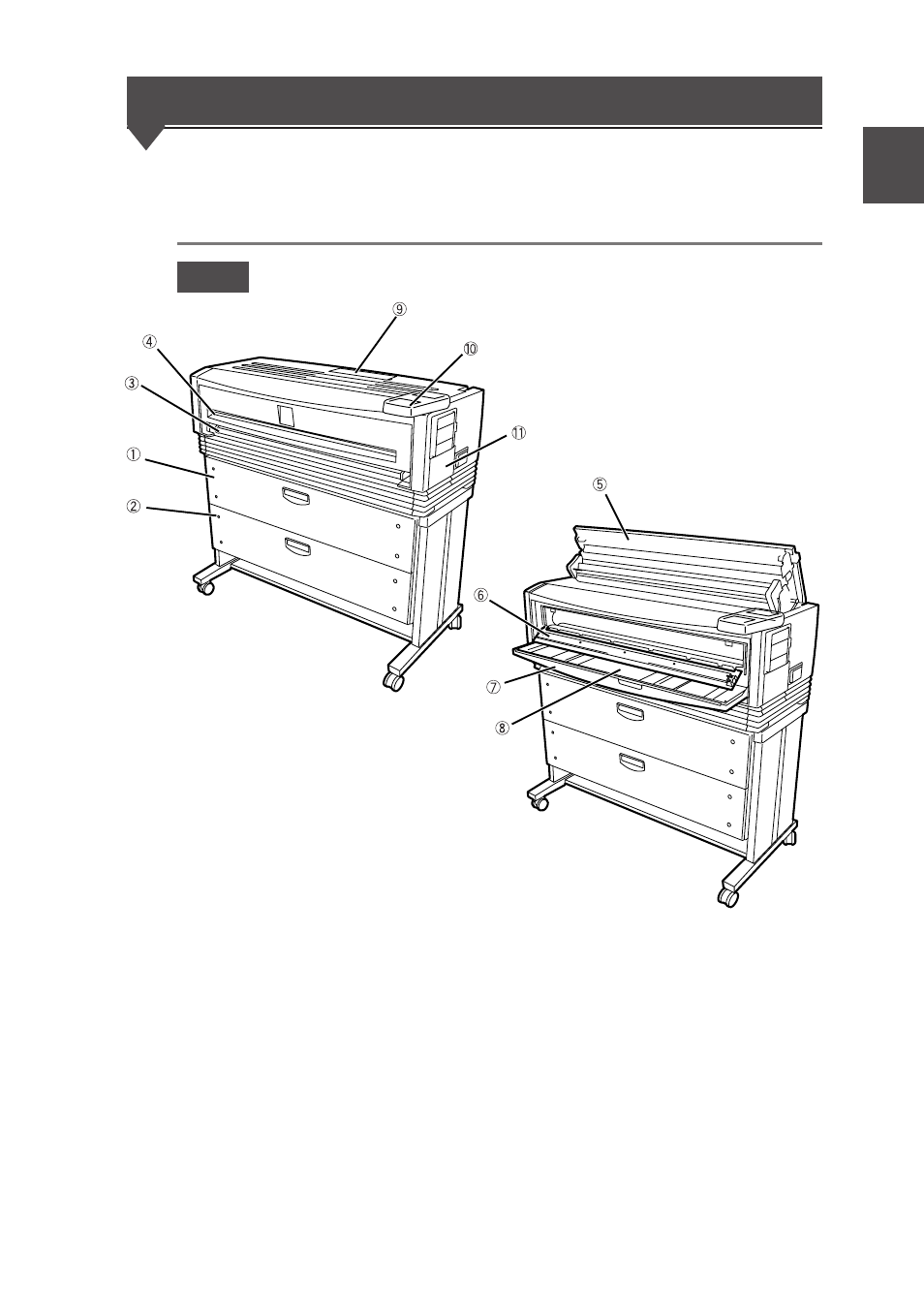

The names and functions of each part
Front
1 Roll 1 drawer (door 1) Install paper roll. (⇒ page 2-11)
2 Roll 2 drawer (door 2) Install paper roll. (⇒ page 2-11)
3 Manual feed drawer (door 4)
Open this drawer when a paper jam occurs during
manual feeding. (⇒ page 14-3)
4 Finished drawing outlet Drawings exit from here.
5 Top cover (door 6) Open this cover when a paper jam occurs near the top door.
(⇒ page 14-3)
6 Fixation door (door 7) Open this door when a paper jam occurs in the vicinity of the finished
drawing outlet. (⇒ page 14-3)
7 Manual paper feeding guide (door 8)
Open this door when feeding the paper manually. (⇒ page 2-34)
8 Manual feed inlet Insert paper from this inlet during manual feeding. (⇒ page 2-34)
9 Toner cover Open this cover when replacing toner. (⇒ page 2-19)
0 Control panel The LEDs and LCD which indicate device status and the keys to set
various functions are laid out here. (⇒ page 1-14)
A Waste toner door Open this door to replace a waste toner bottle. (⇒ page 2-24)
This section explains the names, usage information, and functions of each
part of this device.
