▼Setting parameter Items
Chapter 5 "SETUP" Menu
■WRITE MODE
Allows for setting of the drawing overlap method. When the HP-GL data is
used for setting the WRITE MODE, the data setting is enabled. The default
setting is "OR WRITING". This setting is changed on the third hierarchy.
: Default value
OR WRITING Drawing is overlapped.
OVER WRITING Drawing is overwritten.
■MIRROR
Allows for setting whether to produce a plot by turning over the plot
around the drawing center line in parallel with the X axis (line
symmetry).
This setting is performed on the third hierarchy.
: Default value
OFF Mirror plotting is not performed.
ON Mirror plotting is performed.

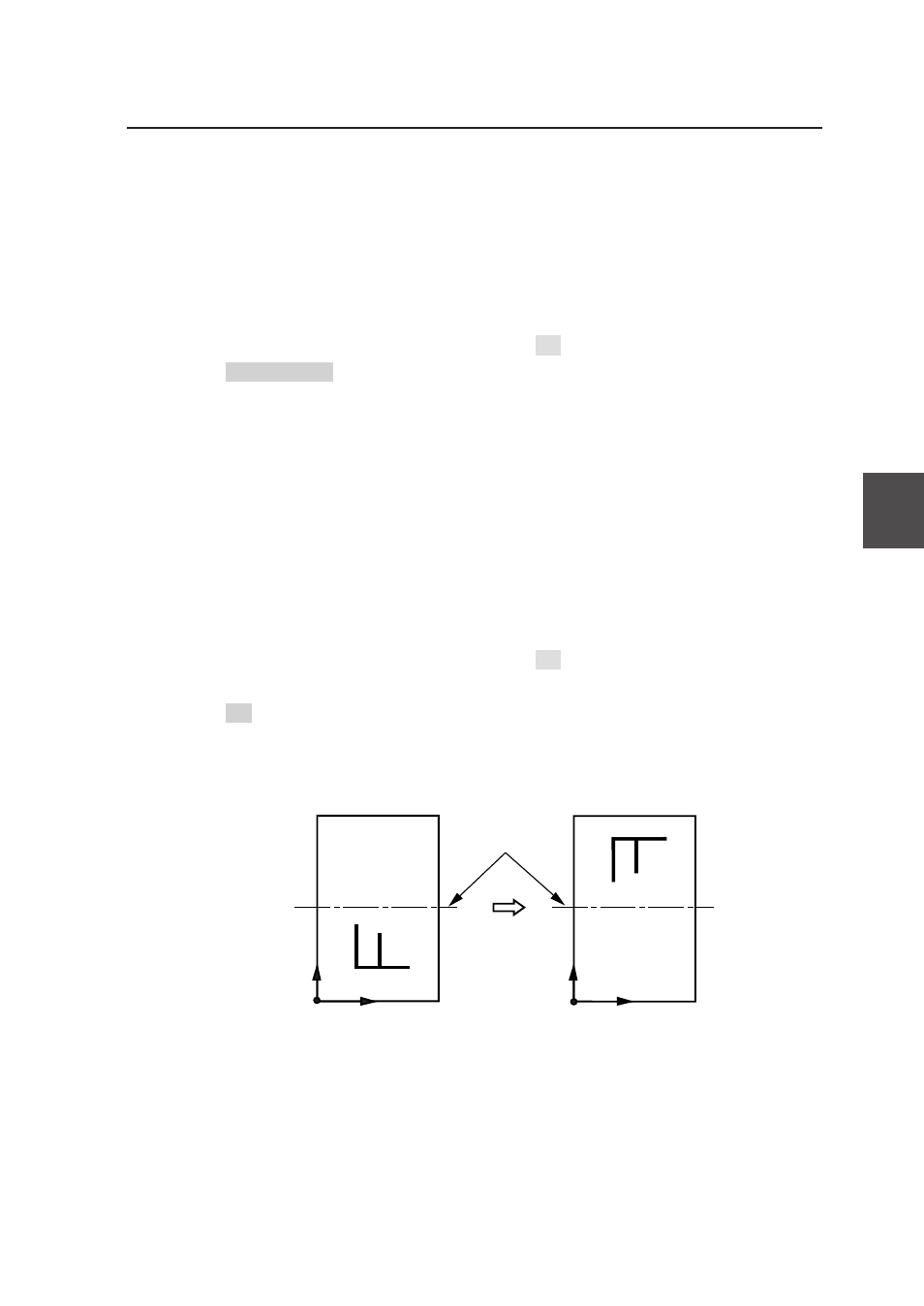

Drawing center
line in parallel
with X axis
X X
At OFF At ON
Y Y
