▼When an error message appears
Chapter 14 Troubleshooting
■Clearing paper jam in roll 1 or 2 paper roll drawer (if so equipped)
* X denotes the door number 1 or 2.
1

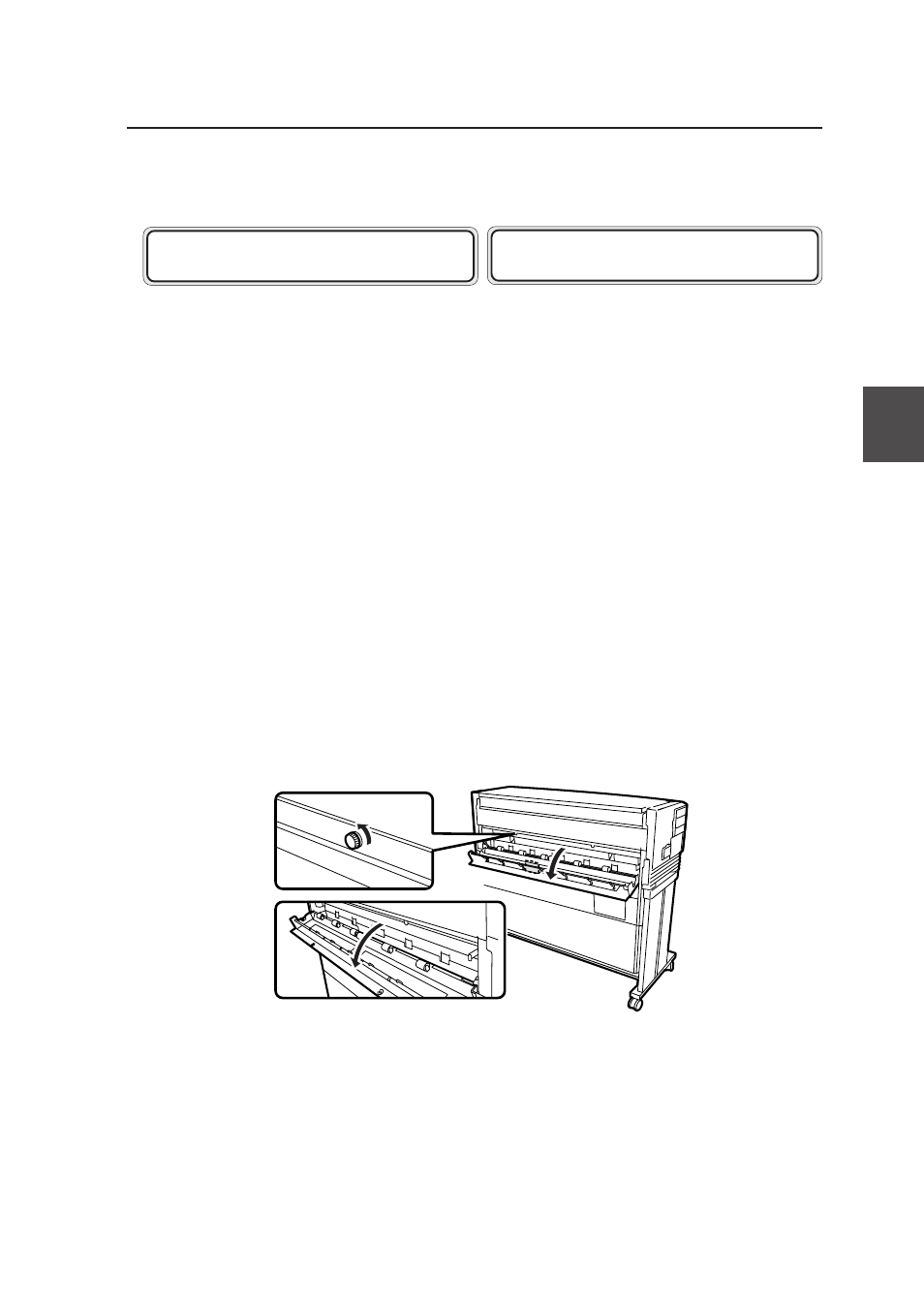

(When DOOR 5 is displayed) Open the cutter door (⇒Step 1
on page 14-7).
Loosen the two knobs and open the cutter door
gently.
2
Pull out the Roll 1 or Roll 2 drawer.
Use your fingers to grasp the handle at the
center of the drawer and pull the drawer out
gently.
(The illustration indicates a case where the Roll
2 drawer is opened.)
O P E N D O O R X
R E M O V E P A P E R
O P E N D O O R 5 , X
R E M O V E P A P E R
