StorageTek 9840 - Manual (Page 88)

Rack-mountable Tray
3-38 Sixth Edition 95741
■
Rack-mountable Tray
This section contains the following information:
• “Install Tray Rails”
• “Insert Tray” on page 3-40
• “Attach Tray Power Cord” on page 3-45
• “Install Host Interface Cables” on page 3-46
• “Power-On Rack” on page 3-52
Install Tray Rails
The instructions in this section describe how to install the drive tray rails on
both types of rack trays. The drive tray instructions follow below while the CSL
instructions begin on
page 3-39 .
Drive Tray Rail
Use the instructions below to attach the slide rail to a drive tray:
1. Remove the inner portion (drive-tray rail) of the slide-rail assembly.
2. Install rails on the bottom edge of a drive tray (see figure below).
Notes:
1. The spring latch faces away from the drive tray and toward the outside of the
tray. The spring latch must fit into the hole of the rack slide.
2. In later models, the spring latch is modified.

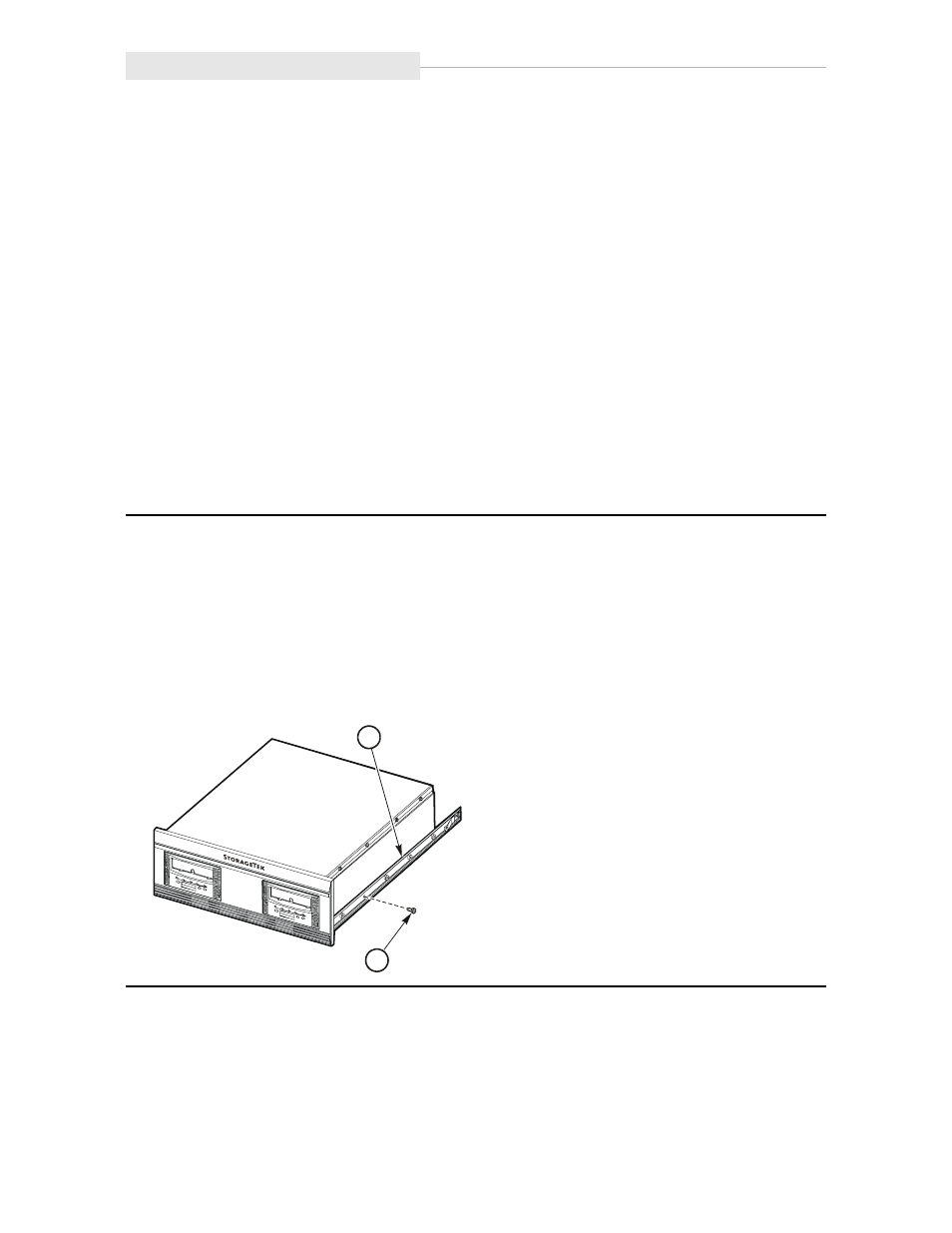

1. Drive tray rails (2)
2. Screws (5)
C53259
1
2
