Cartridges
9840 Tape Cartridge

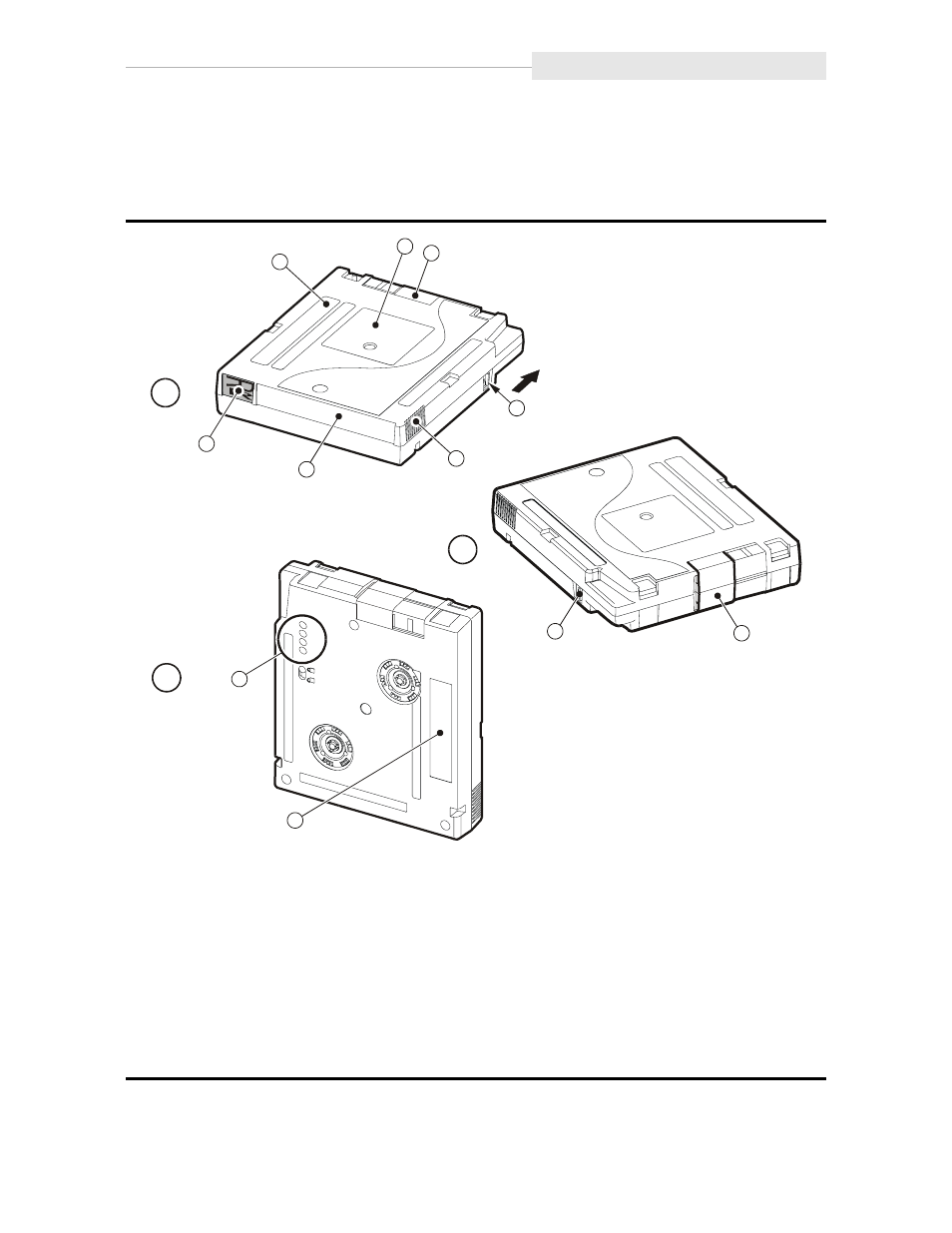

Figure 1-15 provides specific features of the 9840 tape cartridge.
Figure 1-15. 9840 Tape Cartridge
Components of the 9840 Tape Cartridge
A. Rear view
B. Front view
C. Bottom view
1. Manufacturer label (Std - White, VolSafe - Yellow)
2. Customer label
3. Access door
4. Write-protect switch (Std - White, VolSafe - Yellow)
5. Finger grips
6. VOLSER label
7. Media ID (Std - White, VolSafe - Yellow)
(human or barcode readable)
8. Media ID (machine readable)
(First dimple recessed on VolSafe)
9. Manufacturer Part ID
C53217
1
3
5
6
A
7
2
4
B
4 3
8
9
C
