9738 Library Attachment

3-16

Sixth Edition

95741

9738 Library SCSI Cable(s)

The 9840 Tape Drive connects to a SCSI bus and supports only the differential
alternative.

Note: Term power is not supplied by the 9840 Tape Drive, it must be supplied

by the host bus adapter card.

All host systems should have either the SCSI ports labeled or the international
symbols displayed (

Figure 3-6 on page 3-16

) to indicate the electrical

configuration for that port.

CAUTION:

Maximum cable length. The maximum cable length for the differential
alternative is 25 m (82 ft). Make sure that the total cable length (including
all daisy-chain cables) from the host to the last device does not exceed
the maximum length.

Use the following instructions to attach the SCSI drives to the 9738 Library:

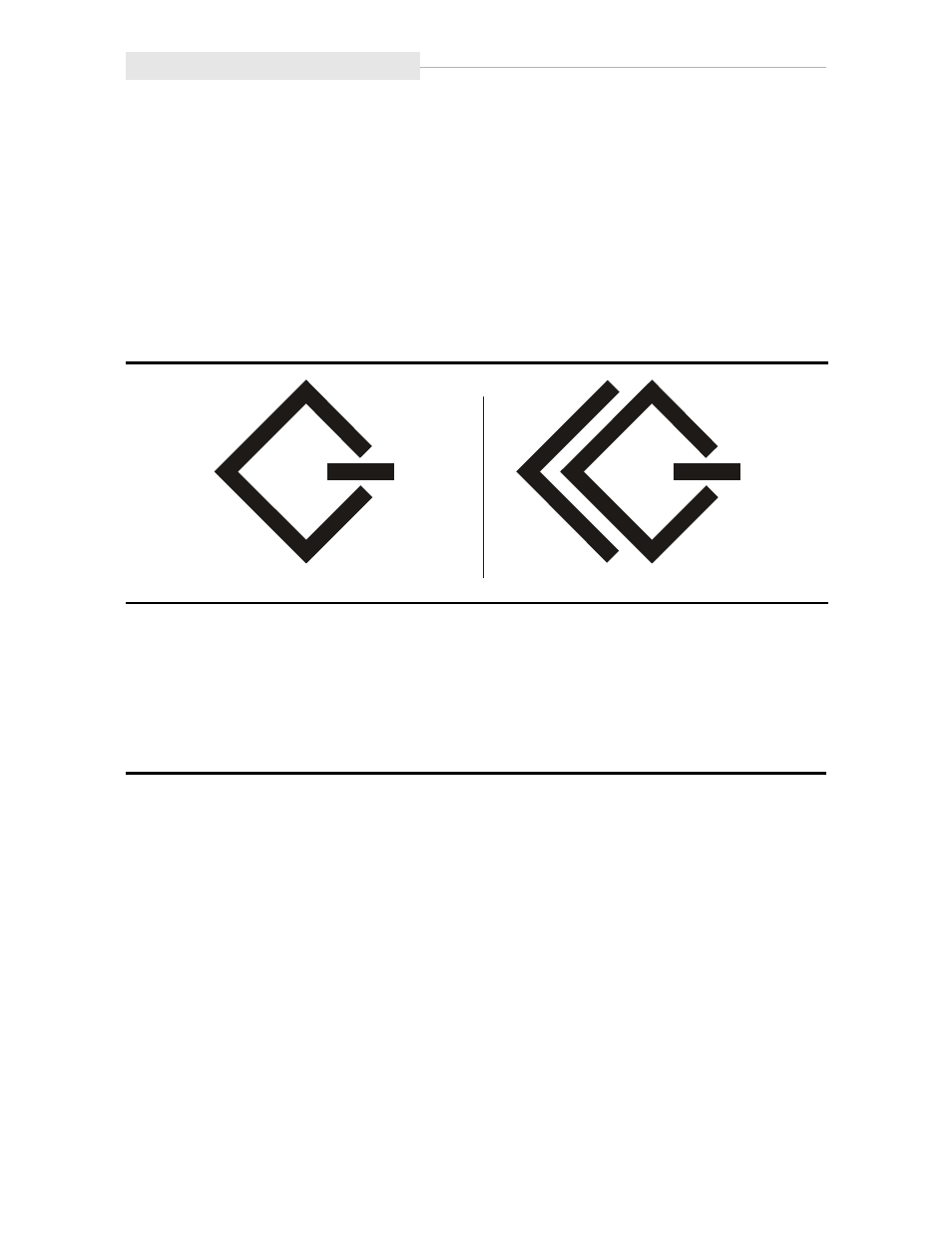

Figure 3-6. SCSI International Symbols

1. Mark each SCSI cable with drive position number and the device address (SCSI ID),

information is used in

Chapter 6, “Menu System.”

SINGLE-ENDED

DIFFERENTIAL

C53371
