Operator Panels
■
Operator Panels
This section describes the operator panel switches, indicators, and the operator
panel display for the 9840 Tape Drive. There are two operator panels
(
Figure 1-10 ) for the 9840 Tape Drive. They are:
• “Standard Operator Panel” on page 1-8
• “CSL Operator Panel” on page 1-13
Either operator panel enables you to view the configuration of the 9840 Tape
Drive, and notifies you when further support is required.
Note: The 9840 Tape Drive and use small push-button switches. The term
switch or switches is used to identify them throughout this manual.

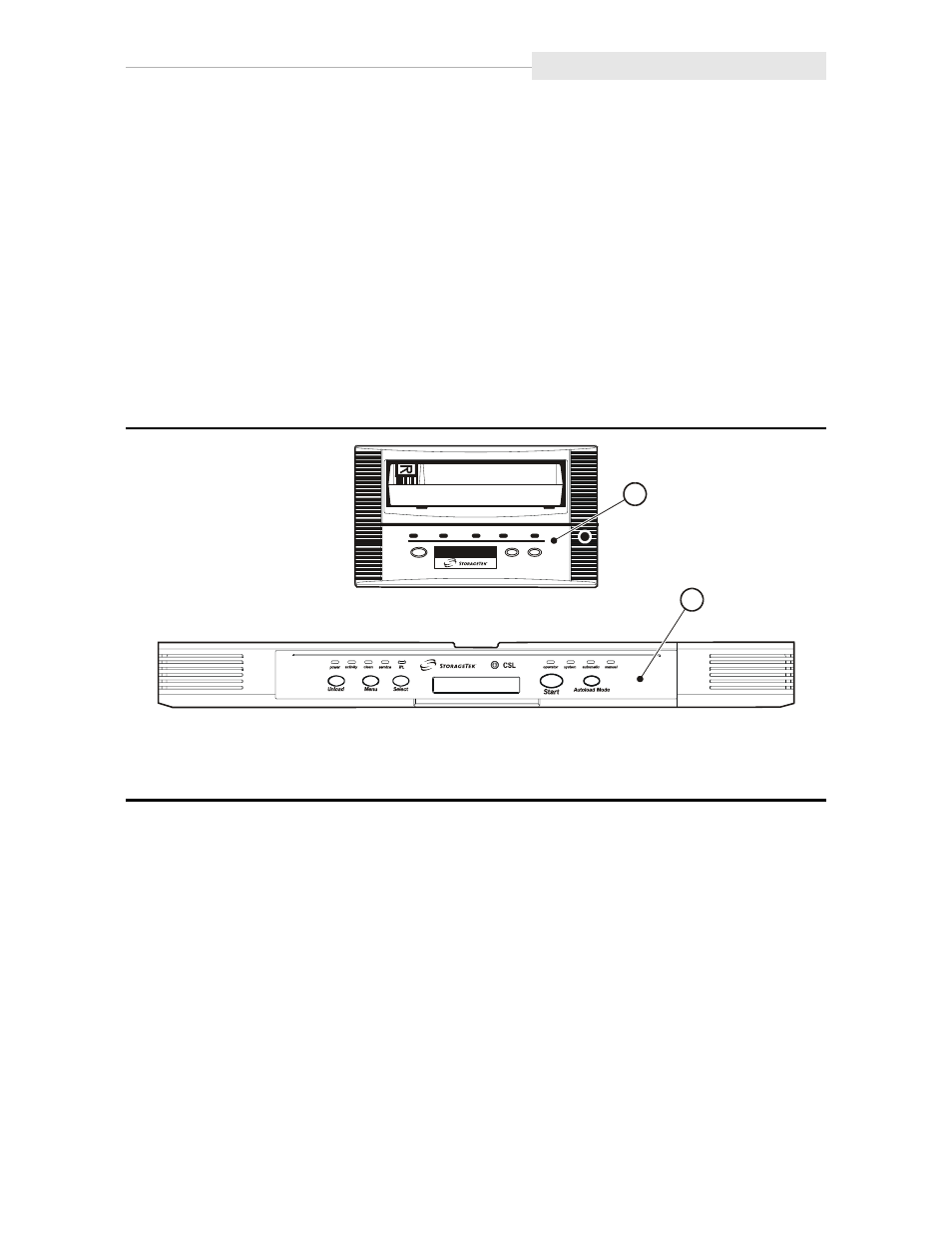

Figure 1-10. 9840 Tape Drive Operator Panels
1. Standard Operator Panel
2. CSL Operator Panel
C53673
