CSL Cartridge Loading/Unloading
5. Insert the bottom-back edge of the cartridge into the CSL input bin.
6. Slide the front edge of the cartridge into the CSL.
7. Slowly release the CSL spring-loaded bookend and ensure it touches the
loaded cartridges.
8. Check that all loaded cartridges are seated correctly.
Note: Ensure that cartridges are aligned vertically and horizontally within
the input bin and that the spring-loaded bookend is pressed firmly
against the cartridges.
Cartridge Unloading
Cartridges are ejected from the feed channel into the output bin ( Figure 5-12 ).
One to seven cartridges may be ejected into the CSL output bin.
Note: When unloading cartridges from the CSL output bin, ensure the spring-
loaded bookend does not slam into the feed channel.
To correctly unload a cartridge from the output bin, follow these instructions
and refer to
Figure 5-12 :
1. Move the CSL spring-loaded bookend to the left and hold it in this position
while unloading cartridges.
2. Grasp the cartridge(s) and tilt the cartridge back slightly.
3. Remove the cartridge(s).
4. Slowly allow the CSL spring-loaded bookend to touch the feed channel.
Note: Allowing the output or input bin bookend to slam into the feed
channel may cause drive errors.

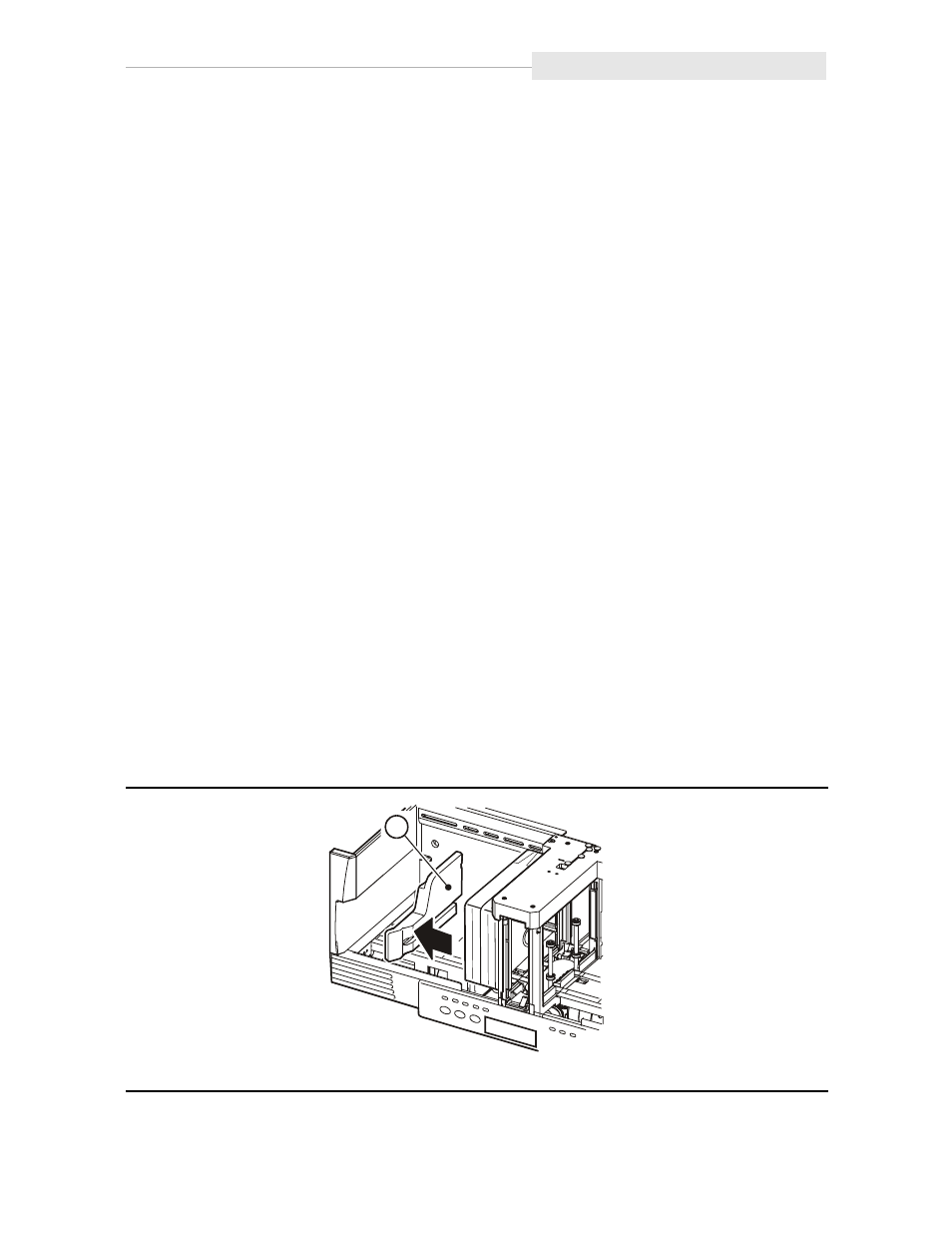

Figure 5-12. Cartridge Unloading
1. Output bin bookend
C53662
1
