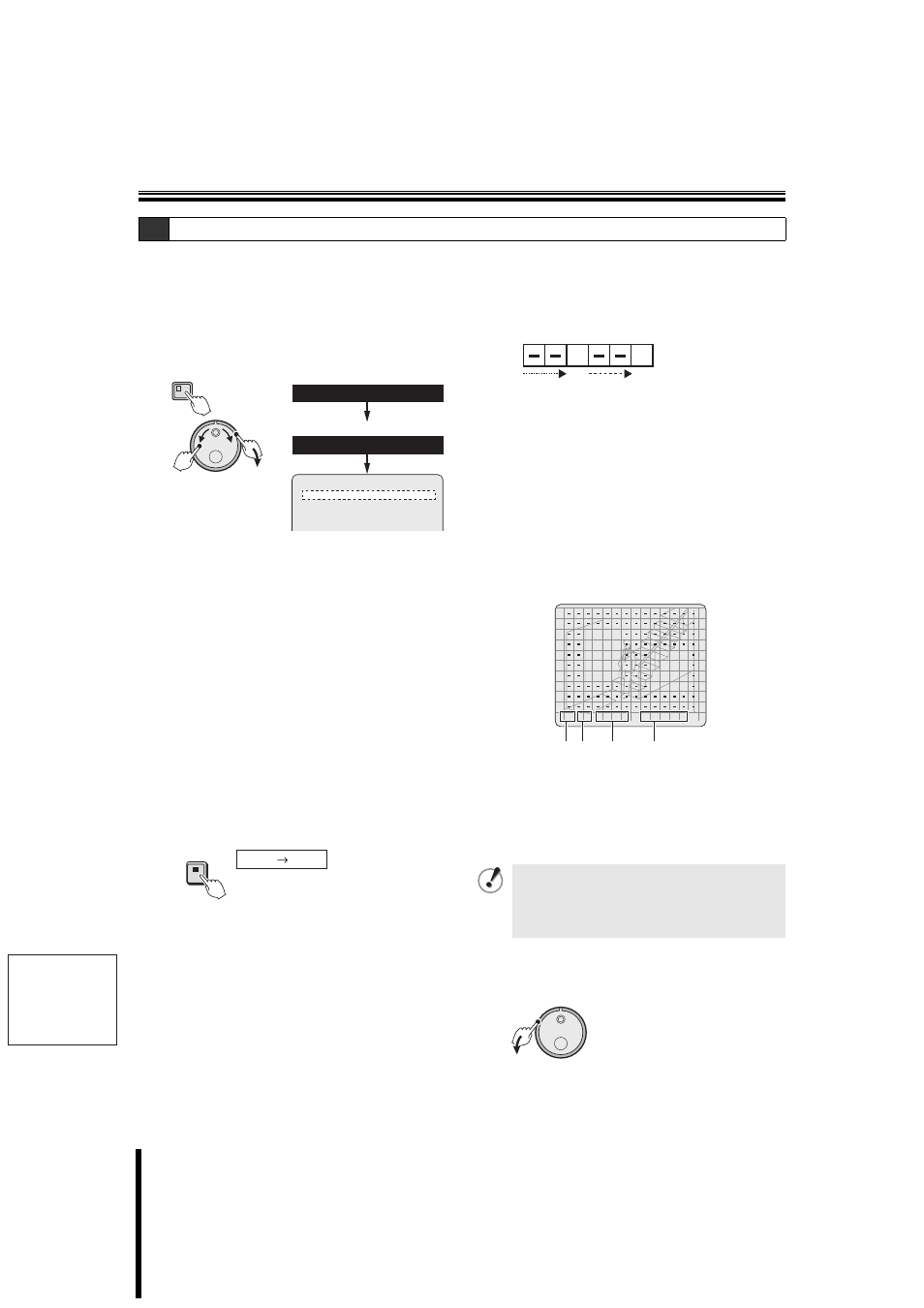

Page 60
English
Recording settings
59
How to set
1
Set "TIME PERIOD A" and "TIME PERIOD B" using
2
Display the
explained in "Displaying the recording settings
screen", and then turn the S-dial clockwise. (P39)
The "OFF" field of ALARM RECORDING starts
blinking.
3
Display the motion sensor screen
1
Turn the J-dial to select "ENABLED" for ALARM
RECORDING, and then turn the S-dial clockwise.
2
Turn the J-dial, select ALARM TRIGGER, and
turn the S-dial clockwise.
Selections:
ALARM/SENSOR/ALARM AND SENSOR/ALARM
OR SENSOR
3
Turn the J-dial to select "SENSOR", and then
turn the S-dial twice clockwise.
The motion sensor screen is displayed.
4
Set the SENSOR.
Example:
• Camera number selection: Channel 3 (CH03)
• Time period A: T-1
• LEVEL: 2
• MODE (detection method): A AND B
1
Press camera selection button 3.
The channel display changes to "CH03".
2
Turn the J-dial to move the cursor to the desired
sensor location, and then turn the S-dial
clockwise.
3
Turn the J-dial, set the sensor to "A", and turn
the S-dial clockwise.
When "A" is accepted, the cursor moves to the right,
to the next position.
Repeat the procedure to move the cursor, and set
the sensor for A and B.
4
Turn the J-dial to move the cursor to the time
period selection "T-1", and then turn the S-dial
clockwise.
The "T-1" indicator starts blinking.
5
Turn the J-dial to select "T-2", and then turn the
S-dial twice clockwise.
The "OFF" indicator of LEVEL starts blinking.
6
Turn the J-dial to select LEVEL to "2", and then
turn the S-dial twice clockwise.
The "A" field of MODE starts blinking.
7
Turn the J-dial, select the "A AND B" for MODE,
and then turn the S-dial clockwise.
When detection method is accepted, the cursor
moves to the upper left position.
5
Set the following contents using the same
procedure
• Channel number display
• Time period
• LEVEL
• MODE
6
To exit, turn the S-dial counterclockwise.
Operation returns to the
screen.
G-5
Motion sensor setting
MENU
(J)
(S)
ALARM RECORDING : OFF
PICTURE QUALITY : ENHANCED
AUDIO RECORDING : ON
ALARM INTERLEAVE : ONLY
7.ALARM REC MODE SET
2.RECORD SET
3
CH01 CH03
The LEVEL and MODE settings can be different for the
time periods (T-1, T-2, T-3 and T-4) of TIME PERIOD A,
but the location of the motion sensor is fixed. The
motion sensor cannot be set to different locations for
the different time periods.
A
B
CH03 T-2 LEVEL : 2 MODE : A AND B
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
1 4
6
7
(S)
