Sanyo DSR-3706PA - Manual (Page 10)

English

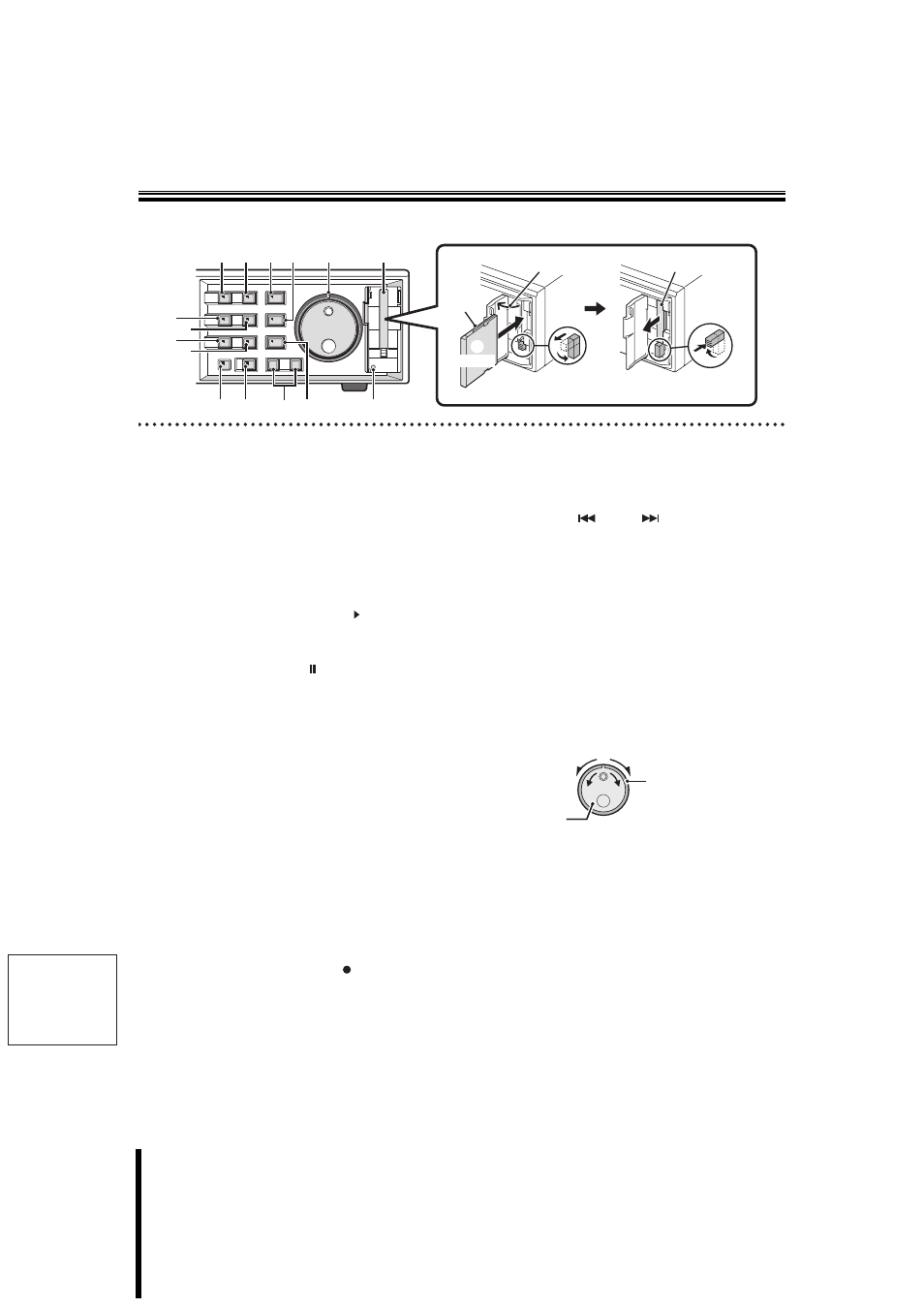

Names and functions of parts (front panel)
9 Foreword
J Menu button and indicator (MENU)
On: The menu is displayed.
Off: The EXIT/OSD button is pressed.
K Exit/Operation screen display button and indicator
(EXIT/OSD)
On: Displaying the channel and operations information
when switching from the menu screen, etc. to the live
image or the playback screen.
Off: The main or other menu is displayed.
The channel or operational information is hidden.
L Playback/Stop button and indicator ( PLAY/STOP)
On: Playback of video recorded on the hard disk.
Off: The playback is stopped.
M Pause button and indicator ( STILL)
On: Still image display.
Off: Still image display cancelled.
N Zoom button and indicator (ZOOM)
On: Digital zoom operation.
Off: The digital zoom operation is cancelled.
O Search button and indicator (SEARCH)
On: Search for a recorded image.
Off: Exiting the search screen.
P Automatic camera scrolling button and indicator
(SEQUENCE)
Blinking: Automatic scrolling of live video.
Off: Automatic scrolling cancelled.
Q Copy button and indicator (COPY)
On: When currently copying video from the hard disk to
the archive area or other recording media.
Off: When copying operation is over and cancelled.
R Record/Stop button and indicator ( REC/STOP )
On: Normal recording (if pressed longer than 3 seconds,
the REC/STOP indicator turns off).
Off: Recording is over.
S Timer-controlled recording button and indicator
(TIMER)
On: Timer-controlled recording or standby.
Off: When pressed again (cancel)
T Alarm buttons ( ALARM )
When an ALARM button is pressed during playback or still,
the digital video recorder skips to the next earlier or next
later alarm.
U Shuttle hold button and indicator (SHUTTLE HOLD)
On: The rotation angle of the shuttle dial is locked.
Off: When pressed again (cancel)
V Menu reset button (MENU RESET)
If the button is pressed after menu-setting, the items
displayed on the screen will be reset to their default values.
W CompactFlash card slot
Verify the correct orientation of the CompactFlash card or
Microdrive before inserting it into the slot.
X Operating dials (SHUTTLE/JOG)
During playback:
• The jog dial changes the playback speed.
• The shuttle dial fast-forwards or fast-reverses playback.
During menu display:
• The jog dial moves the cursor and changes settings.
• The shuttle dial confirms settings.
J
N
O
P
Q
R S T U V
K L M X W
W
1 2
3
2
1
Front
Open Pull out
Insert
Fold down
(lock) Lift and
push
Jog dial
(J-dial)
Shuttle dial
(S-dial)
