Viewing recorded video
How to use 20
The zoom function is not available in multi-screen, plus
screen mode or on the monitor connected to MON2 terminal.
1 Press the ZOOM button.
A zoom frame appears in the center of the screen.
Live video can be magnified during surveillance.
Images become coarser during zooming.
2 Move the zoom frame to the area to be enlarged.
1 Turn the J-dial to move the frame horizontally.
2 Turn the S-dial clockwise, and then turn the
J-dial to move the frame vertically.
3 Turn the S-dial clockwise.
The area enclosed by the zoom frame is enlarged by a
factor of 2.
4 Press the ZOOM button to cancel the zoom
function.
If video is recorded from a number of cameras, the recorded
videos can be played back in a quad-screen format.
1 Press the QUAD button during playback.
Videos recorded from camera numbers 1~4 are
displayed in quad-screen format.
2 Press the QUAD button repeatedly.
The monitor display switches quad screen at the time.
Press the camera selection button to return to
full-screen display.
If video is recorded from a number of cameras, the recorded
videos can be played back in a multi-screen format.
Press the MULTI button during playback.
Videos recorded from camera numbers 1~6 are displayed in
multi-6 format.
Press the camera selection button to return to full-screen
display.
☞
Refer to P72 for information about rearranging the
position of the screens.

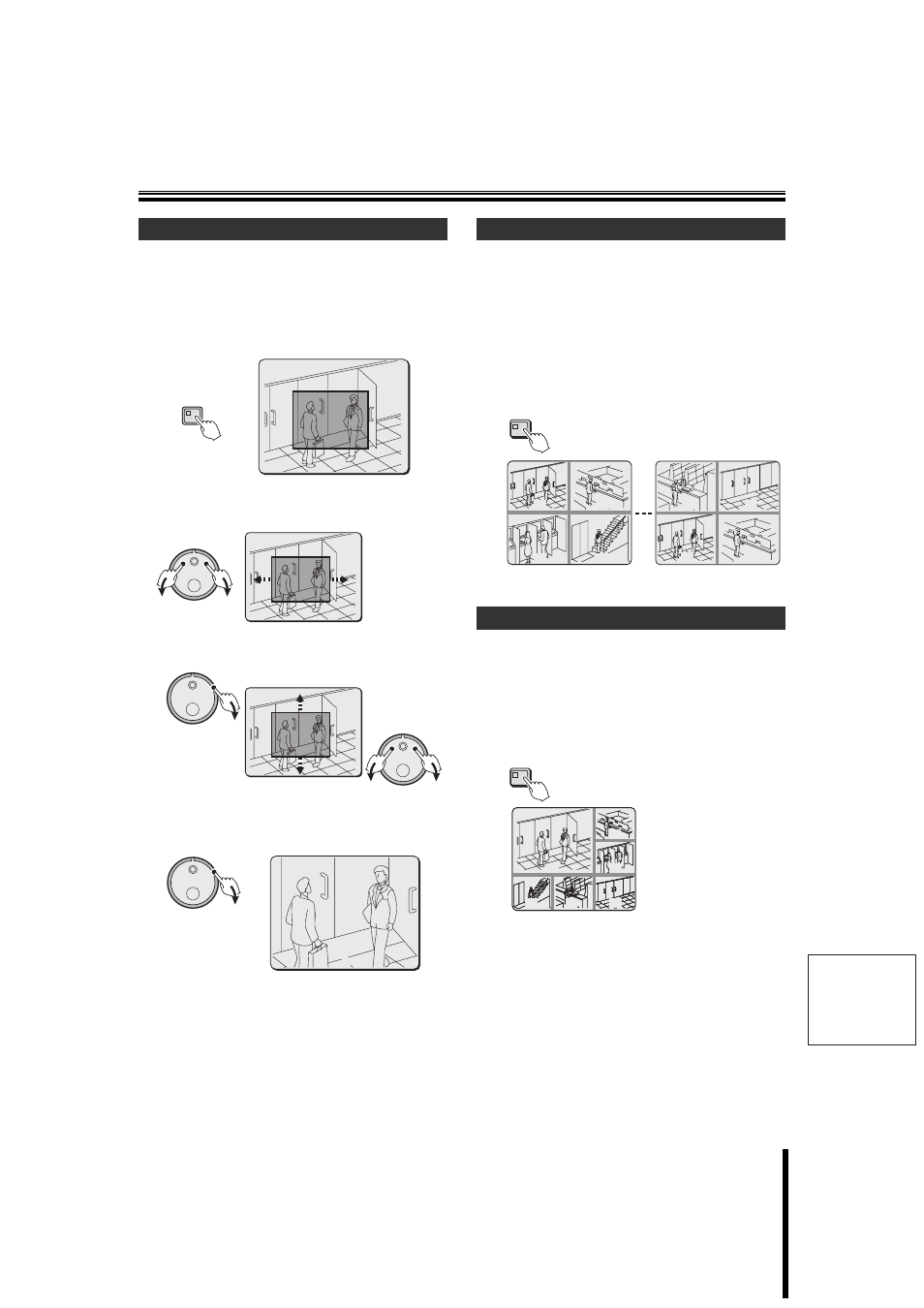

Enlarged viewing
ZOOM
02
Quad-screen viewing
Multi-screen viewing
02 01
04 03
QUAD
06 05
02 01
MULTI
01
02
03
04 04 05 06 05 06
