E68
AC ADAPTER AA-P700
ON
OFF
POWER
AA-P700
AC
DC IN
KY-F70
CAMERA
DIGITAL
C-MOUNT
KY-F70B

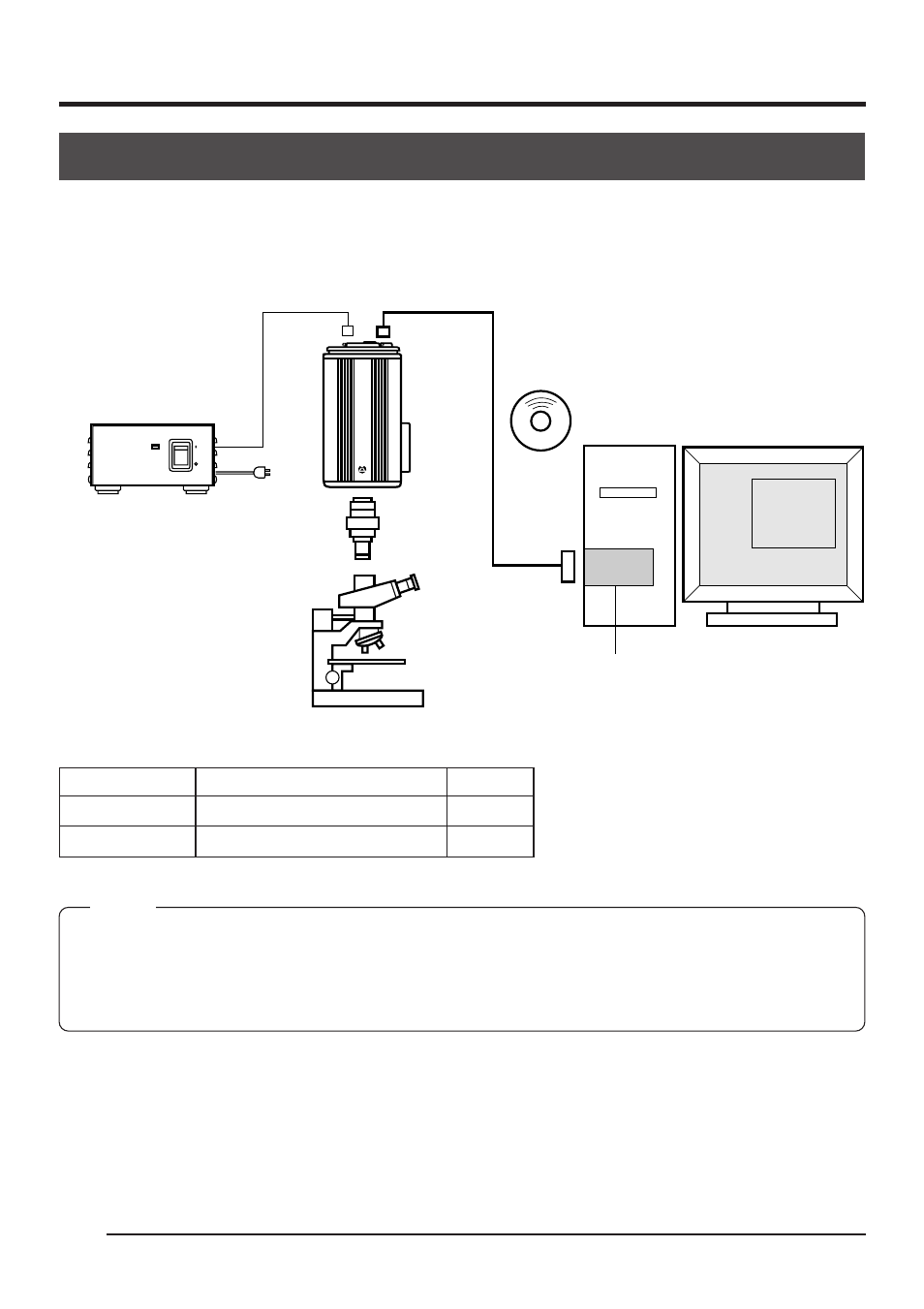

Capturing images using the image capture board
By employing a capture board, the SXGA size image from the camera can be displayed directly
on the PC screen. This enables capturing of images while observing the camera images or still
pictures on the display monitor of the PC.
7. Connecting to a PC (continued)
MEMO
• To display the entire image (1360
× 1024 pixels) of the camera's output video on the PC monitor, the
PC's video circuit and the PC monitor's resolution must be higher than this (1600
× 1200 pixels, etc.).
• In this system, use with the camera set to the SXGA mode. (
੬ page 24)
• Also refer to the instruction manual for the capture board.
AC adapter
Capture board
Matrox Meteor 2-MC/4
PC
Microscope
adapter
SCSI board
Exclusive software
Name Designation Remark
Capture board Meteor 2-MC/4 MATROX
Software Intellicam (Provided with MIL-Lite) MATROX
Items to be prepared
Capture
board
SCSI-2
Cable
