Part names and their functions

1. Introduction (continued)

³ Lens mount

Although the lens mount conforms to the
type C mount lens, there are restrictions
on the lenses that can be used.
Mounting the lens (

੬ page 17)

· Camera mounting bracket

Although the mounting bracket is mounted
on the bottom of the camera when shipped,
the bracket can also be mounted on the
top of the camera.
Mounting the camera (

੬ page 22)

» Locking screws for the camera

mounting bracket
(M2.6

× 6mm, 3 units)

CAUTION

Always use the attached screws. Using screws
that exceed 6mm may result in malfunction of
the unit.

¿ Screw holes for mounting the

camera (1/4-inch)

Used when mounting the camera to a fixer
or rotating platform.

´ Lithium battery compartment

Used to compartment the lithium battery
for time and date backup. The lithium bat-
tery is not installed when shipped.
Please install the attached lithium battery
(CR2025) before use.
Inserting the lithium battery (

੬ page 16)

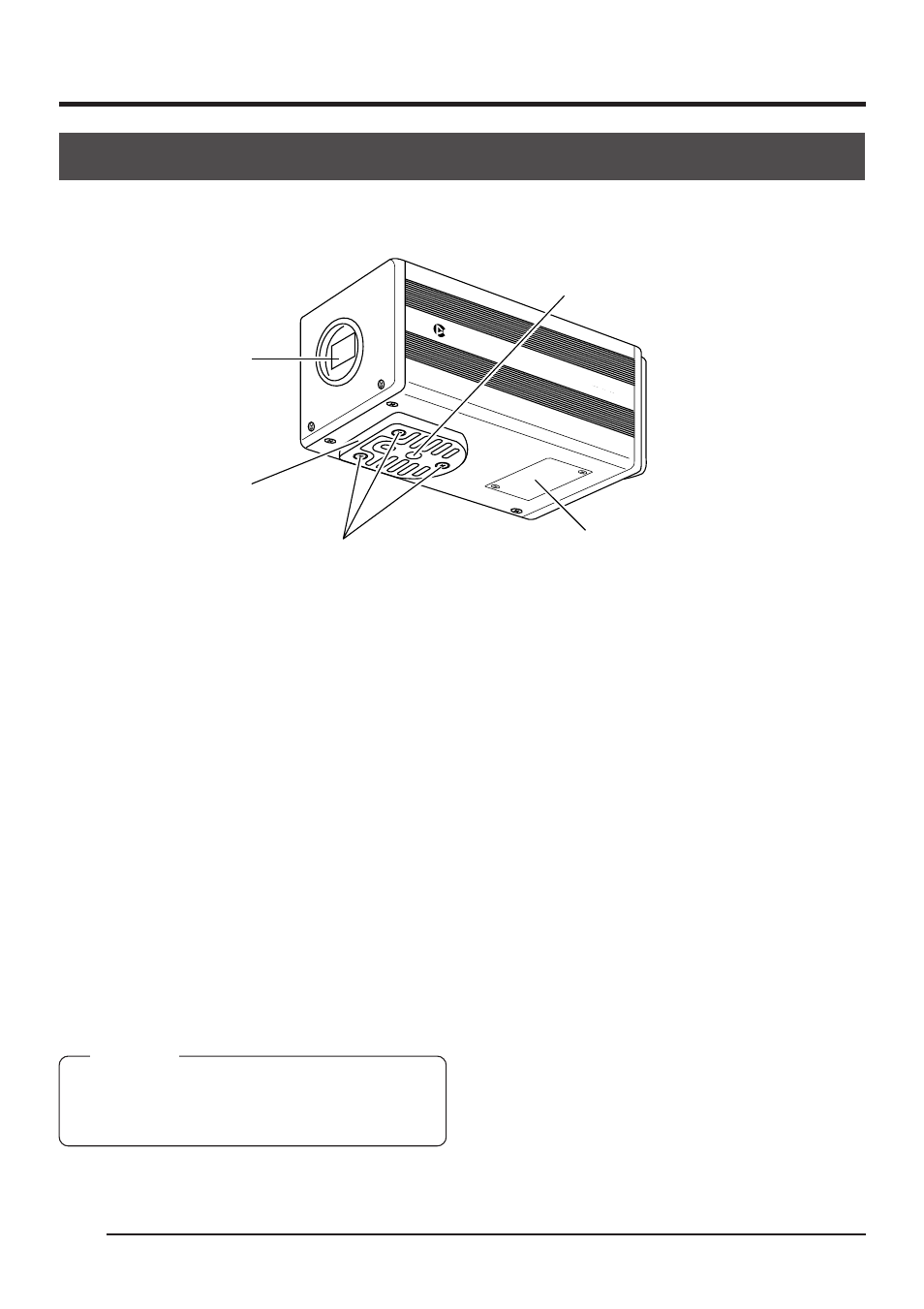

[Front and bottom]
