• Be sure to terminate the last device on the SCSI bus.

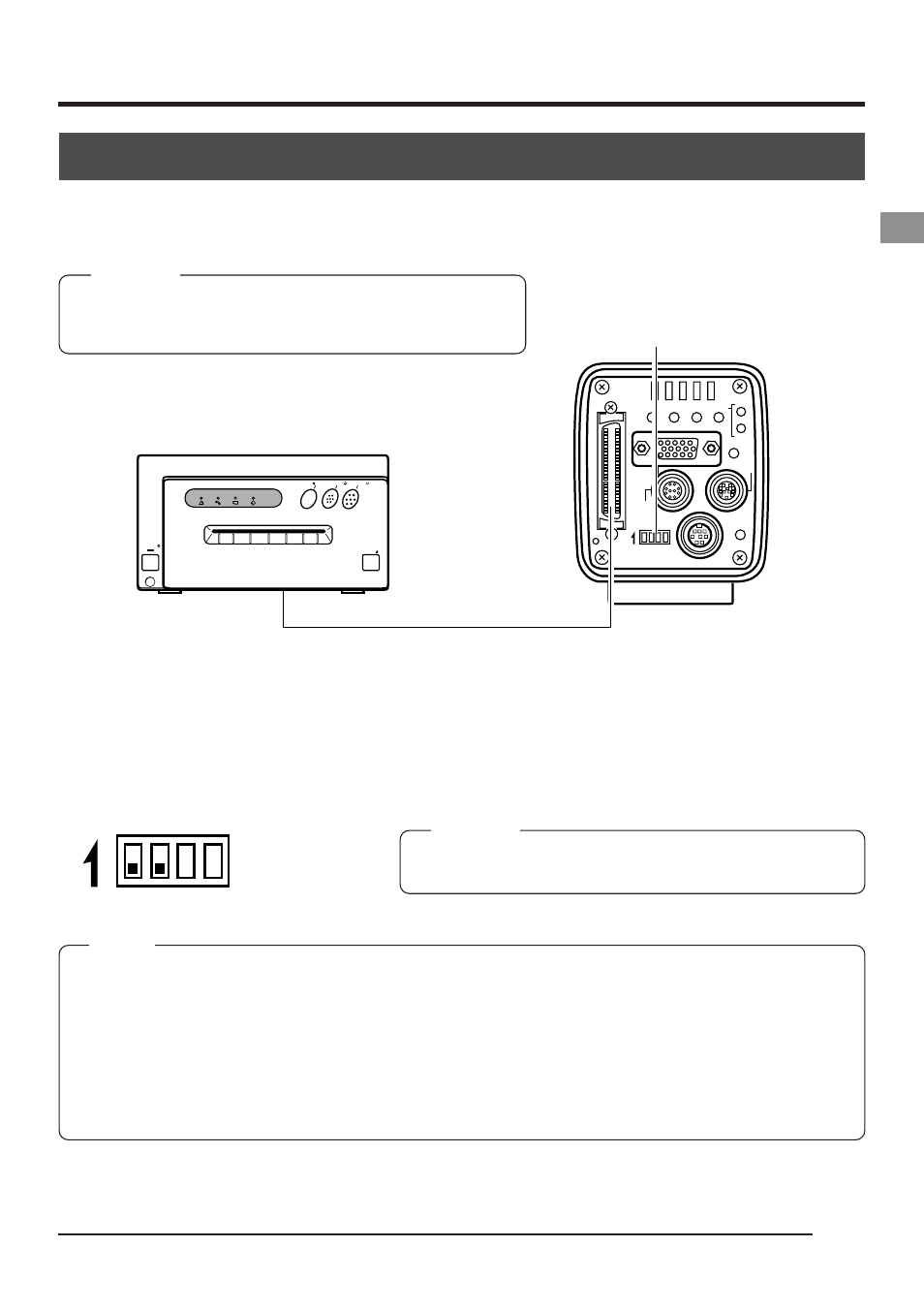

When directly connecting the main unit to a printer, set the dip switches on the rear of the main
unit as shown below.
MEMO
• Turn on the camera power after turning on the printer power.
• Connecting two or more printers at the same time is not possible.
• The image data outputted to a printer will be 1312
× 1024 pixels, regardless whether the mode is
VGA or SXGA, or whether the VGA mode is set to FINE or DRAFT.
• The maximum allowed length of the SCSI cable is 3m.
• When connecting an MO/Zip ® drive to a PC, separate setting of the SCSI ID is required.
• It is not possible to simultaneously output the image data to a printer and MO/Zip ® drive.
SEE INSTRUCTION MANUAL
POWER
DC IN REMOTE
MONITOR
LENS
FREEZE
PLAY
SET DOWN
AW/SEL SEND
SCSI
UP MENU
MODE
REC
ON 1 2 3 4
POWER
ALARM SHEET PAPER DATA
OPEN
CP700DSA MITSUBISHI
ONLINE COPY & CUT PAPER FEED ]
ON 1 2 3 4
(ID : 7) Set the ID of the printer side to other than 7.
Dip switches
SCSI terminal
CAUTION
Connecting a printer
It is possible to directly output image data stored in the main unit memory to a printer.
(
੬ page 39 Outputting images from the memory to a printer)
Use the following printer.
Mitsubishi: CP-700DSU/E, CP-770DW, CP-800DW
Before connecting, make sure that the power of all sys-
tems are turned off. Connecting with the power turned on
may result in malfunction.
CAUTION
