E36

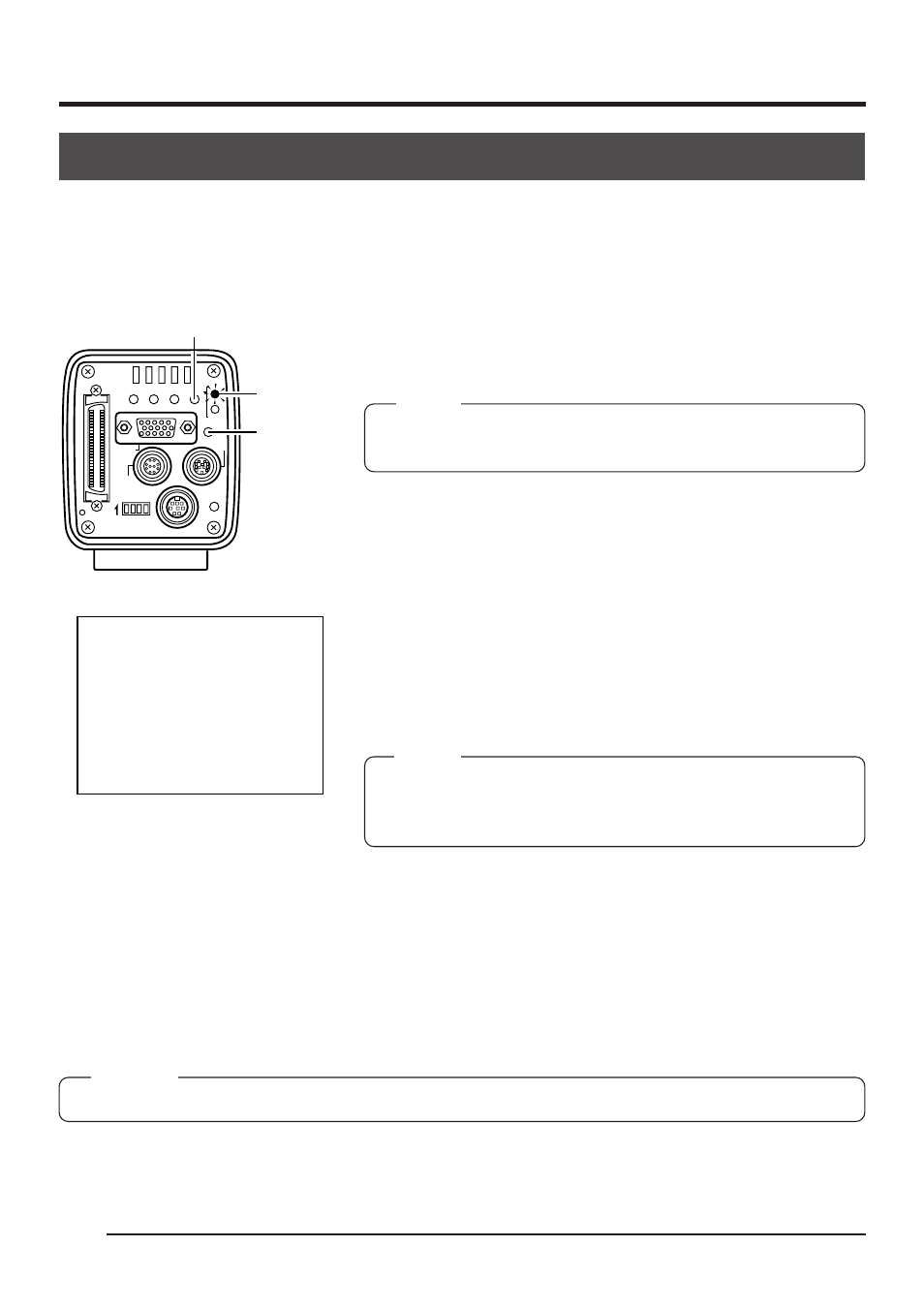

Recording images to the main unit memory
4. Basic operations
SEE INSTRUCTION MANUAL
POWER
DC IN REMOTE
MONITOR LENS
FREEZE
PLAY
SET DOWN
AW/SEL SEND
SCSI
UP MENU
MODE
REC
ON 1 2 3 4
MODE
FREEZE
REC lamp
FREEZE display
ZE FREE
The camera’s built-in memory has storage capacity for 5 images in the VGA mode and for 4
images in the SXGA mode. The image size to be recorded is 1360
× 1024 pixels in both modes
of SXGA and VGA. When the memory is full, a new image sent to memory will replace the oldest
of the stored images.
1.
Press the MODE button to enter the REC mode.
The REC lamp will light. (
੬ page 10 MODE button)
MEMO
The unit will automatically enter the REC mode when the power
is turned on.
2.
Press the FREEZE button.
An image output via the MONITOR terminal will be
grabbed and stored in the camera’s memory.
At this time the REC LED will flash and FREEZE will
appear on the screen. To stop this message appearing,
set FRZ DISPLAY to OFF. (
੬ page 59)
3.
Cancel FREEZE
Press the FREEZE button a second time to cancel the
still image.
MEMO
It is possible to set the unit so that the still image is automati-
cally cancelled. Set CANCEL in the FREEZE screen to AUTO
(1 s), (3 s), (5 s). (
੬ Page 55)
4.
Output the image to an MO drive or printer, as neces-
sary.
(
੬ Page 38 Saving images from the memory to an MO/
Zip ® disk )
(
੬ Page 39 Outputting images from the memory to a
printer )
CAUTION
Images stored in memory will be deleted when the power is turned off.
