E66
7. Connecting to a PC
Capturing images using the provided software (KY-SCSI)
The provided software (KY-SCSI) is an application for capturing images on a PC. Using this
application, the image can be captured using just one SCSI cable while camera operations
(freeze, white balance adjustment, etc.) can also be performed from the PC. Both preview and
capturing can be performed using just one monitor. When connecting the hardware, you will
have to purchase a separate SCSI board and SCSI cable.
MEMO
• As the KY-SCSI utilizes the ASPI manager it will not operate if a SCSI board not compatible with
ASPI is used. (Recommended SCSI board: AHA-2940AU (Adaptec Inc.)
• Connect the camera and SCSI board using a one-to-one connection. Correct operation may be
impeded if connected with other equipment in a daisy chain.
(To use other SCSI equipment at the same time, use a separate SCSI board.)
• Set the SCSI ID to a number other than that of the SCSI board (other than 7).
• Set the monitor output mode to the SXGA mode. (
੬ page 24)
• For details read the Readme.txt file on the floppy disk.

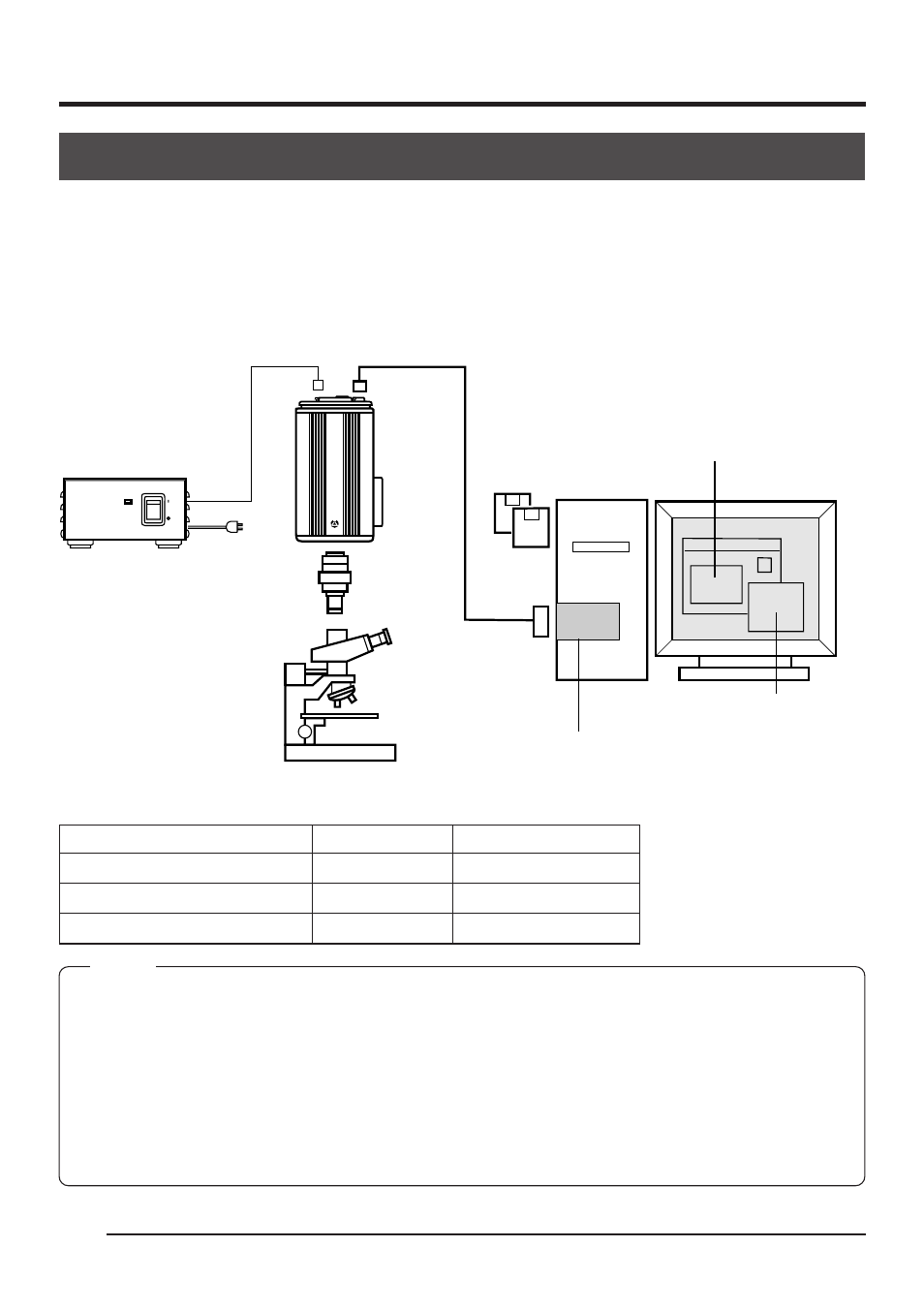

AC ADAPTER AA-P700
ON
OFF
POWER
AA-P700
AC
DC IN
KY-F70
CAMERA
DIGITAL
C-MOUNT
KY-SCSI
KY-F70B
PC operating system
Windows® 95B (OSR2)/98/NT4.0
(Does not work under Windows® 95A.)
AC adapter
SCSI port
Microscope
adapter
Result of capturing
SCSI-2 cable
(Within 3 m)
Preview window
The compatible SCSI board is ADAPTEC AHA-2940AU.
PC
SCSI
card
Name Designation Remark
SCSI board AHA-2940AU ADAPTEC Inc.
50-pin HD SCSI cable (male - male) ——— Within 3 m
Image software KY-SCSI software Provided with the camera
Items to be prepared
