E20
• Be sure to terminate the last device on the SCSI bus.

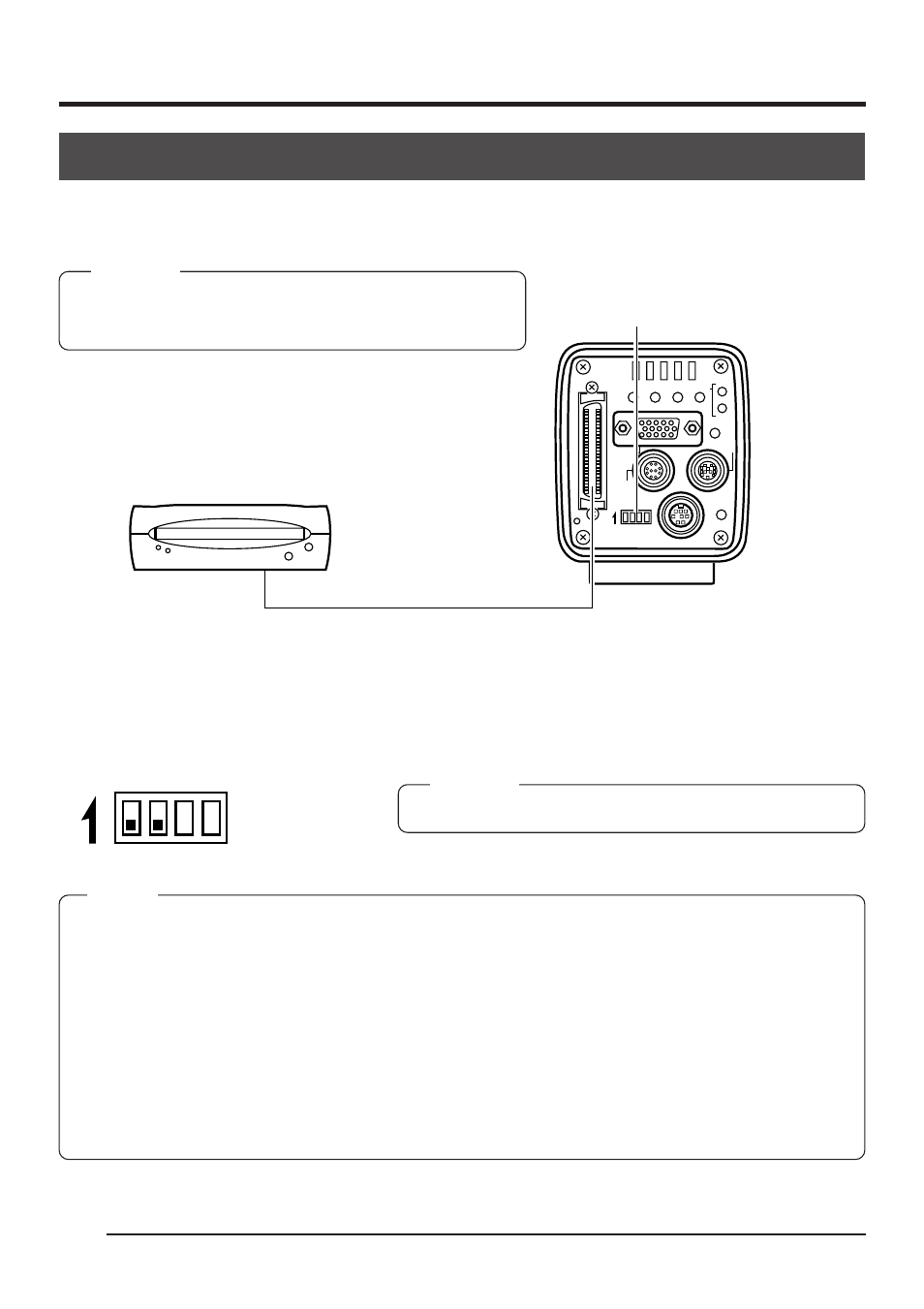

To directly connect the MO drive to the main unit, set the dip switches on the rear of the main unit
as shown below.
SEE INSTRUCTION MANUAL
POWER
DC IN REMOTE
MONITOR LENS
FREEZE
PLAY
SET DOWN
AW/SEL SEND
SCSI
UP MENU
MODE
REC
ON 1 2 3 4
ON 1 2 3 4
(ID : 7)
Set the ID of the MO drive side to other than 7.
Dip switches
SCSI terminal
CAUTION
MEMO
• Turn on the camera power after turning on the MO/Zip ® drive power. Furthermore, reinsert the cam-
era power when turning the MO/Zip ® drive power off.
• Use a formatted DOS/V disk.
• Connecting two or more MO/Zip ® drives at the same time is not possible.
Neither is it possible to connect an MO drive and a Zip ® drive at the same time.
• The image data outputted to an MO/Zip ® drive unit will be 1360
× 1024 pixels, regardless whether the
mode is VGA or SXGA, or whether the VGA mode is set to FINE or DRAFT.
• The maximum allowed length of the SCSI cable is 3m.
• It is not possible to simultaneously output the image data to a printer and MO/Zip ® drive.
• The image data will be save as uncompressed TIF files (one file approx. 4 megabytes).
Recommended Zip ® drive:
iomega Zip ® 250 (for SCSI
connection)
Connecting an MO/Zip ® drive
2. Before recording (continued)
Before connecting, make sure that the power of all sys-
tems are turned off. Connecting with the power turned on
may result in malfunction.
CAUTION
It is possible to output image data stored in the main unit memory to an MO drive or a Zip ® drive.
(
੬ Page 38 Saving images from the memory to an MO/Zip
® disk)
The MO/Zip ® drive must be equipped with a terminator
power supply.
