E19

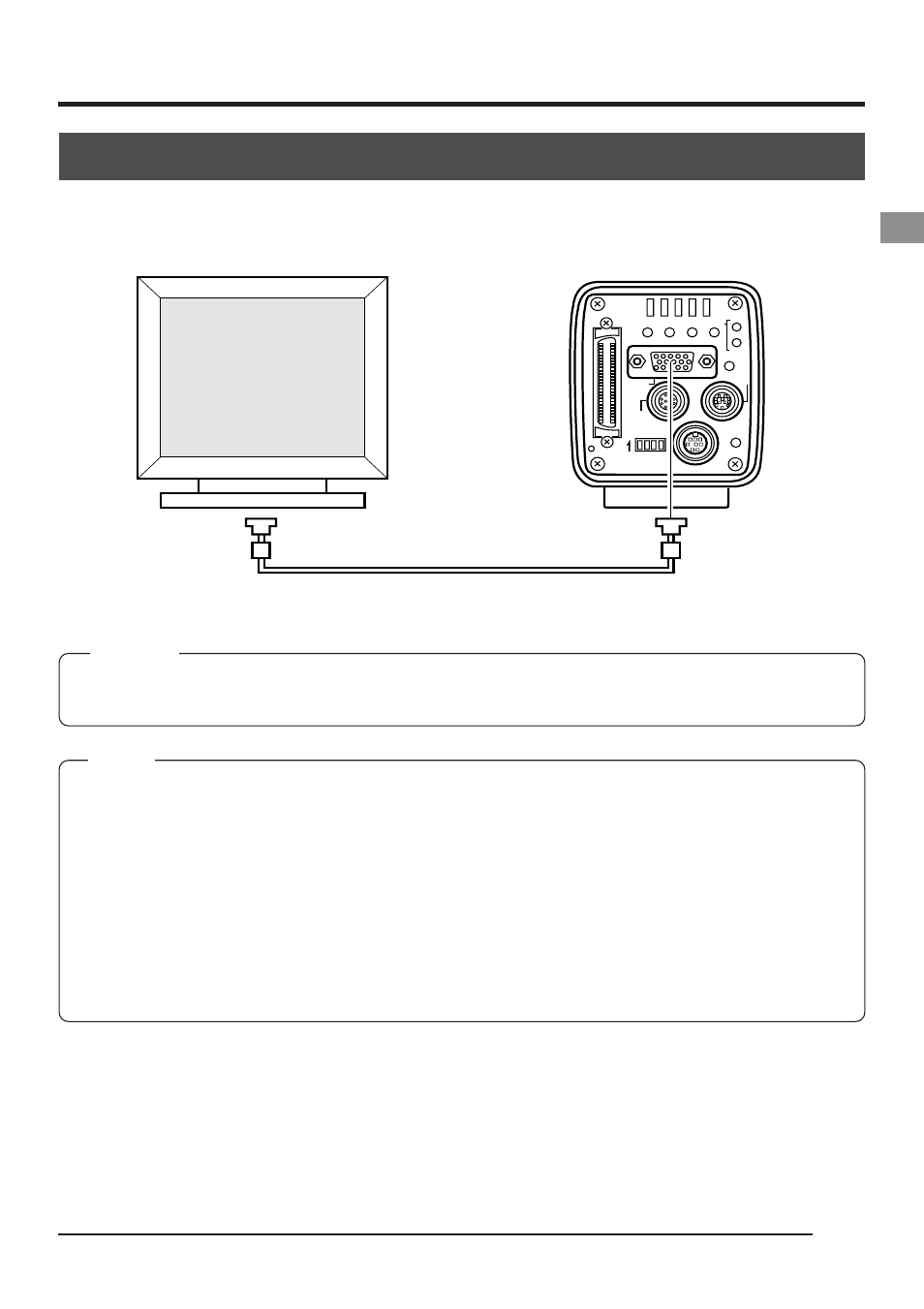

Connecting a monitor

Connect the PC monitor (VGA) to the MONITOR terminal on the rear of the main unit.

SEE INSTRUCTION MANUAL

POWER

DC IN

REMOTE

MONITOR

LENS

FREEZE

PLAY

SET

DOWN

AW/SEL

SEND

SCSI

UP

MENU

MODE

REC

ON 1 2 3 4

MONITOR terminal

MEMO

• The monitor cable must use clump filter for both ends to minimize emission of unwanted electrical

waves. (Commercially available VGA video cable is recommended)

• For the pin assignment, see page 13 Pin configuration of connectors

• Monitor conditions:

fH: 31.47 kHz

fV: 59.94 Hz

Sync signal: H/V separate, TTL negative polarity

• Dip switch setting (

੬ page 24)

VGA mode (set dip switch No. 3 to OFF)

Do not connect the unit to a VGA monitor directly when in the SXGA mode (dip switch No. 3 ON)

CAUTION

• Before connecting, make sure that the power of all systems are turned off. Connecting with the power

turned on may result in malfunction.
